Wega Atlas User Manual

espresso coffee machine - electrical diagrams
ELE
16
R
English

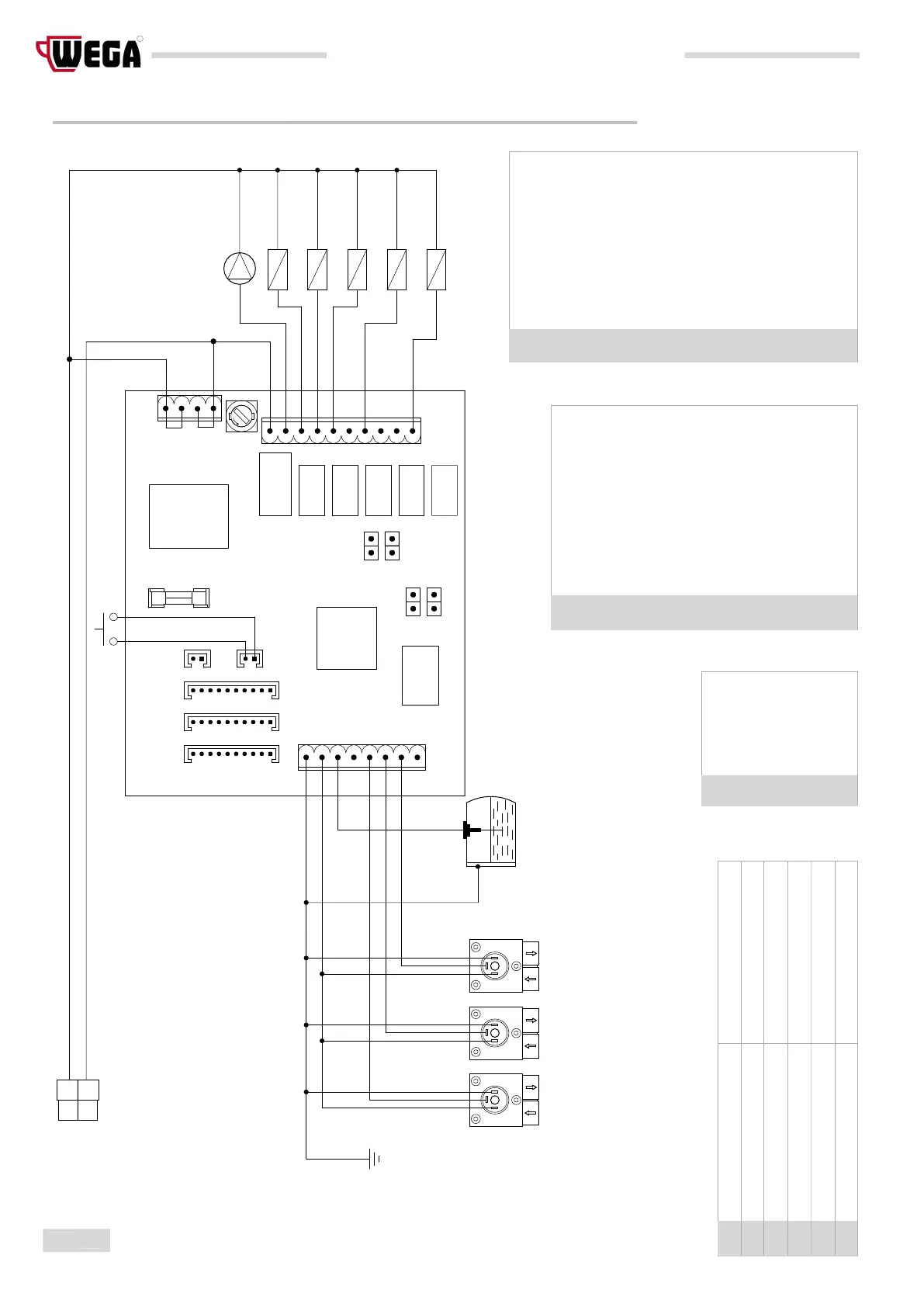

6.07 Electrical diagram code WY18090030-WY18090031 *GIEMME*
CAL Boiler CT Power supply connector CV1 Volumetric counter GR1 CV2 Volumetric counter GR2 CV3 Volumetric counter GR3 EV1 Solenoid valve GR1 EV2 Solenoid valve GR2 EV3 Solenoid valve GR3 EVC Boiler filling solenoid valve EVT Tea solenoid valve F1 Motor pump fuse (6.3A) F2 Inlets fuse (500mA) IC3 Eprom MP Pump
EVT EVC EV3 MP EV2
CN3
CT
CN1
F2
JP7
JP2
EV1
TRF1
JP6
JP4
JP3JP5
PLT
F1
CV1
+
O
CV2
-
+
O
-
CV3
+
O
-
CN4
IC3
RL1
RL2 RL3 RL4 RL5
RL6
CAL
SL
CN2
CN11
CN10
CN9
RO BL VE VE VE VE VE RO BI
NE MA MA MA BL NE
GV
RO BI
CN1 Service outputs connector CN2 Power supply connector CN3 Low voltage power supply CN4 Programming connector CN9 Push button panel connector GR3 CN10 Push button panel connector GR2
CN11 Push button panel connector GR1 PLT Tea push button RL1 Tea solenoid valve relay RL2 Solenoid valve relay GR1 RL3 Boiler solenoid valve relay RL4 Solenoid valve relay GR3 RL5 Solenoid valve relay GR2 RL6 Pump relay SL Boiler level probe TRF1 Transformer
JP2 JP3 JP4 JP5 JP6 JP7
Pre-infusion enabled
Dose programming enabled
Boiler filling with pump
Tea key enabled
Tea delivery with pump
STOP key continuation enabled
Pre-infusion disabled
Dose programming disabled
Boiler filling without pump
Tea key disabled
Tea delivery without pump
STOP key continuation enabled
JUMPER INSERTED JUMPER NOT INSERTED
BI White BL Blue GV Yellow-green MA Brown NE Black RO Red VE Green

Wega Atlas Specifications

General

Boiler Material	Copper
Water Level Indicator	Yes
Type	Espresso Machine
Material	Stainless Steel
Frequency	50/60 Hz
