Wega Atlas User Manual

espresso coffee machine - electrical diagrams
ELE
14
R
English

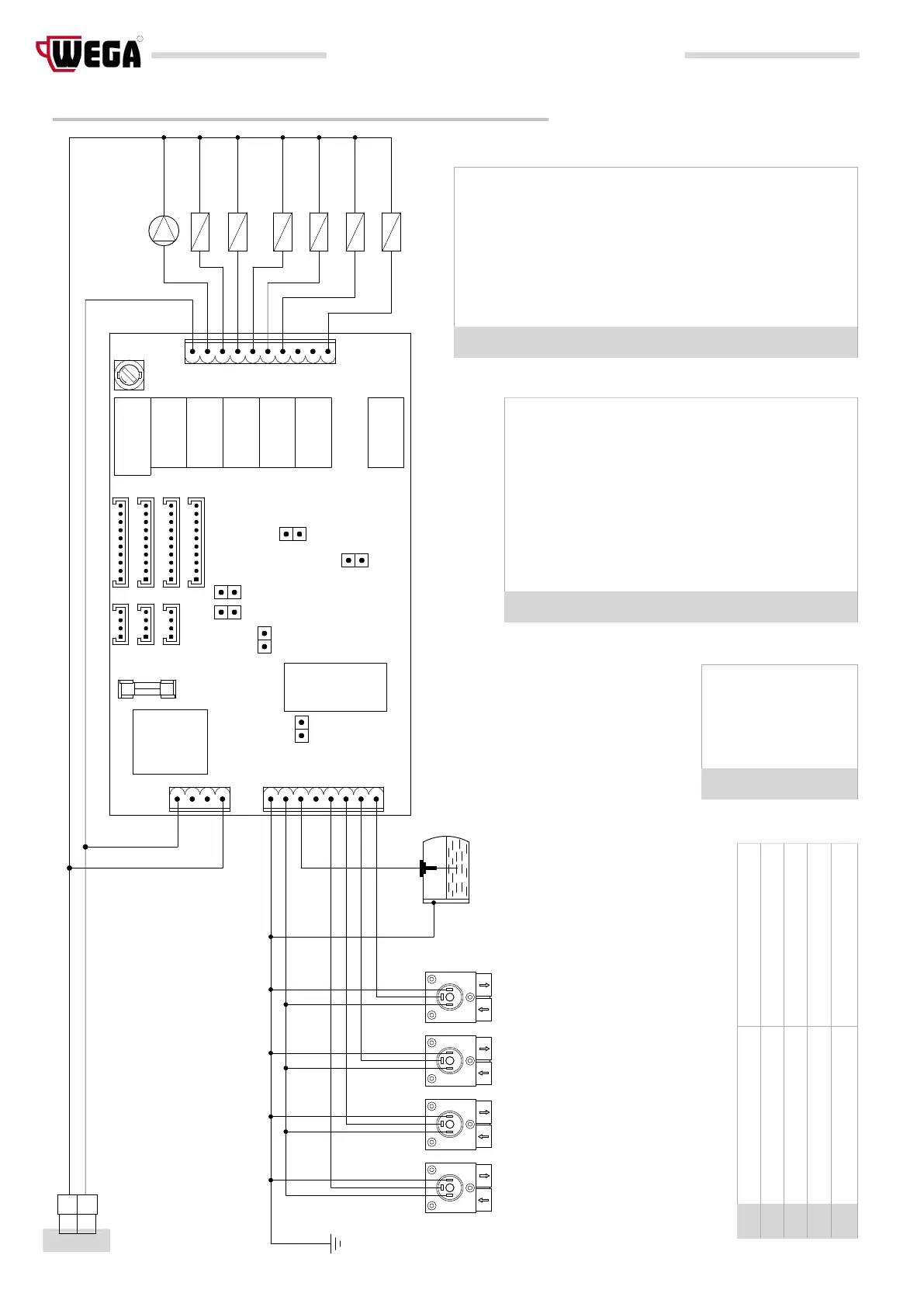

6.05 Electrical diagram code WY18090016-WY18090017
CAL Boiler CT Power supply connector CV1 Volumetric counter GR1 CV2 Volumetric counter GR2 CV3 Volumetric counter GR3 CV4 Volumetric counter GR4 EV1 Solenoid valve GR1 EV2 Solenoid valve GR2 EV3 Solenoid valve GR3 EV4 Solenoid valve GR4 EVC Boiler filling solenoid valve EVT Tea solenoid valve F1 Inlets fuse (500mA) F2 Motor pump fuse (6,3A) IC2 Eprom MP Pump
P1 Push button panel connector GR1 P2 Push button panel connector GR2 P3 Push button panel connector GR3 P4 Push button panel connector GR4 P5 Tea dose P6 Not managed P7 Serial connection P9 Service outputs connector P10 Low voltage power supply P11 Power supply RL1 Pump relay RL2 Solenoid valve relay GR2 RL3 Solenoid valve relay GR3 RL4 Boiler solenoid valve relay RL5 Solenoid valve relay GR4 RL6 Solenoid valve relay GR1 RL8 Tea solenoid valve relay SL Boiler level probe TRF Transformer
JP1 JP2 JP3 JP4 JP5
Serial connection enabled
Pre-infusion enabled
Dose programming enabled
Tea delivery with pump
Tea key enabled
Serial connection disabled
Pre-infusion disabled
Dose programming disabled
Tea delivery without pump
Tea key disabled
JUMPER INSERTED JUMPER NOT INSERTED
EV1 EVT EV4 EVC EV3 MP EV2
P10
P11
P9
F1
JP4
JP6
JP3
JP2
JP1
F2
JP5
RL1 RL2 RL3 RL4 RL5 RL6 RL8
P1 P2 P3 P4
P6 P5 P7
IC2
O
CV3CV1
+
O
-
CV2
+
O
-
+
CV4
+
-
O
-
CT
TR
SL
CAL
RO BL VE VE VE VE VE VE
NE BL N
E
MA MA MA MA
RO BI
GV
BI White BL Blue GV Yellow-green MA Brown NE Black RO Red VE Green

Wega Atlas Specifications

General

Boiler Material	Copper
Water Level Indicator	Yes
Type	Espresso Machine
Material	Stainless Steel
Frequency	50/60 Hz
