Maintenance

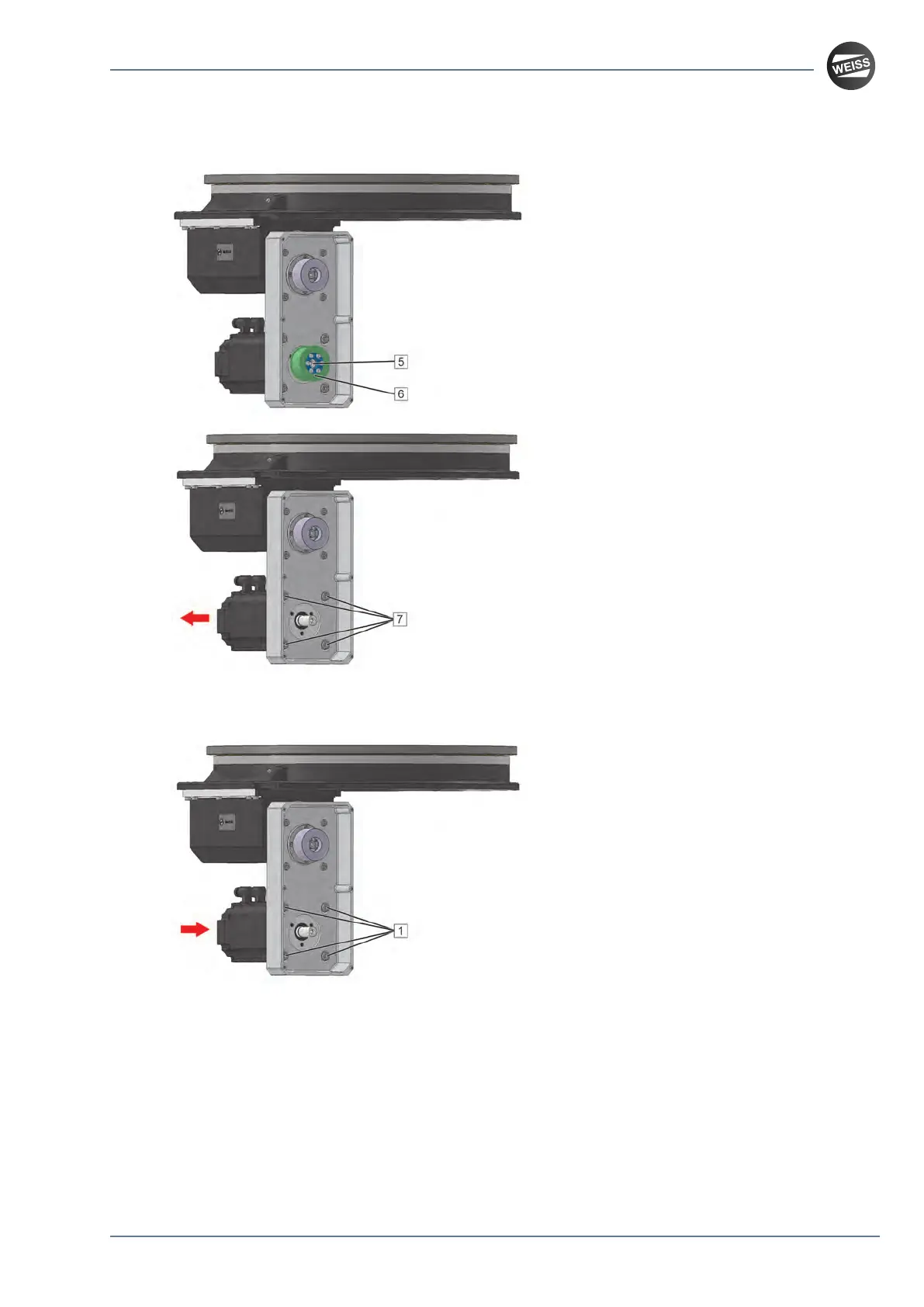

6. Remove the screws [5] of the pulley.
7. Pull the toothed belt pulley (motor) [6] off of
the motor shaft.
8. Remove the four screws [7] of the motor
flange and remove the motor.
Mounting the motor
1. Fit the motor with the required position of the
electrical connections.
2. Slightly tighten the four screws [1] of the
motor flange.
3. Grease the motor shaft.
