Rotary indexing ring TR
Maintenance

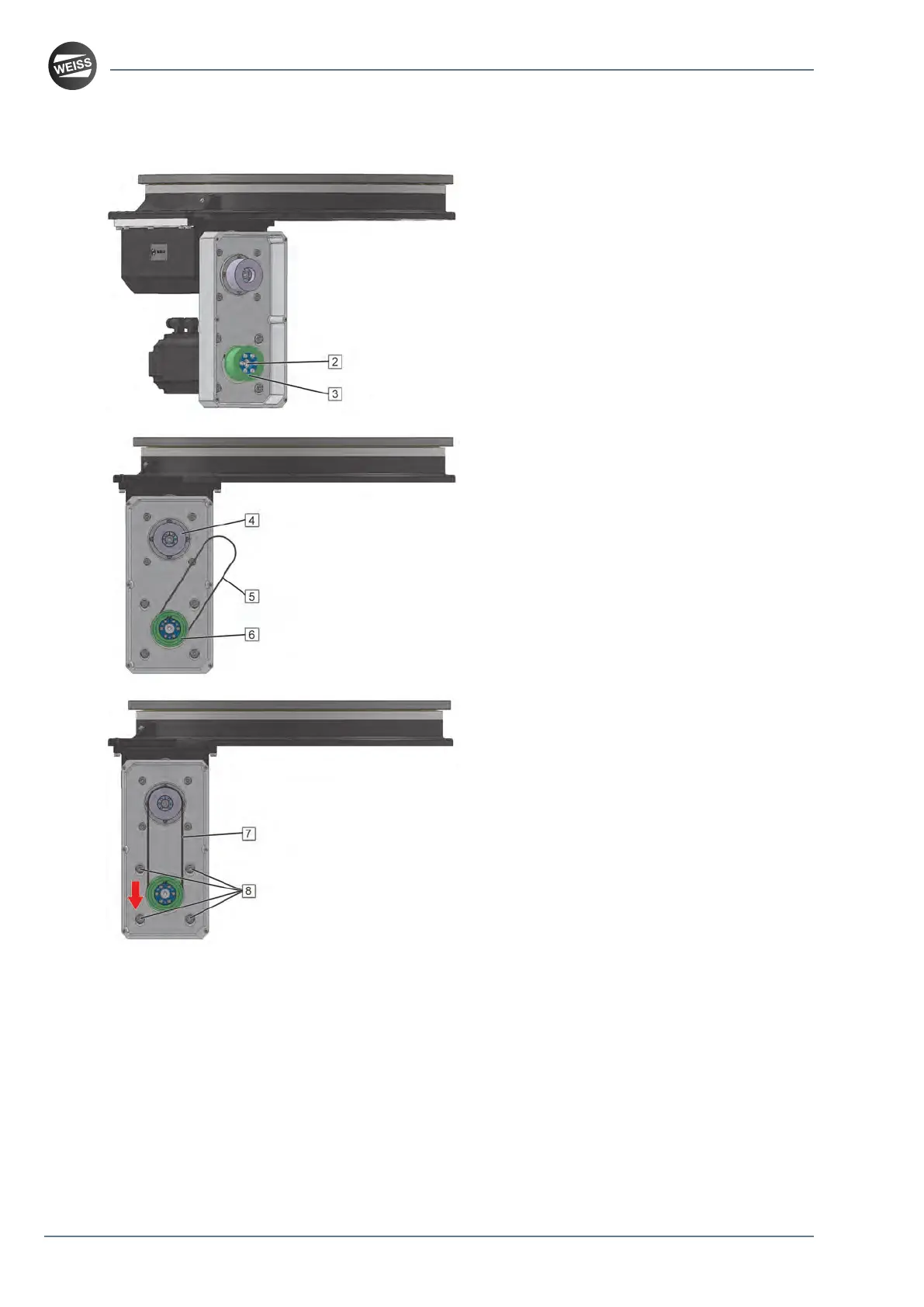

4. Push the toothed belt pulley (motor) [3] onto
the motor shaft all the way to the stop. If you
encounter resistance, use a plastic hammer.
5. Fit the disk onto the toothed belt pulley
(motor) [3] and fasten it with the screws [2].
6. First, fit the toothed belt [5] around the
toothed belt pulley (motor) [6].
7. Then, fit the toothed belt [5] around the
toothed belt pulley (gear) [4].
8. Tension the toothed belt [7] to the correct belt
tension by moving the motor in the elongated
holes and tighten the four screws [8] of the
motor flange.
9. Verify correct tension of the toothed belt; if
necessary, readjust the tension of the toothed
belt.
P
The toothed belt is correctly tensioned if
it can be manually twisted by - depending
on the length of the toothed belt - 45° to
90° along the longitudinal axis in the center
between the two pulleys.
P
Contact WEISS GmbH if you need the
frequency for adjusting the toothed belt with a
belt tension meter.
56 / 79
Mounting instructions_062019_4.0_en
