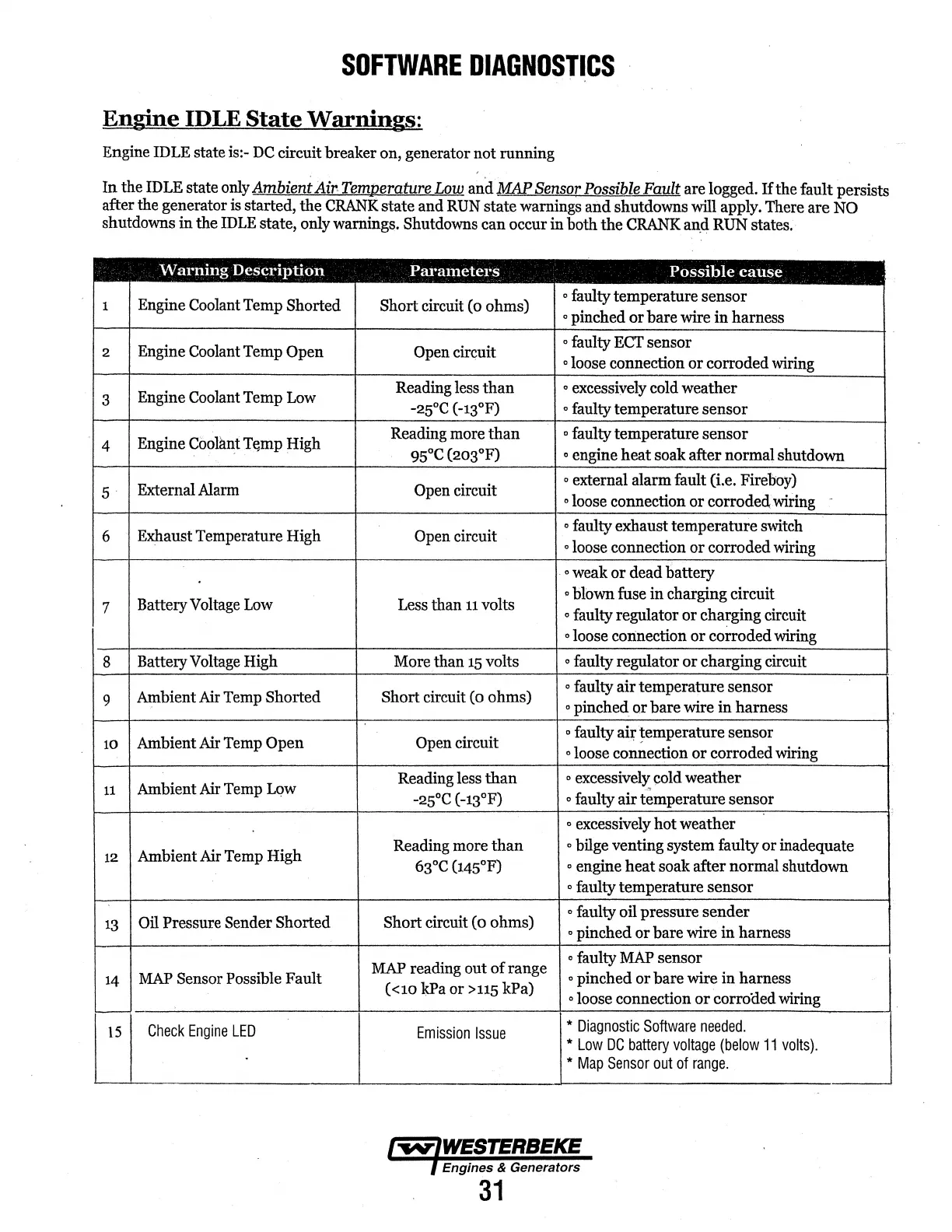

SOFTWARE DIAGNOST~CS
Engine IDLE State Warnings:
Engine IDLE state is:- DC circuit breaker on, generator not running
In the IDLE state only Ambient Air, Temperature Low and .MAP Sensor Possible Fault are logged. If the fault persists
after the generator is started,
the CRANK state and RUN state warnings and shutdowns will apply. There are NO
shutdowns in the IDLE state, only warnings. Shutdowns can occur in both the CRANK an.d RUN states.·
1 Engine Coolant Temp Shorted
Short circuit (o ohms)
o faulty temperature sensor
o pinched or bare wire in harness
2
Engine Coolant Temp Open
Open
circuit
o faulty ECT sensor
o loose connection or corroded wiring
3
Engine Coolant Temp Low
Reading less
than o excessiyely cold weather
-25°C (-13°F) o faulty temperature sensor
4
Engine
Coolant T~mp High
Reading more
than o faulty temperature sensor
95°C (203°F) o engine heat soak after normal shutdown
5
External Alarm Open circuit
o external alarm fault (i.e. Fireboy)
o loose connection or corroded, wiring
6
Exhaust Temperature High
Open circuit
o faulty exhaust temperature switch
o loose connection or corroded wiring
. o weak or dead
Battery Voltage Low Less than
11 volts
o blown fuse in charging circuit
7
o faulty regulator or charging circuit
0
loose connection or corroded wiring
8
Battery Voltage High
More than
15 volts
o faulty regulator or charging circuit
Ambient Air Temp Shorted
Short circuit (o ohms)
o faulty air temperature sensor
9
o pinched or bare wire in harness
10
Ambient Air Temp Open
Open circuit
• faulty~ ~emperature sensor
o loose connection or corroded wiring
Ambient Air Temp
Lqw
Reading less than
o excessively cold weather
11
-25°C (-13°F)
o faulty air temperature sensor
o excessively hot weather
Ambient Air Temp High
Reading more
than
o bilge venting system faulty or inadequate
12
63°C (145°F)
• engine heat soak after normal shutdown
o faulty temperature sensor
Oil Pressure Sender Shorted
Short circuit (o ohms)
o faulty oil pressure sender
13
or bare wire in harness
MAP reading out
of range
o faulty MAP sensor
14
MAP Sensor Possible Fault
o pinched or bare wire in harness
(
<10 IU>a or >115 kPa)
o loose connection or corroaed wiring
15
Check Engine LED
Emission Issue
* Diagnostic Software needed.
* Low DC battery voltage (below 11 volts).
* Map Sensor out of range.
Engines & Generators
31
