INSTALLATION AND MAINTENANCE MANUAL
E1 FAMILY
LICENSED & SPREAD SPECTRUM RADIOS
JUNE 2001
SECTION 2: PRODUCT DESCRIPTION PAGE 3-81
3.14.3.1 Diagnostics Port using RS-232
For RS-232 diagnostics connection to the Lynx radio, connect the serial device (modem, computer,
terminal) to the male 9-pin subminiature connector in accordance with Figure 3-23.

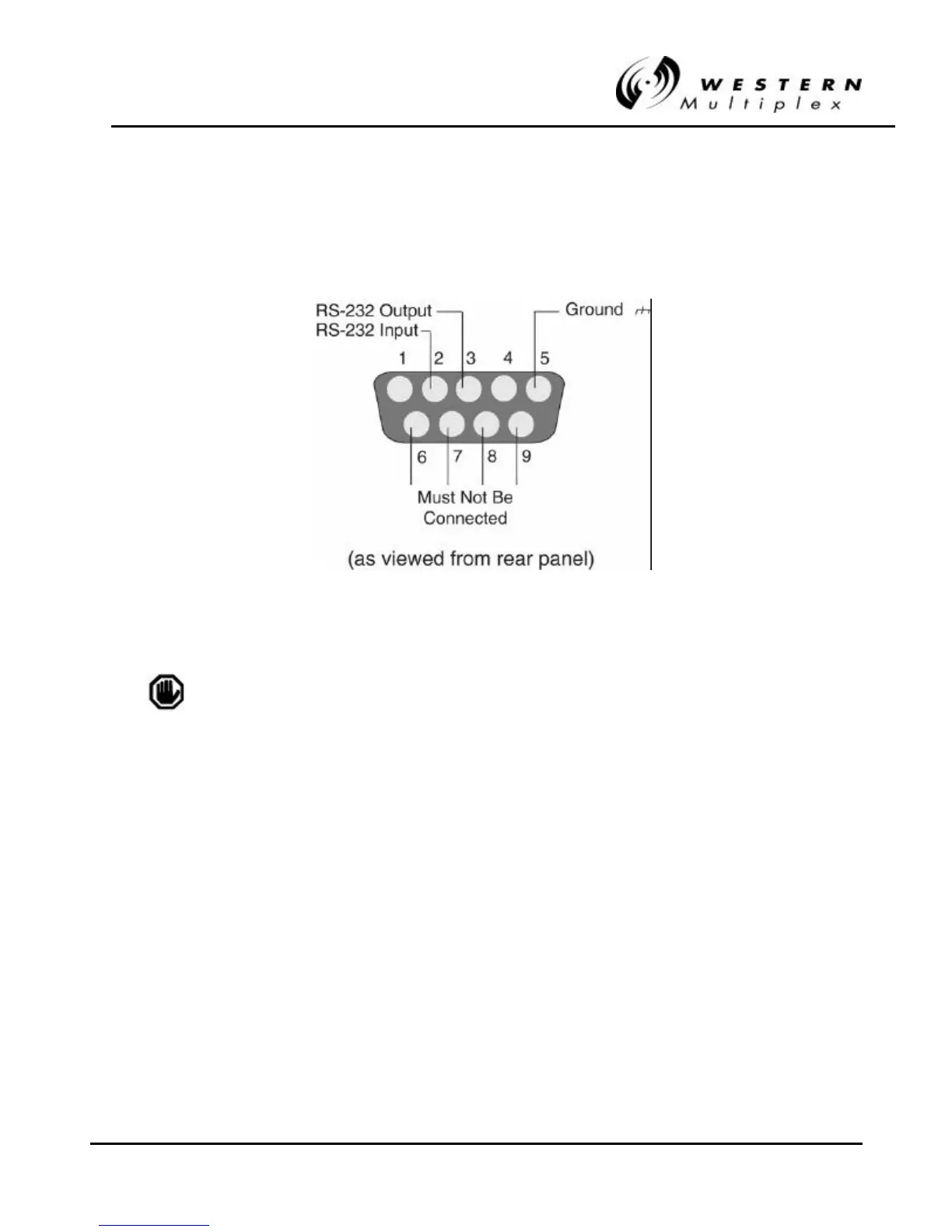

Figure 3Figure 3-- 23: RS23: RS-- 232 Diagnostic Port Connections232 Diagnostic Port Connections
Pins 6 through 9 must not be connected for RS-232
communications to operate properly.
