3.7.2 AC Power Connection
The optional AC power supply operates from any AC voltage 100V - 250V and 50 Hz or 60 Hz. The
AC supply is equipped with a mating connector that plugs directly into the Lynx radio and an AC
cord with a 3-pin AC plug. The AC cord color code is shown in Figure 3-9 in case users wish to
replace the AC plug supplied with a different type of plug.

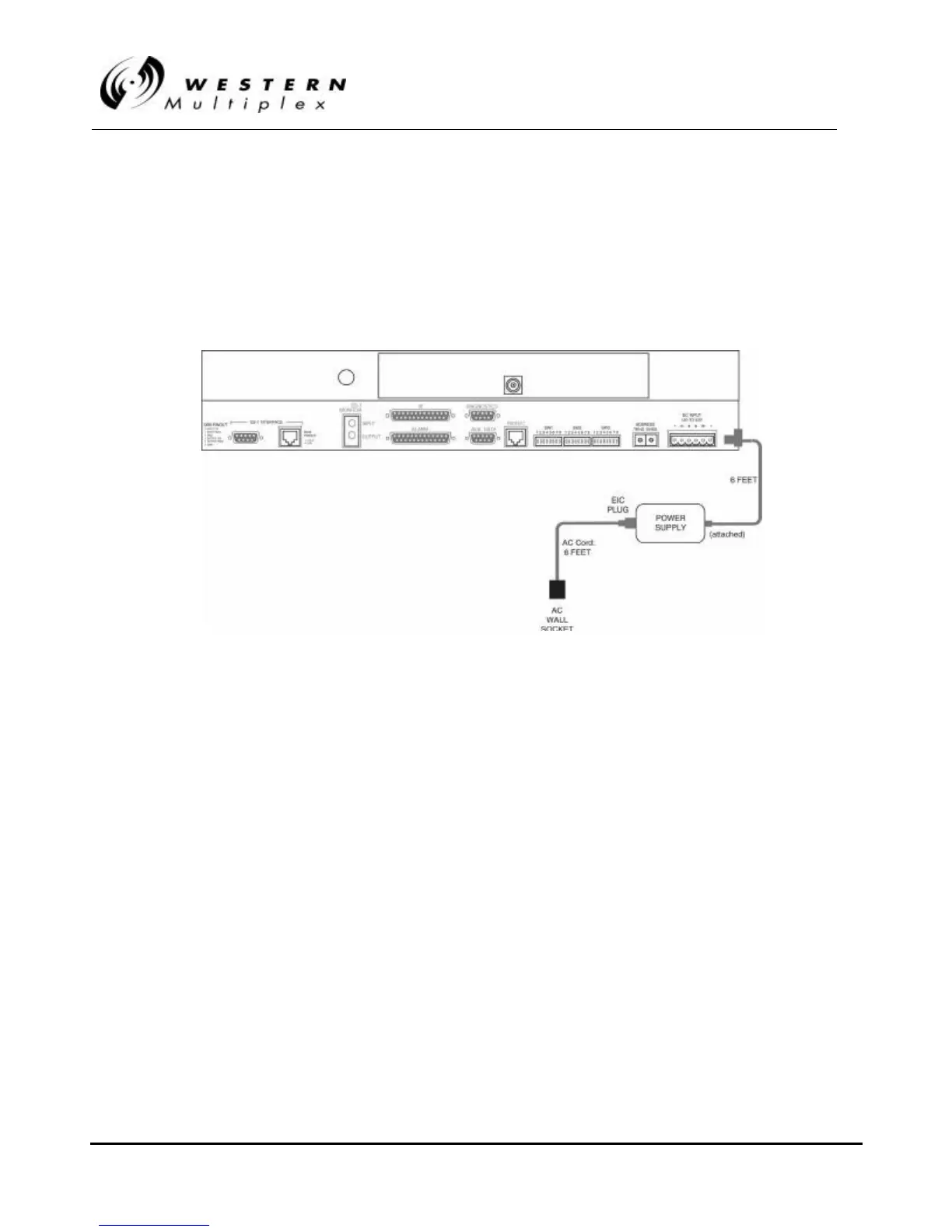

Figure 3Figure 3-- 9: AC Connection9: AC Connection
