INSTALLATION AND MAINTENANCE MANUAL
E1 FAMILY
LICENSED & SPREAD SPECTRUM RADIOS
JUNE 2001
SECTION 2: PRODUCT DESCRIPTION PAGE 3-39
3.5 Frequency Channel Plans
The Lynx system offers several non-overlapping channel plans for the different models of radio. This
channel plan arrangement allows users to implement Lynx systems in the proximity of other Lynx
radios (planned or unplanned), hub and repeater applications, and can be used to mitigate
interference. The channel plans are illustrated below in Figures 3-1 through 3-6. Section 4.2 and 4.3
describe how to change frequency channel assignments of a Lynx radio.

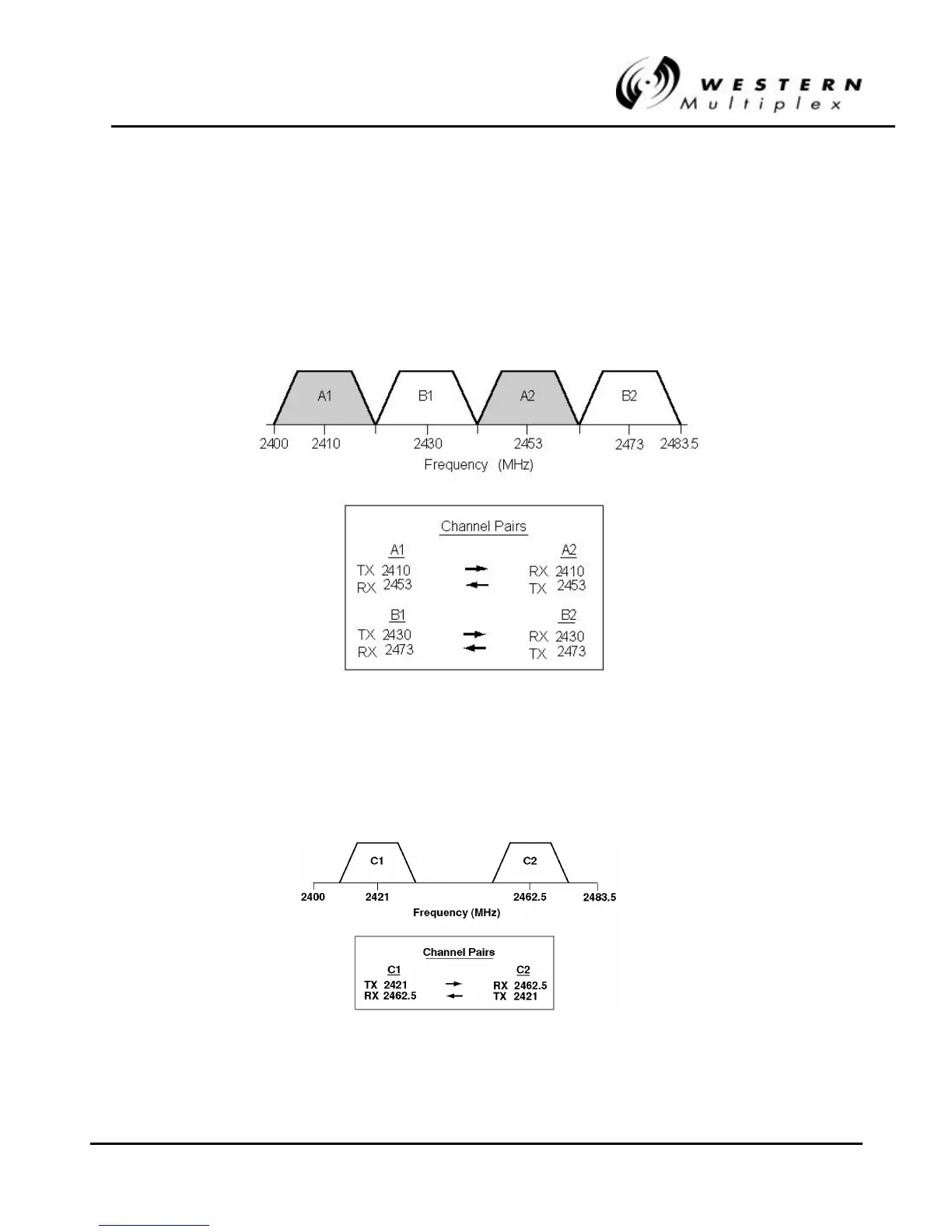

Figure 3Figure 3-- 1: Channel Plan, 2.4 GHz 1xE11: Channel Plan, 2.4 GHz 1xE1
Figure 3Figure 3-- 2: Custom Cha2: Custom Channel Plan, 2.4 GHz E1nnel Plan, 2.4 GHz E1
