INSTALLATION AND MAINTENANCE MANUAL
E1 FAMILY
LICENSED & SPREAD SPECTRUM RADIOS
JUNE 2001
SECTION 2: PRODUCT DESCRIPTION PAGE 2-19
2.4 Rear Panel Description

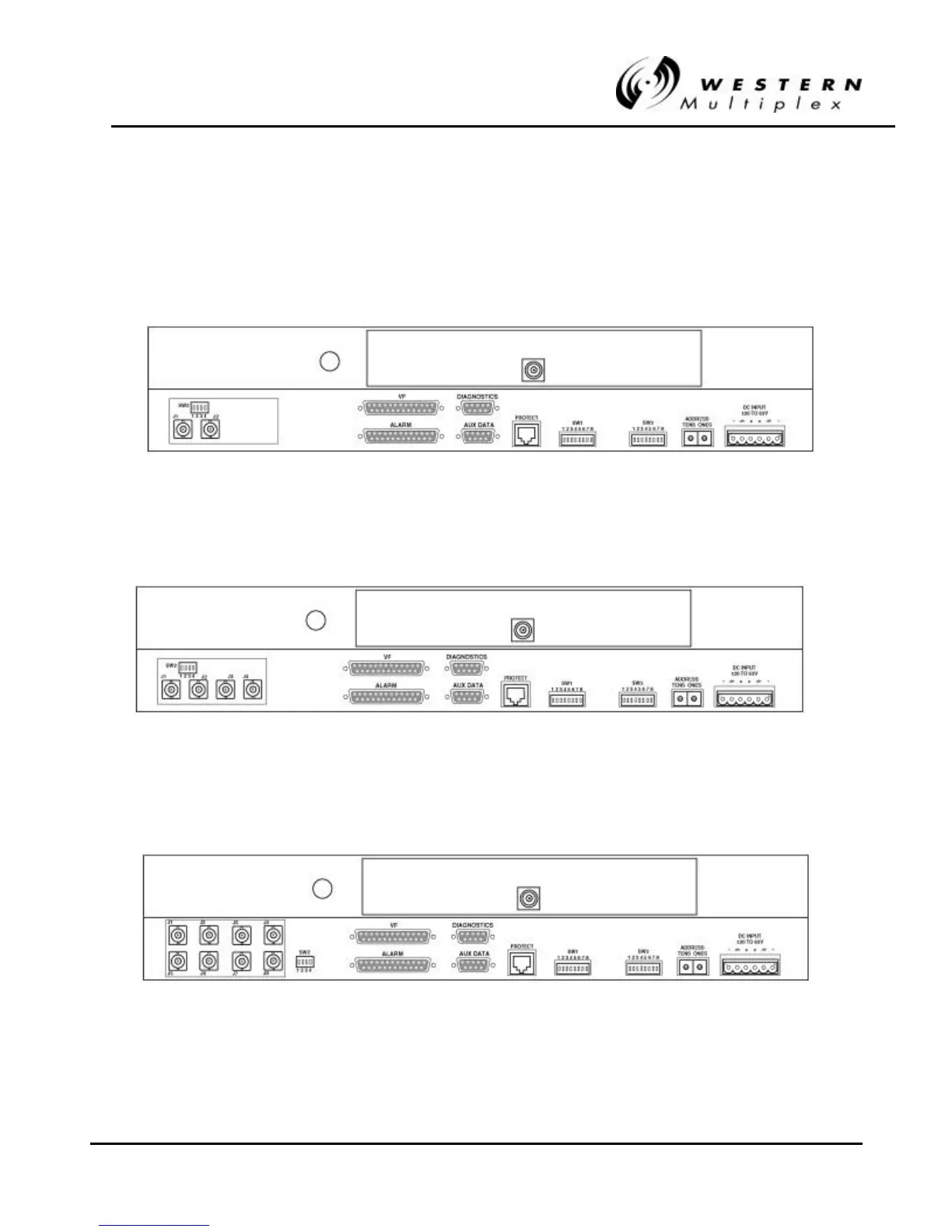

The Lynx radio rear panel, as shown in Figures 2-7 through 2-12, has connections and DIP switches
that are used for installation, maintenance, operation and trouble-shooting. Before installation, you
should familiarize yourself with the rear panel.
Figure 2Figure 2-- 7: Rear Panel 1xE17: Rear Panel 1xE1
Figure 2Figure 2-- 8: Rear Panel, 2xE18: Rear Panel, 2xE1
Figure 2Figure 2-- 9: Rear Panel, 4xE1 (optional un9: Rear Panel, 4xE1 (optional unbalanced, BNC ports)balanced, BNC ports)
