INSTALLATION AND MAINTENANCE MANUAL
E1 FAMILY
LICENSED & SPREAD SPECTRUM RADIOS
JUNE 2001
SECTION 4: TROUBLESHOOTING PAGE 4-23

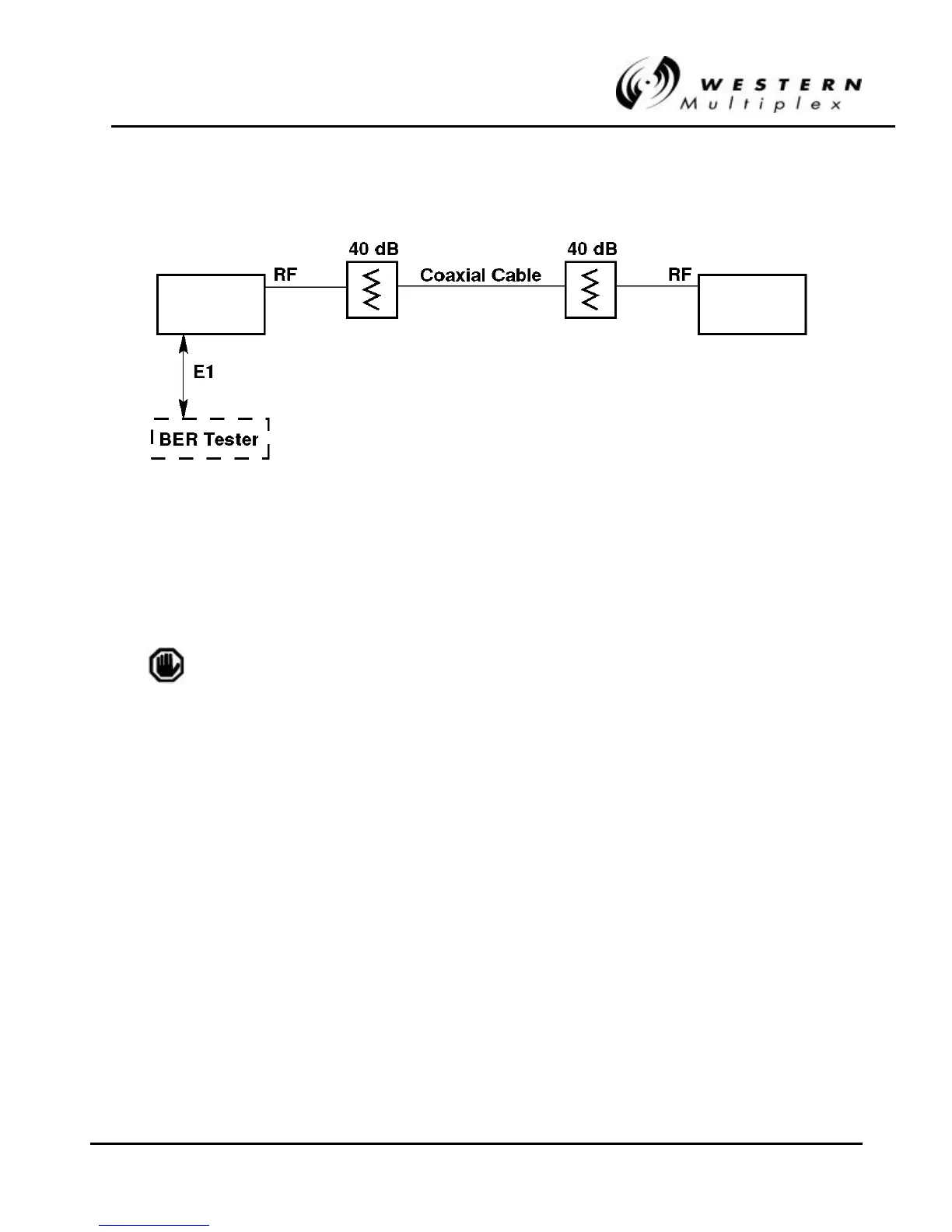

Figure 4Figure 4-- 1: Back1: Back-- toto-- Back Test ConfigurationBack Test Configuration
(When using a BER tester, initiate loopback on connected Lynx and select external test mode as
described in Section 3.12.2).
The Lynx radios will be damaged if appropriate attenuation is not
supplied between radios. You must provide a minimum of 40 dB
and no more than 80 dB attenuation between the two radios.
Lynx
Lynx
