Westfield XTR2 - Page 102

16.6
Remaining Fuel Pipe Connection Details

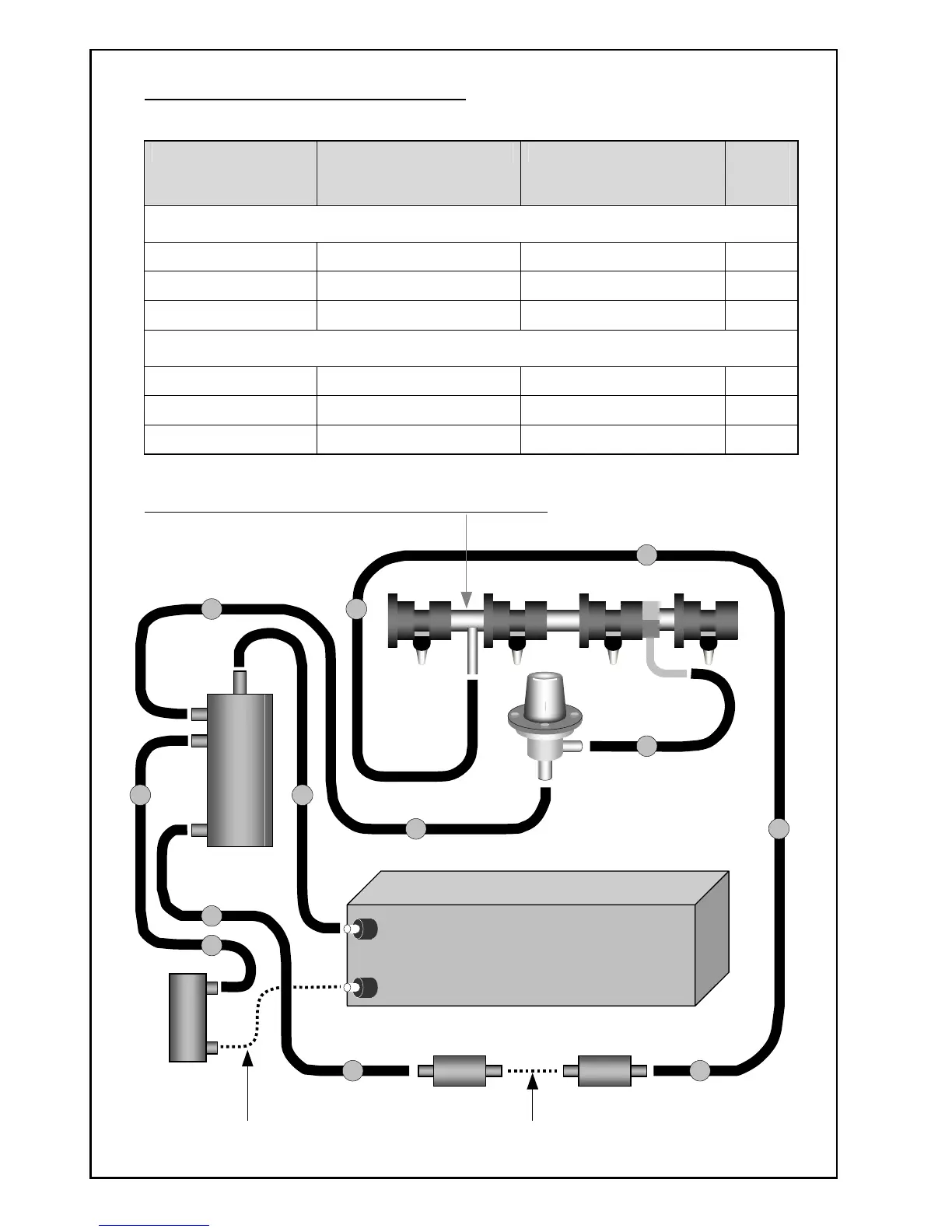

Fit remaining pipes using a Jubilee Clip at each end. See sketch below for further details.
PIPE SIZE FROM TO Pipe
No. On
sketch
Before Engine Fitting:
1/2” Swirl Pot Main Fuel Pump 1
8mm (5/16”) Swirl Pot `Facet’ Fuel Pump 2
8mm (5/16”) Swirl Pot Fuel Tank Return 3
After Engine Fitting:
8mm (5/16”) Swirl Pot Fuel Pressure Regulator 4
8mm (5/16”) Fuel Pressure Regulator Engine Injector Rail 5
8mm (5/16”) Fuel Filter Engine Injector Rail 6
NOTE – Return This Pipe To Westfields For Modification.
`FACET’
FUEL
PUMP
MAIN FUEL PUMP FUEL FILTE
R
FUEL TAN
K
SWIRL
POT
FUEL
PRESSURE
REGULATOR
1
1
5
2
2
3
4
4 6
6
ENGINE INJECTOR RAIL
6
6
See Photos On Previous
Pages For Details Of
See Photos On Previous
Pages For Details Of
T
his Fuel Pi
p
e
T
his Fuel Pi
p
e
