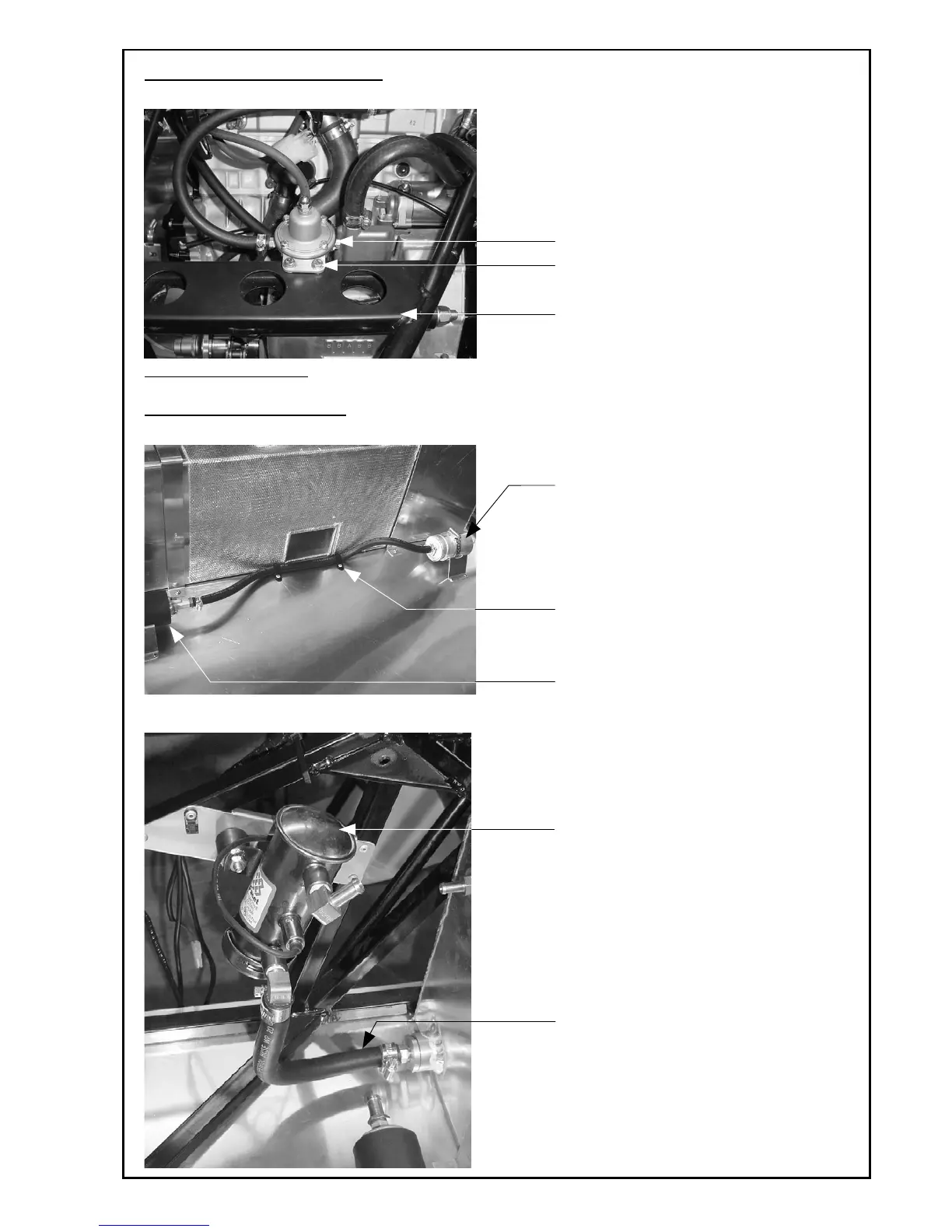

Step 5: Fuel Regulator Fitting
Fit the Fuel Pressure Regulator to the Top Engine Mounting Frame as shown.
View From Rear Of Car
Step 6: Fitting Fuel Pipes
Fit the Pipe from the Main Fuel Pump to the Fuel Filter and secure each end using Jubilee Clips.
Fit the Pipe from the Fuel Tank to the `Facet’ Fuel Pump. Again, Secure with Jubilee Clips.
Fuel Pressure Regulator
op Engine Frame
M6 Bolts x 40mm Long with Nyloc Nuts
NOTE
The Regulator Should Only Be Fitted
fter The Frame Has Been Bolted To The
Engine and Installed In The Car.
Fuel Filter
8mm (5/16”) Fuel Pipe – Fit 2 x `P’ Clips
In Positions Shown And Rivet To Floor
Plate
NOTE
Ensure Pipe Is Tight Up Against The Fuel
Tank & Floor To Clear The Handbrake
Rod Fitted In Section 9. (Omitted Here
For Clarity)
Fuel Filter
10mm (3/8”) Fuel Pipe
`Fuel’ Pump
