17.3
SECTION 17 - DRY SUMP TANK & OIL CATCH TANK
Tools Required:-
- 1 Electric Drill / 9mm Drill Bit / Rivsert Tool / 2 x 10mm Spanner
Parts Required:-
- 1 x Dry Sump Tank / 1 x Oil Catch Tank / 2 x 20mm Long Spacers / 2 x M6 Bolts x 35 Long
4 x M6 Setscrews x 20mm Long / 6 x M6 Nyloc Nuts / 10 x M6 Washers / 2 x M6 Rivserts
- 1 x Dry Sump Tank Bracket

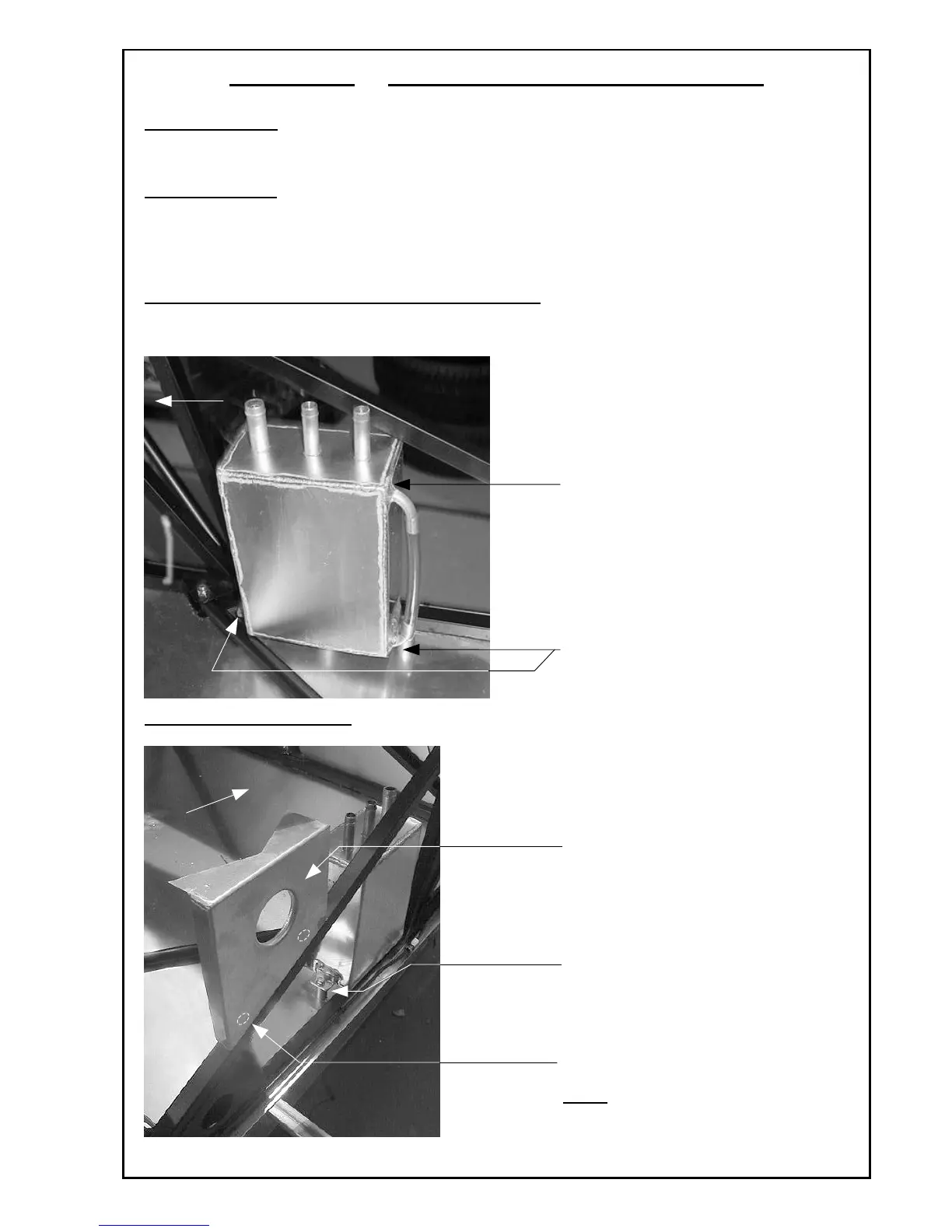

Step 1: Catch Tank & Dry Sump Tank Installation
Place the Catch Tank onto the Floor Panel as shown and mark the position of the two fixing holes
onto the Panel.
View From Drivers Side Of Car
View From Inside Engine Bay
Fit Spacer Between Tank And Floor
Panel In 2 Places.
Secure The Tank With M6 Bolts x
35mm Long. Fit Washers Under Heads
& Nyloc Nuts
Dry Sump Tank Bracket
Drill Through Bracket And Into Chassis
Rail. Fit 2 x Rivserts Into Chassis Rail.
Secure Bracket To Chassis With 2 x M6
Setscrews x 20mm Long & Washers
NOTE
See Next Page For Locating The
To Next Page
