Westfield XTR2 - Page 106

17.4
Dry Sump Tank
Drill Through Brackets And
Secure Tank With 2 x M6
Bolts x 20mm Long +
Washers & Nyloc Nuts
To Locate The Tank
On The Bottom Of The Tank There
Is A Drain Plug With A Protection
Tube Around It.
T
he Tank Must Be Positioned So
T
he Drain Point Tube Protrudes
T
hrough The Floor Panel Until The
Bottom Of The Tank Sits On The
Floor. Drill a 40 Dia Hole In The
Floor Panel To Clear The Tube.

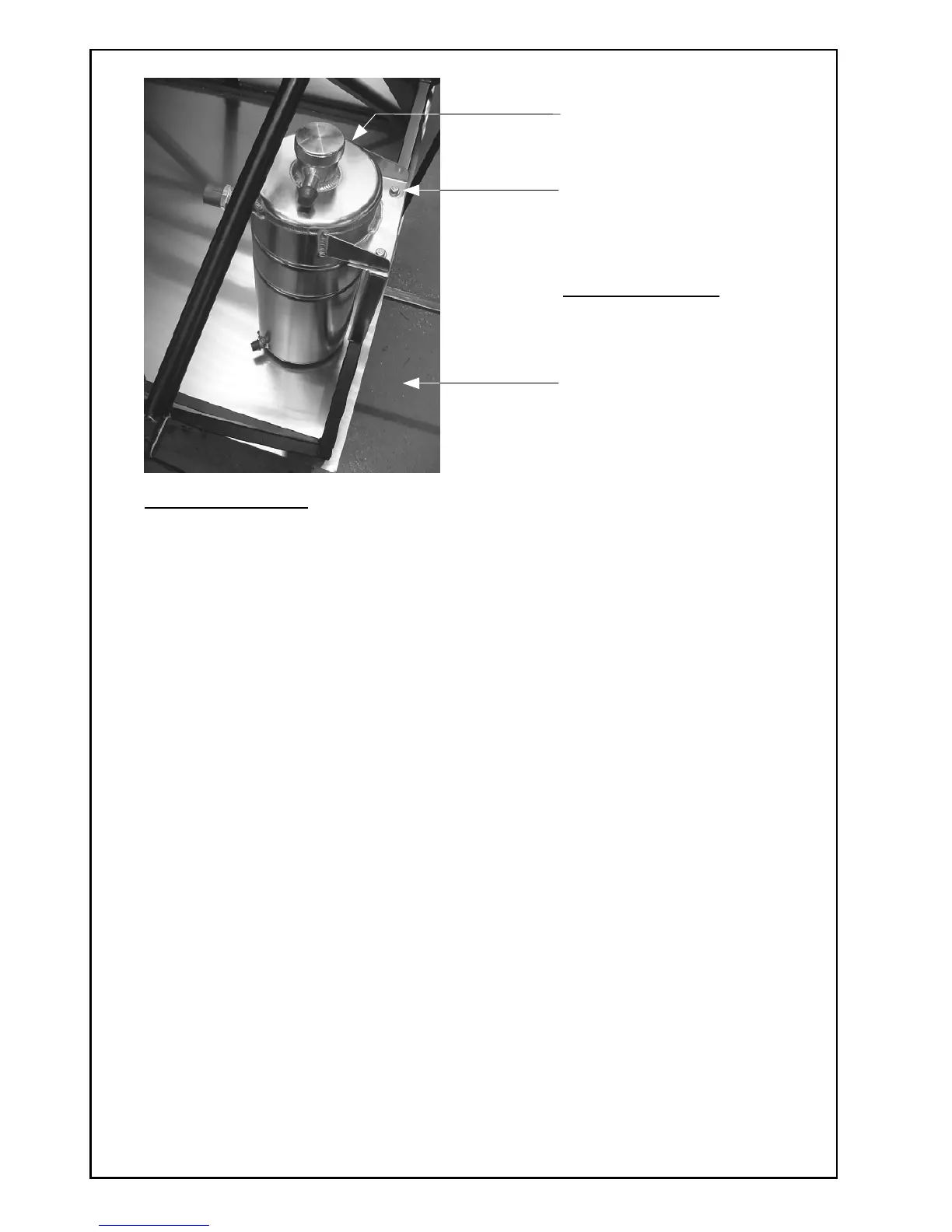

View From Rear Of Car
