SECTION 19 - ENGINE PREPARATION & INSTALLATION
Tools Required:-
- 1 x Spanner
Parts Required:-
- 1 x Engine Fitted With Dry Sump System / Drive Sprocket / Reverse Gear Drive Flange / Clutch
Slave Cylinder + Mounting Brackets / Oil Pressure Adapter / Gear Linkage Support Plate,
Bracket, Levers & Rod / Top Engine Frame / Loom Saddles / MAP Sensor / Air Filter Plate /
Rubber Trumpets / Air Temperature Sensor / Plastic Elbow / Air Filter / Exhaust Manifold
Note ; It is easier to fit the Exhaust Manifold at this stage before the engine is fitted
into the Chassis. For instruction see Section 22.

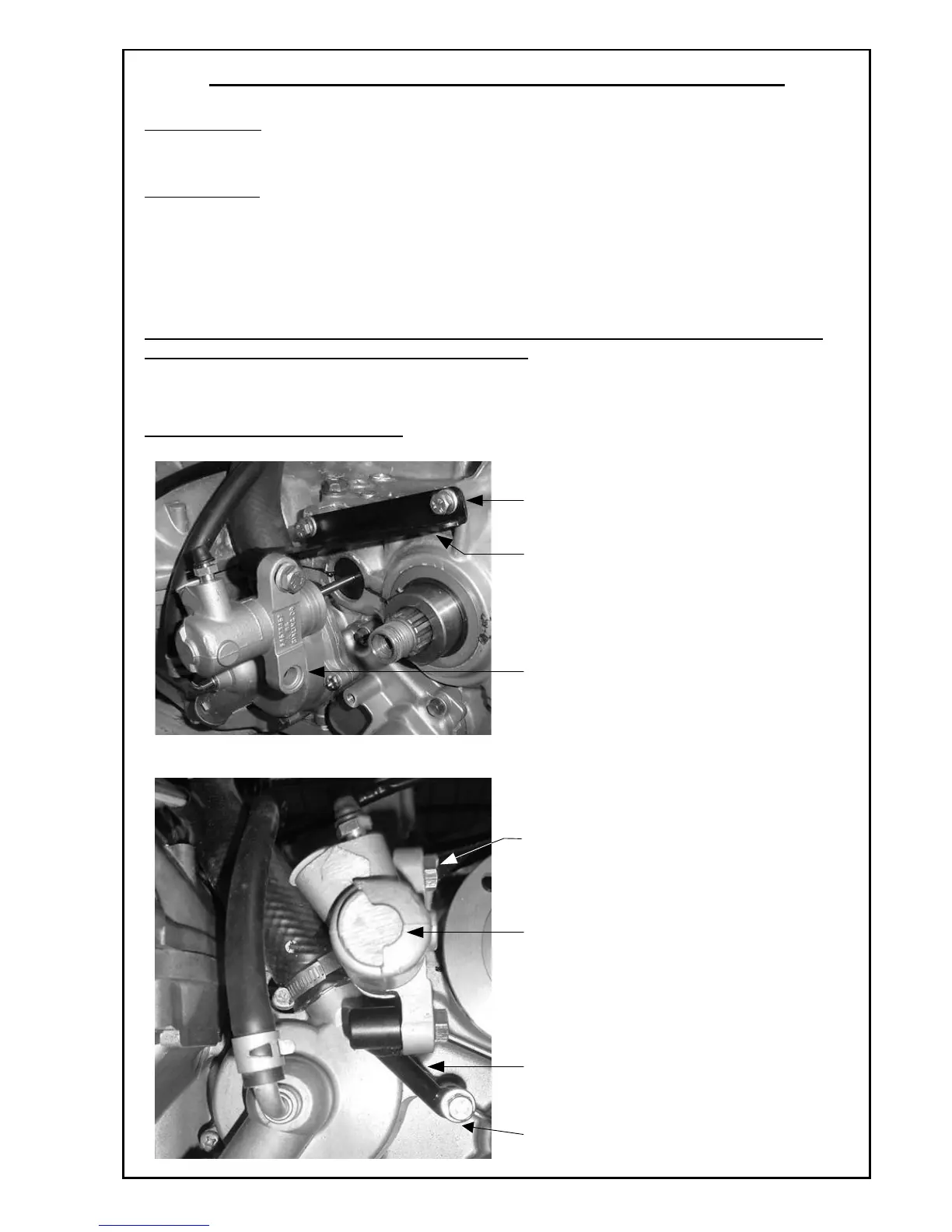

Step 1: Fit Clutch Slave Cylinder
Secure Bracket To Clucth Cylinder With 2 – M8
Setscrews x 20mm Long & Spring Washers
Secure Bracket To Engine With 1 - M6
Setscrews x 35mm Long & Spring Washer
Clutch Slave Cylinder
Lower Bracket
Clutch Slave Cylinder
Secure Bracket To Engine With 2 - M6
Setscrews x 20mm Long & Spring Washers
Upper Bracket
To Next Page
