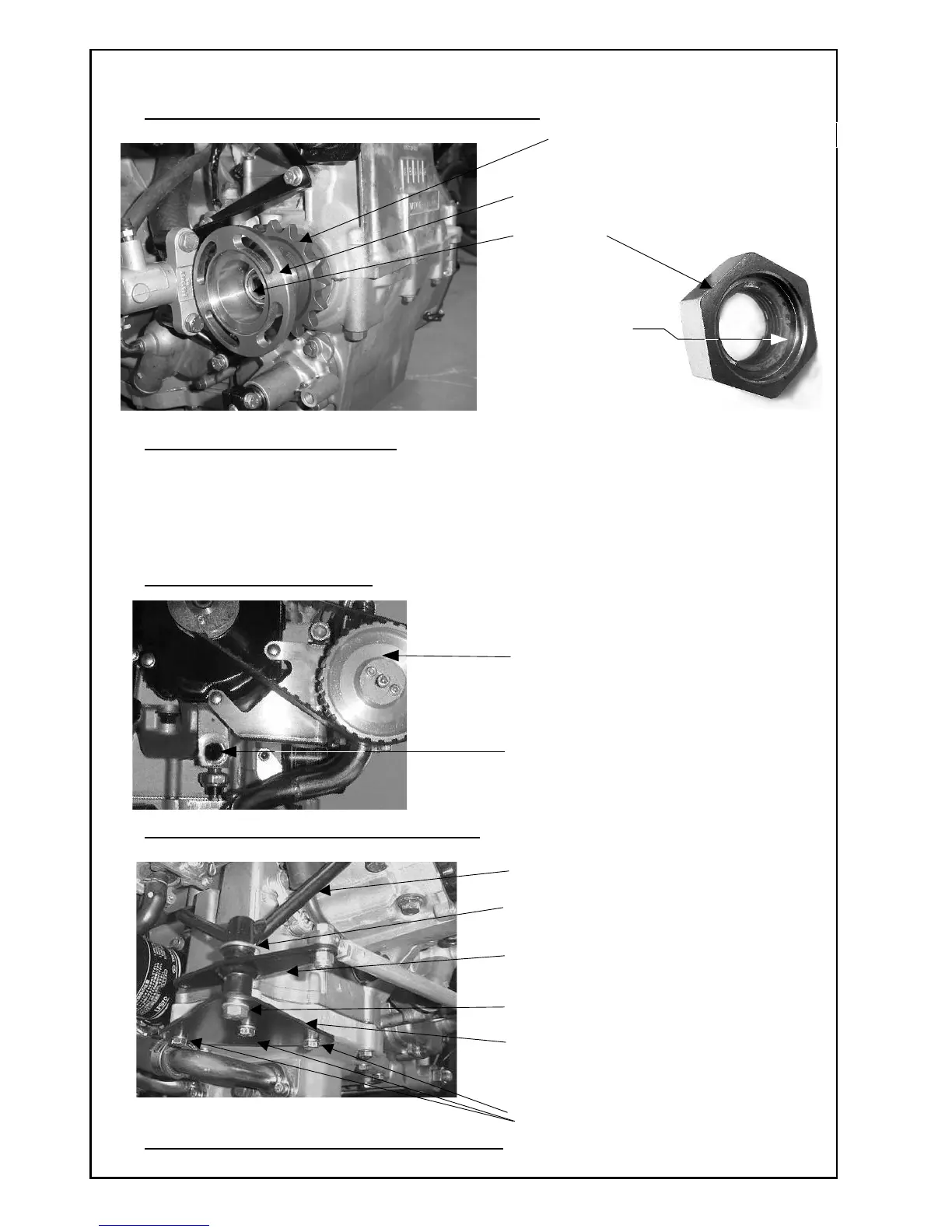

Step 2: Fit Sprocket & Reverse Gear Drive Flange
Sprocket
Reverse Gear Drive Flange
Modified Nut
Machine Face Of Nut
Until It Is Flush With
The Face Of The
Existing Counterbore.
i.e. To This Point.
If this Creates a
Problem Return Your
Nut To WSC To Be
Modified
Step 3: Exhaust Manifold Studs
Remove the Existing Bike Manifold and Cap Head Screws from the Engine if they have not
been removed already.
Carefully clean the mounting surface on the Engine and fit the 8 Exhaust Manifold Mounting
Studs supplied by Westfield
Step 4: Oil Pressure Adaptor
Dry Sump Pump Drive Pulley
Oil Pressure Adaptor Connection Point
Step 5: Gear Linkage Plates & Mechanism
Main Support Plate
Dry Sump Pan M6 Fixing Bolts x 3
M8 x 55mm Long Bolt+Washer Under Head
M8 Repair Washer
Gear Change Pivot Lever - Long End To
Left Hand Side Of The Car
Gear Change Support Bracket
View From Under Front Nearside Corner Of Engine (As Installed In Car)
