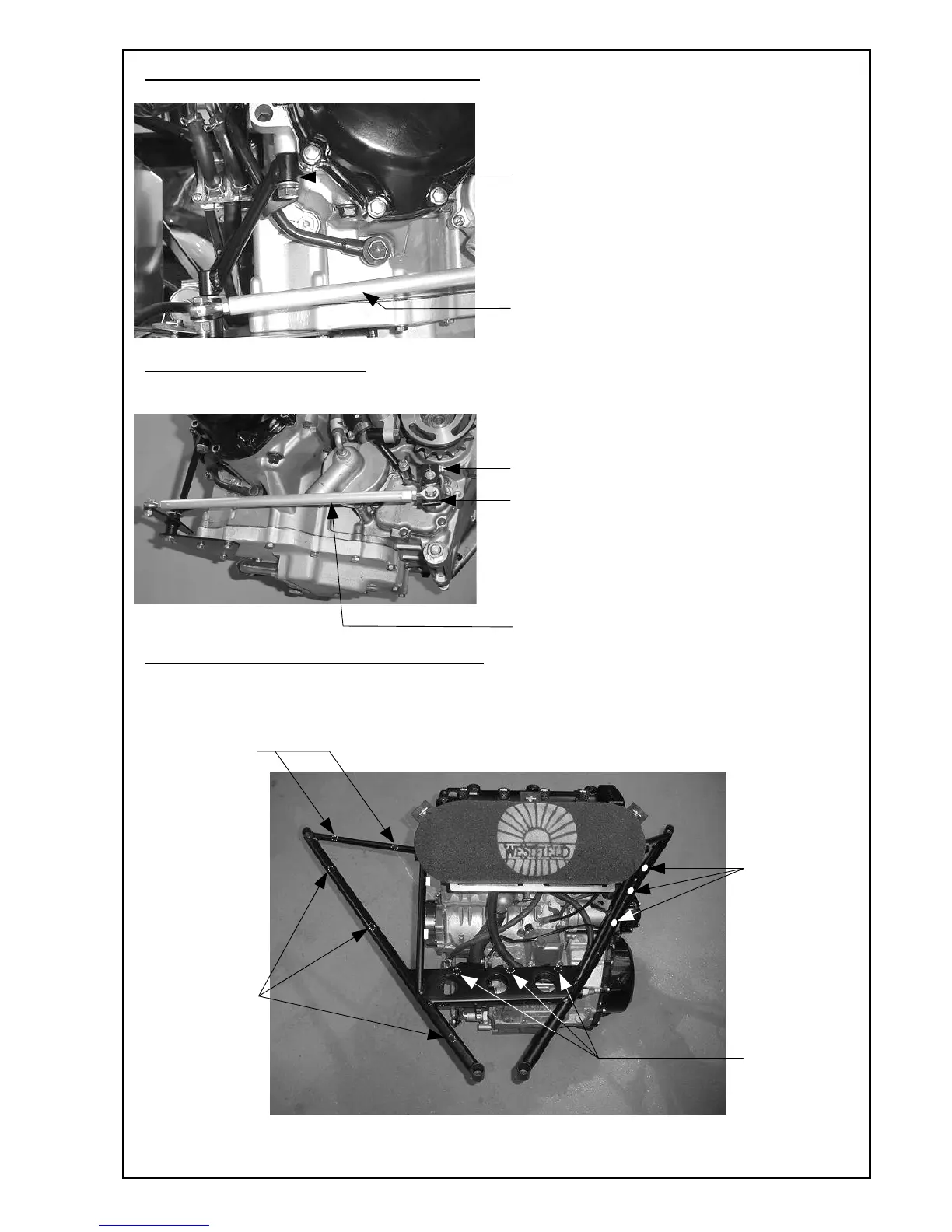

Step 5: Gear Linkage Plates & Mechanism
View From Nearside Of Engine (As Installed In Car)
Rear Gear Change Rod Fitted With Rod
Ends + Lock Nuts At Each End
Gear Change Support Bracket Top Fixings
M8 x 45mm Long + Washer Under Head
Gear Change Lever – NOTE; To Get The
Best Gear Lever Ratio It Is Advisable To
Reduce The Length Of This Lever From
65mm to 35mm Hole Position.
M6 Bolt x 20mm Long + Spring Washer
Rear Gear Change Rod ½” dia Aluminium
Step 6: Fit Loom Saddles To Engine Frame
Fit Loom Saddles To Engine Frame As shown Before Fitting Engine Into Frame.
Offside
Of Car
Nearside
Of Car
3 Loom Saddles
On Under Side
Of Main Side
Tube
2 Loom Saddles
On Under Side
Of Support
Tube
3 Loom Saddles
On Top Of Main
Side Tube
3 Loom Saddles
On Back Face
Of Brace Plates
