Westfield XTR2 - Page 117

19.6

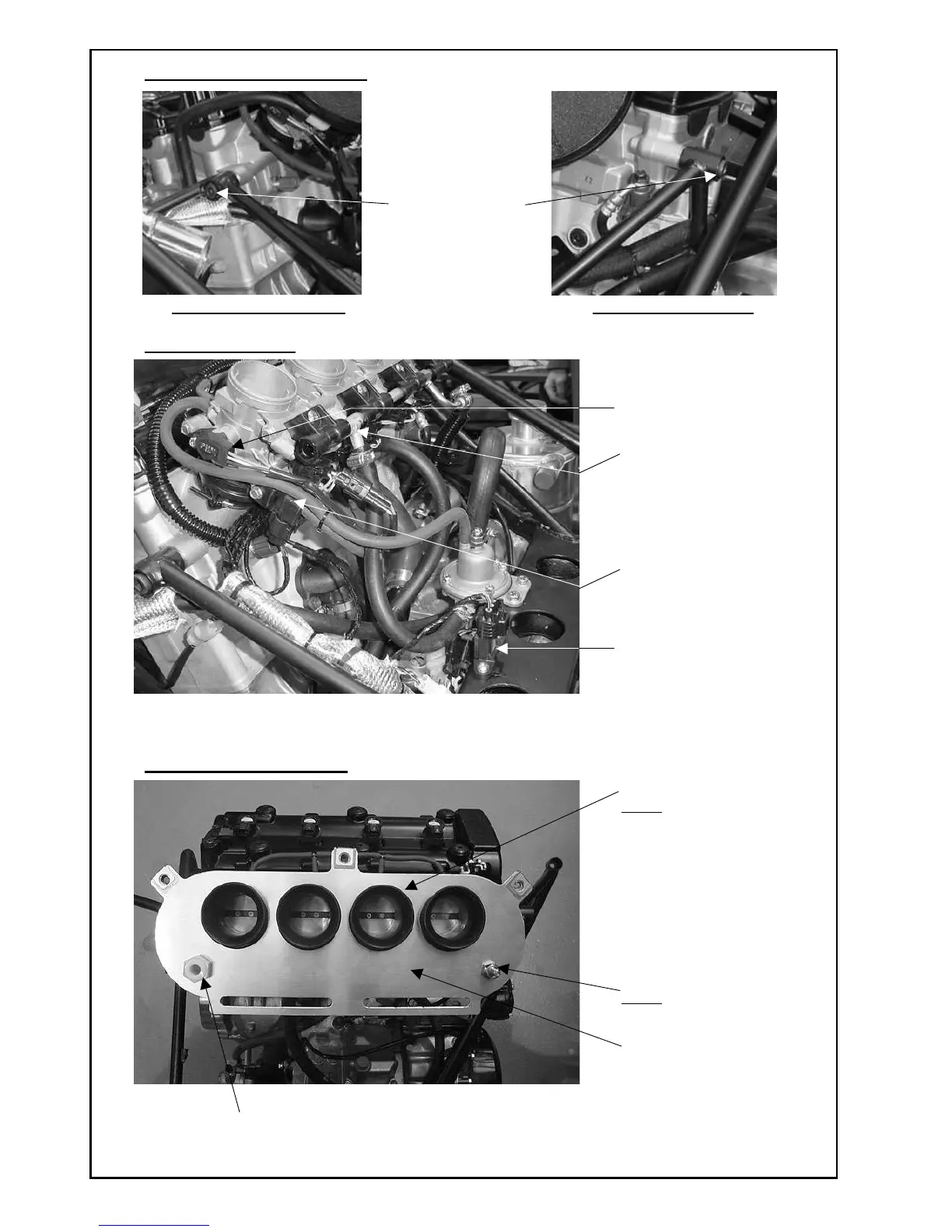

Step 7: Fit Frame To Engine
Nearside Mounting Point Offside Mounting Point
M10 x 1mm X
50mm Long
Special Bolts
(Self Coloured) Fit
through
Metalastic Bushes
Step 8: Fit Sensors
View From Rear Nearside Corner Of Engine
(Note: Piping Would Not Have Normally Been Fitted At This Stage.)
Step 9: Fit Air Filter Plate
Manifold Pressure Sensor
(MAP)
Locate On End Of Fuel Rail
A
s Shown
A
tmospheric Air Pressure
Sensor
Locate On Top Of Cross
Brace Plates As Shown
Throttle Position Sensor
(Already Located)
Fuel Rail Return (Modified
by Westfield Upon
Request)
Rubber Trumpets
NOTE
4 Trumpets Are Supplied
With The Engine - 2 Long &
2 Short. Keep The 2 Short
Ones & Discard The 2 Long
Ones. 2 Additional Short
Ones Are Supplied By
Westfield.
A
ir Filter Mounting Plate
A
ir Temperature Sensor
NOTE Keep This Off The
Original Motor Bike Air Box.
90° Elbow (See Step 10)
