2.14
Step 3 c; Nose Fitting
The nose should now sit onto the splitter board and slide back onto the locating blocks on the
main body section. The five slots in the lower front return should locate around the M6 bosses in
the front cross member of the splitter frame to both hold the nose sideways and down onto the
splitter board. If the two body sections do not meet correctly the angle of the splitter frame can
be altered using the adjusters on the frame to achieve the best fit.

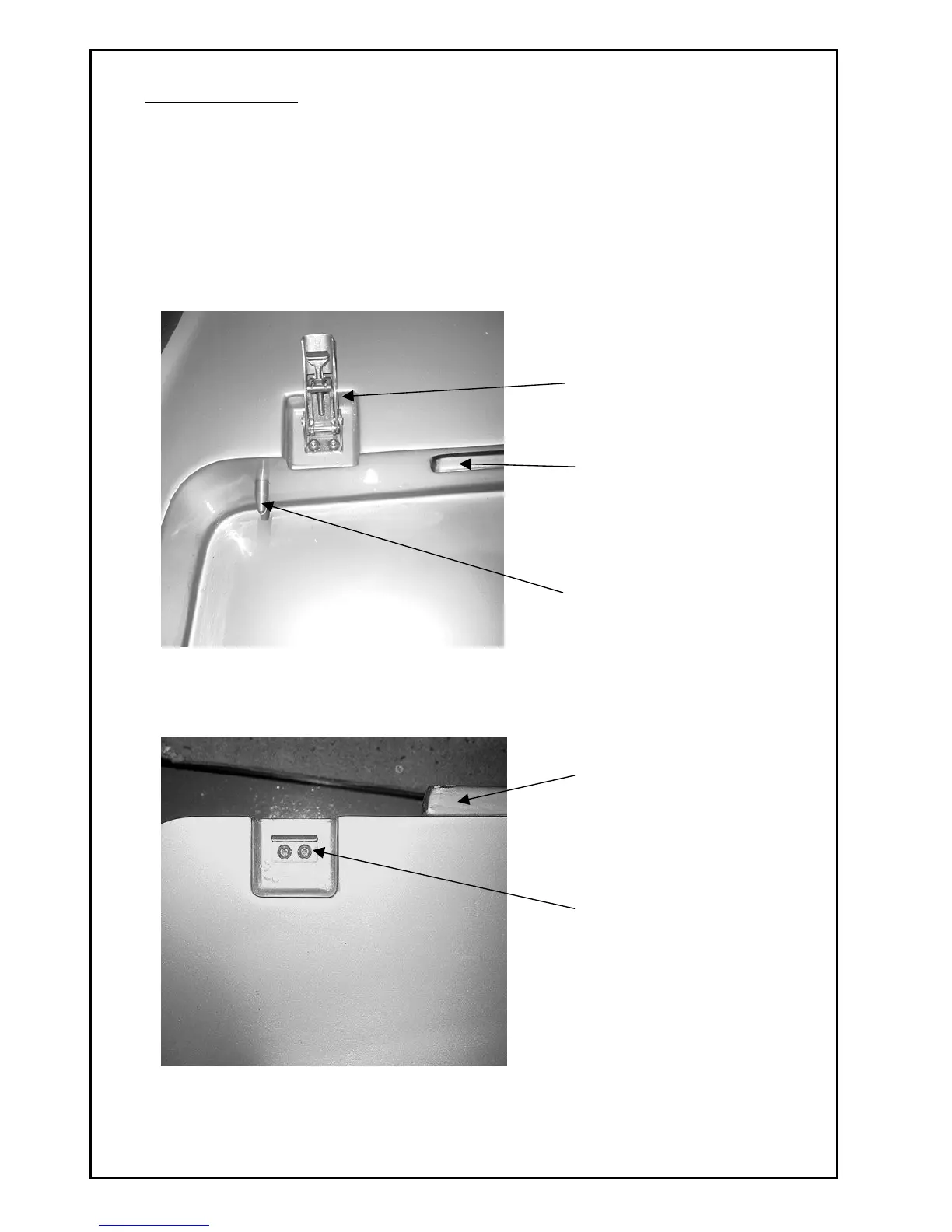

Then the over centre catches can be fitted in the recess on the two sections. You are also supplied
two location pins and gromets which can be fitted as shown.
Location Pin on this Face
Gromet on Nose Flange
Location Block
Over Centre Catch
Location Socket
Over Centre Catch
To Next Page
