4.4

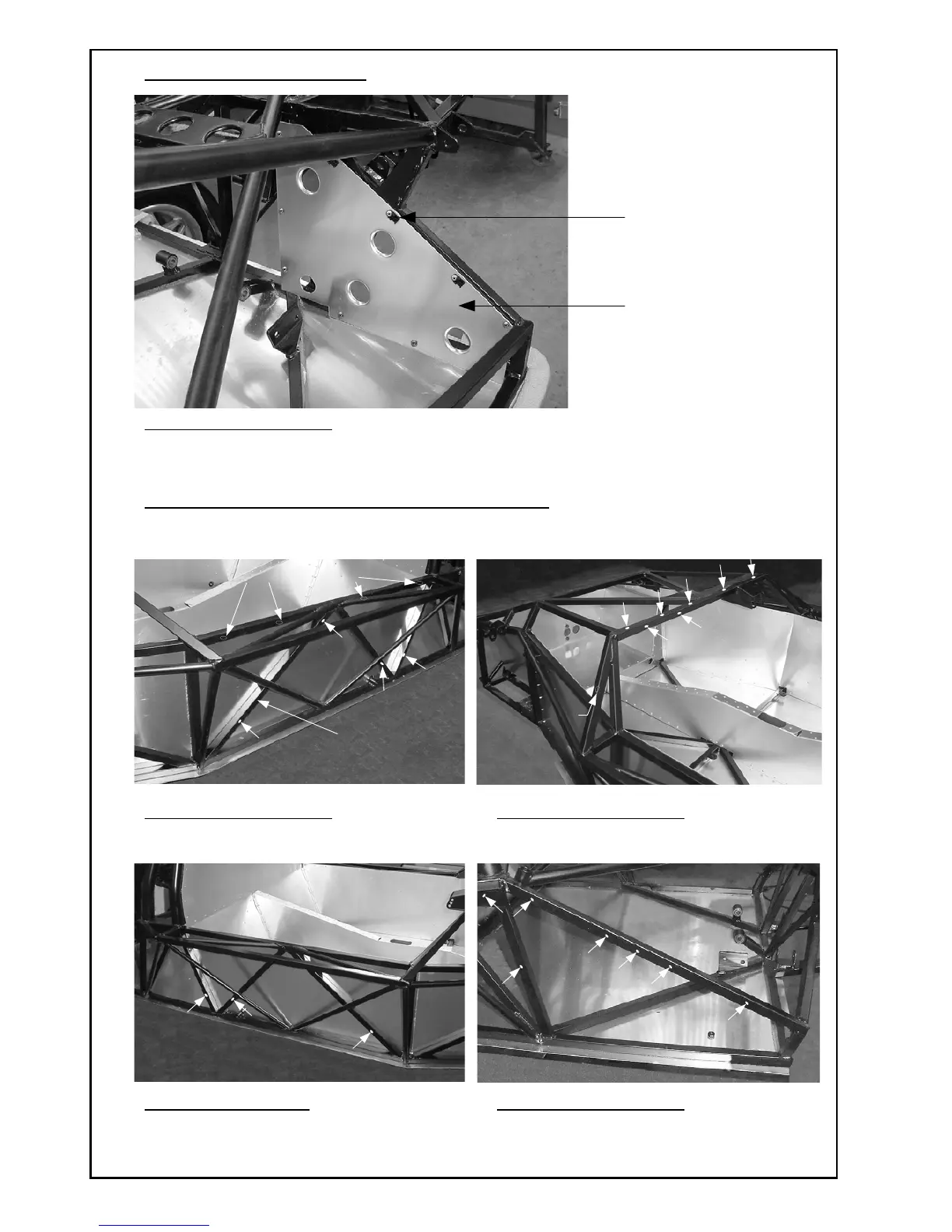

Step 3: ECU Mounting Plate
View From Passenger Side
(Engine Bay Area Of Chassis)
Step 4: Installation Of Main Chassis Loom Saddles
Fit Loom Saddles In Approximate Positions Shown By Arrows
View From Passenger Side View From Passenger Side
(Mid Section Of Chassis) (Front Section & Top Frame Of Chassis)
View From Drivers Side
View From Passenger Side
(Mid Section Of Chassis) (Engine Bay Area Of Chassis)
ECU Mounting Plate
Loom Saddles (3 Places)
(Rivet Through Saddles &
Panel Into Chassis Rail)
4 On Underside Of Top Rail
Main Earth Lead
Connection Point.
M6 Stud on Chassis.
1 On Rear
Of Side Rail
To Next Page
