Westfield XTR2 - Page 33

4.6

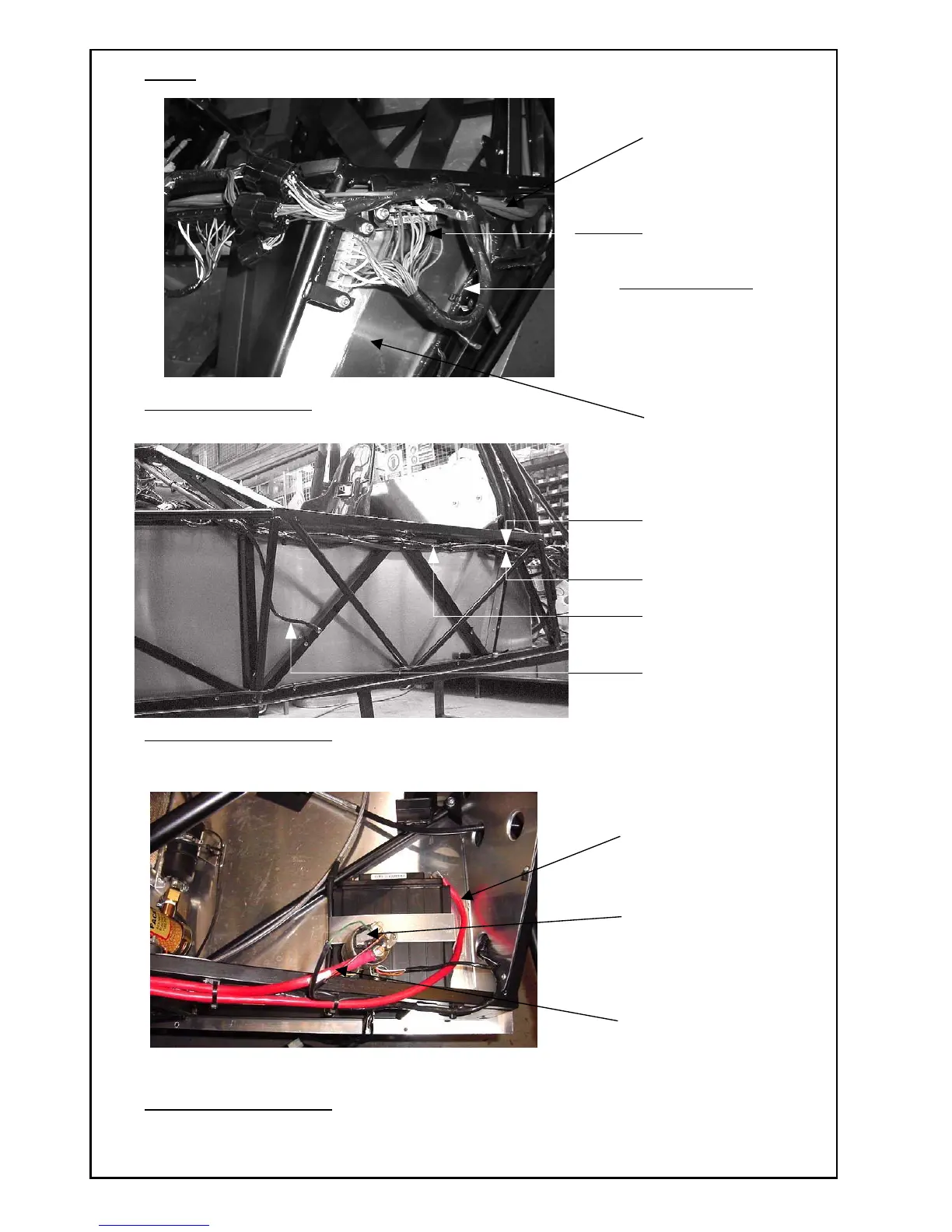

Step 5: Cont’d,
View From Front Of Car
(Top Frame Section Of Chassis)
Place Loom Onto The
Passenger Side Loom
Mounting Panel.
A
rrange Loom So The
Fuse Boxes Line Up With
The Fuse Box Mounting
Plate
Under Scuttle Panel
Fuse Box On
Underside Of Brackets
Main Battery Power
Cables
Run The 2 Red Main
Battery Cables Supplied
A
long The Chassis With
The Wiring Loom
Wiring Loom
Main Earth Lead
View From Passenger Side
(Mid Section Of Chassis)
Main Positive Battery
Lead
Reverse Solenoid
Positive Lead for
Reverse Solenoid
View From Passenger Side
(Engine Bay Area Of Chassis)
