Step 6: Master Switch Installation & Connection
Large Hole Already In
Chassis Top Frame
Drill 2 More Holes For
Fixing Screws
Fix Master Switch In
A
s Shown
Front
Of Car
Front
Of Car

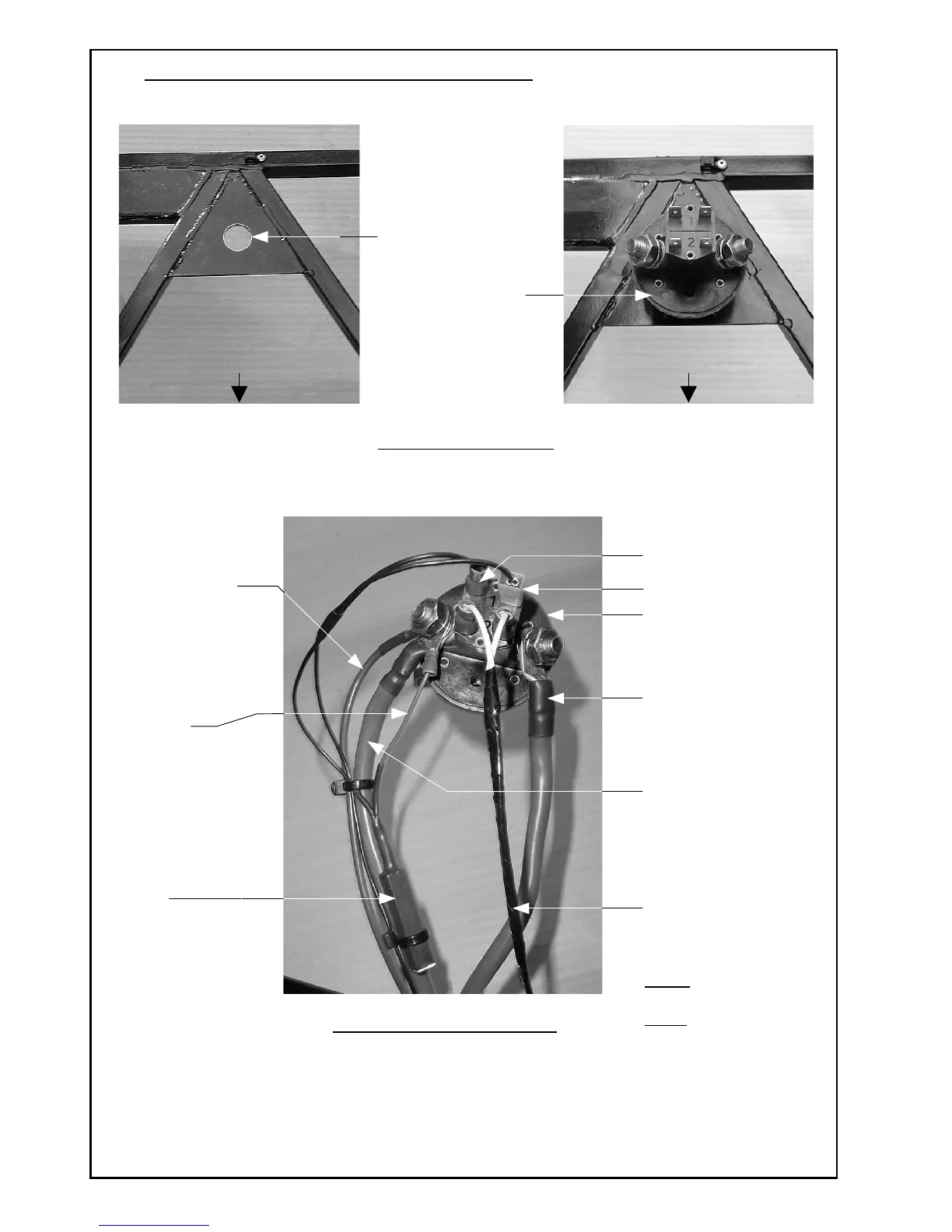

Views From Front Of Car
(Top Frame Section Of Chassis)
View From Underside Of Switch
Switch Removed From Chassis For Clarity
Main Red Lead From
Battery +ve
Master Switch
Earth From Main Loom
Main Red Lead To
Reverse Gear Solenoid
T
o Resistor
Brown Wire From
Main Loom
(Main Loom Power
Feed)
T
o Resistor
Resistor
To Ignition Supply On
Dashboard Loom
NOTE
THE MASTER SWITCH
MUST
BE WIRED AS
SHOWN
(See Instructions Sheet
In Master Switch Pack
For Further Details.)
