Westfield XTR2 - Page 44

SECTION 04 - REMAINING ELECTRICAL COMPONENTS

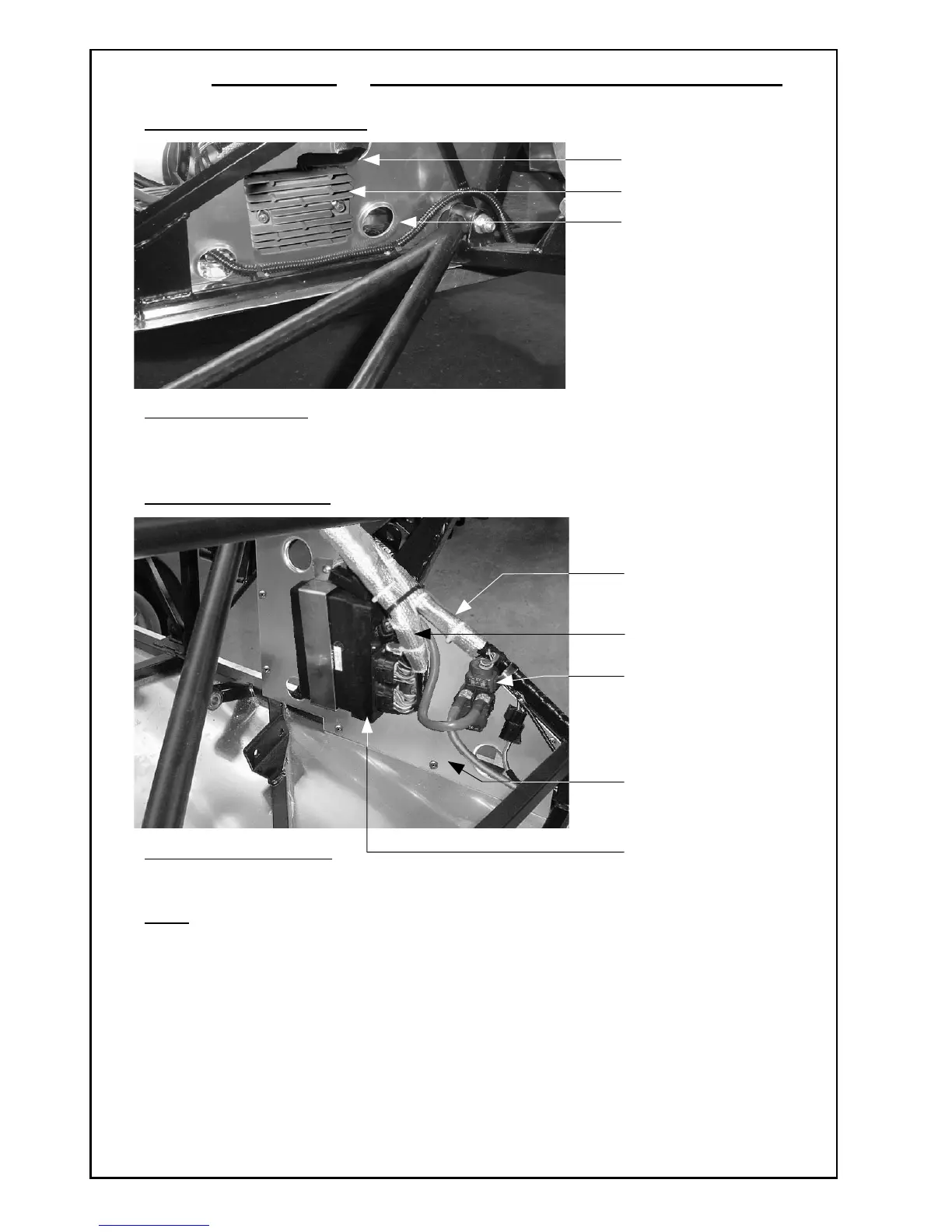

Step 10: Rectifier Mounting
View From Rear Of Car
(Rear Section Of Chassis)
Step 11: ECU Mounting
View From Passenger Side
(Engine Bay Area Of Chassis)
NOTE
The Engine Loom Supplied MUST Be returned to Westfield Sports Cars For Modification.
Rectifier Unit
Rectifier Cable
Rear Of ECU
Mounting Plate
Main Loom
Engine Loom (See
Note Below)
Front OF ECU
Mounting Plate
ECU Unit
Starter Motor Relay
