Westfield XTR2 - Page 45

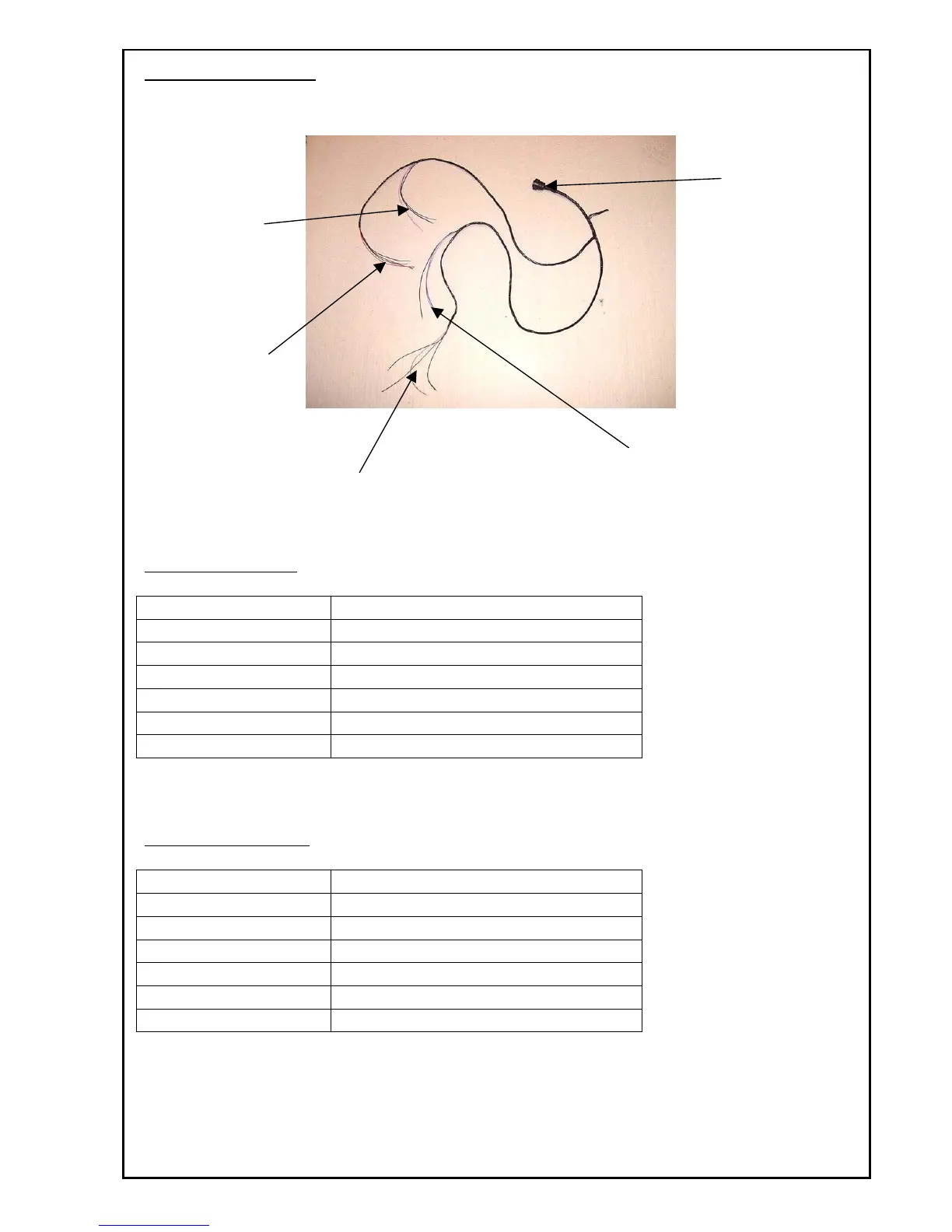

Front Light Wiring Loom
Main Front
Bodywork Plug
L/H Main Headli
g
hts
R/H Main
Headlights
L/H Sidelights
& Indicator
R/H Sidelights
& Indicator
LEFT HAND CLUSTER
Blue/Pink Dipped Beam (OUTER LIGHT)
Blue/Slate Main Beam (INNER LIGHT)
Black Common Earth
Red/Orange Sidelight
Black Earth
Green/Red Indicator
Black Earth
RIGHT HAND CLUSTER
Blue/Pink Dipped Beam (OUTER LIGHT)
Blue/Slate Main Beam (INNER LIGHT)
Black Common Earth
Red/Black Sidelight
Black Earth
Green/White Indicator
Black Earth
There are some plastic clips on the inside of the Nose Bodywork section for you to fasten the front
loom up away from the wheels etc.
4.16
