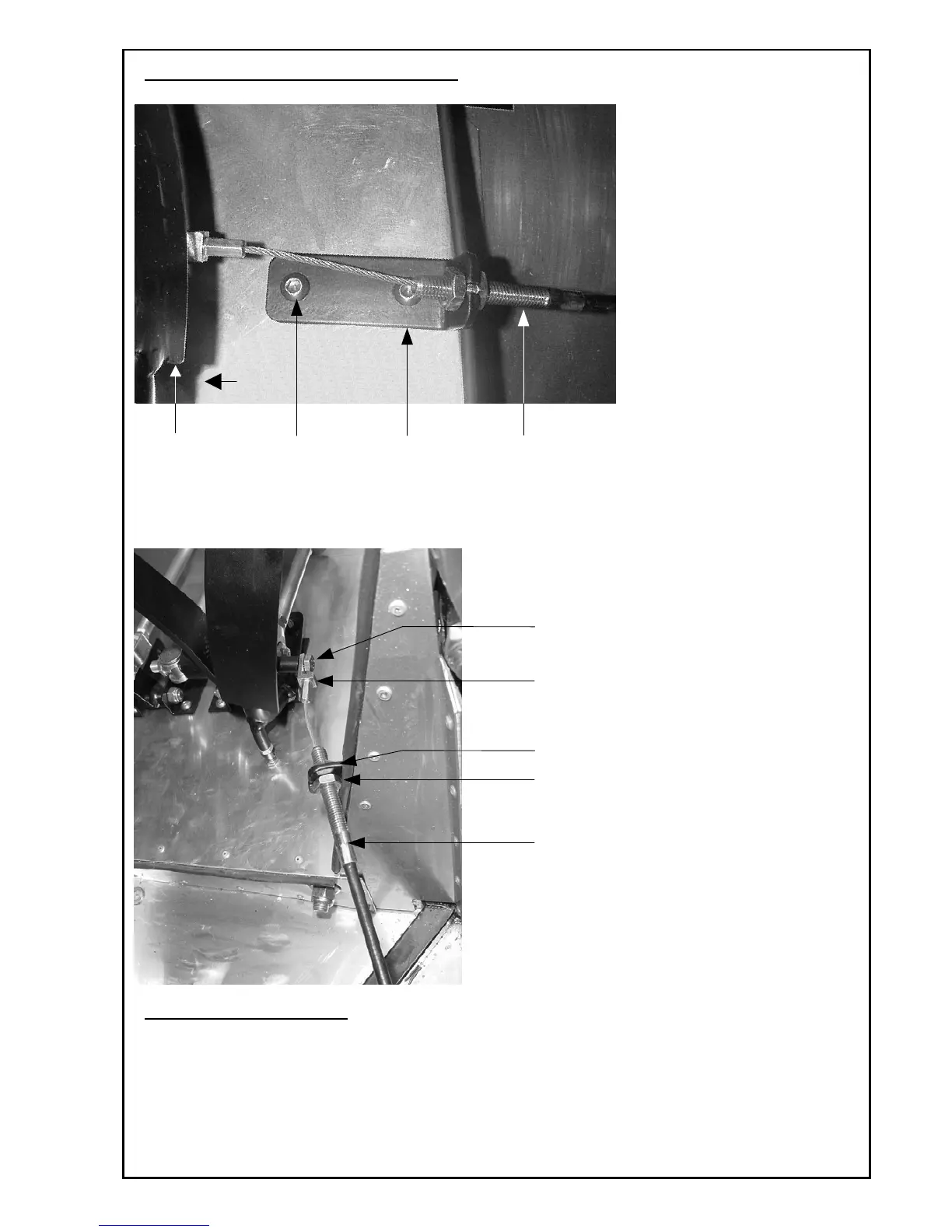

Step 4: Fit Accelerator Cable & Bracket
Front
Of Car
A
ccelerator
Pedal
M5 Button
Head Screws
Throttle
Cable
M5 Button
Head Screws
Bracket
M5 Button Head Screw. Apply
‘
Loctite’ To Thread Before Fitting.
Do Not Tighten Down Completely.
Ensure The Cable Clevis Rotates
Freely.
Cut Off One Leg Of Clevis To
Form Angle Bracket As Shown
View From Drivers Seat Area
T
hrottle Cable
Bracket
Lock Nut Either Side Of Bracket
