Step 6: Fitting Front Upright

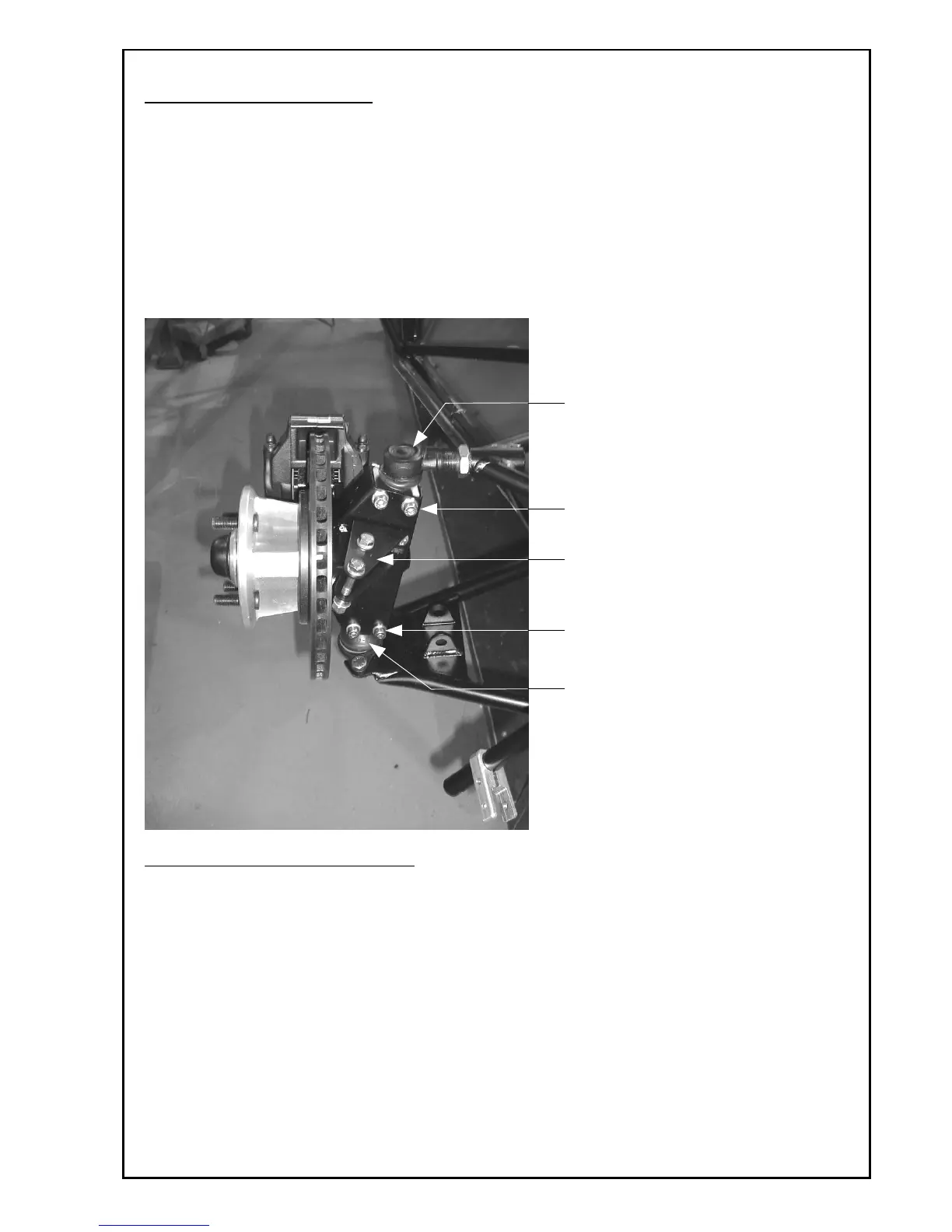

Once the Ball Joint Blocks are Bolted up tight you are ready to Install the Front Upright.
Hold the Upright with the Steering Arm towards the Front of the Car and the Brake Caliper
towards the Rear.
Place the Upright onto the Lower Block and Assemble using Two Cap Screws.
Lower the Top Block into the Upright and Repeat the Assembly Procedure.
NOTE: Do Not tighten the Top Cap Screws Fully at this Stage as the Set-Up of the Car is
Adjusted on this Joint.
M8 Cap Screws x 60 Long,
To Next Page
