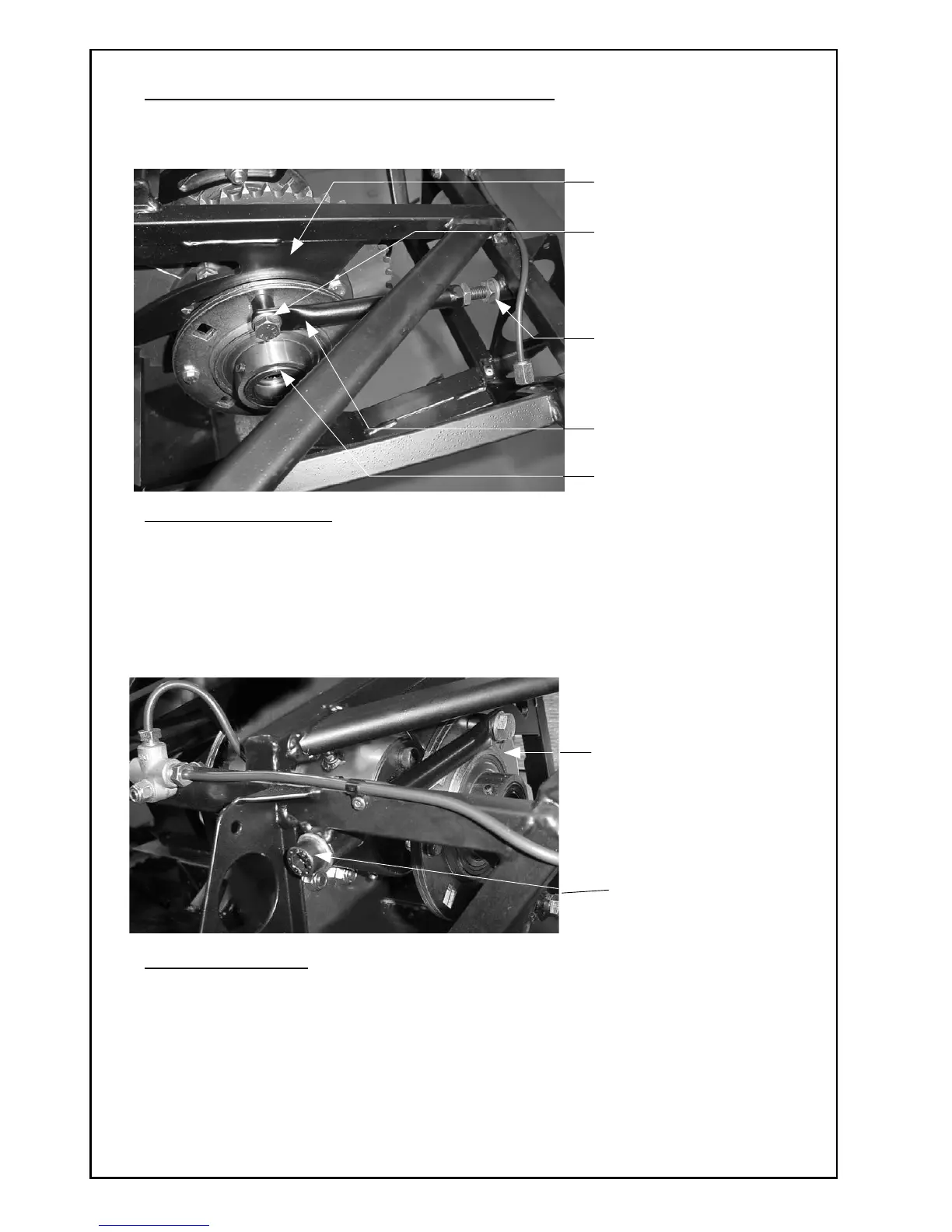

Step 2: Install Differential Unit & Chain Tensioners
Fit Chain Tensioners To Differential And Chassis
Chain Tensioner
Bearing Carrier
M10 Bolt x 55mm Long
With Washers Under Head
M10 Socket Cap Screw x
100mm Long With Washers
&
Lock Nuts
Quadrant Plate
Fit Washer & Nyloc Nut On
Other Side Of Quadrant Plate
To Secure Bolt
View From Passenger Side
M10 Socket Cap Screw x
100mm Long
Differential and Chain
A
djustment Bolt
Bearing Carrier
View From Rear Of Car
