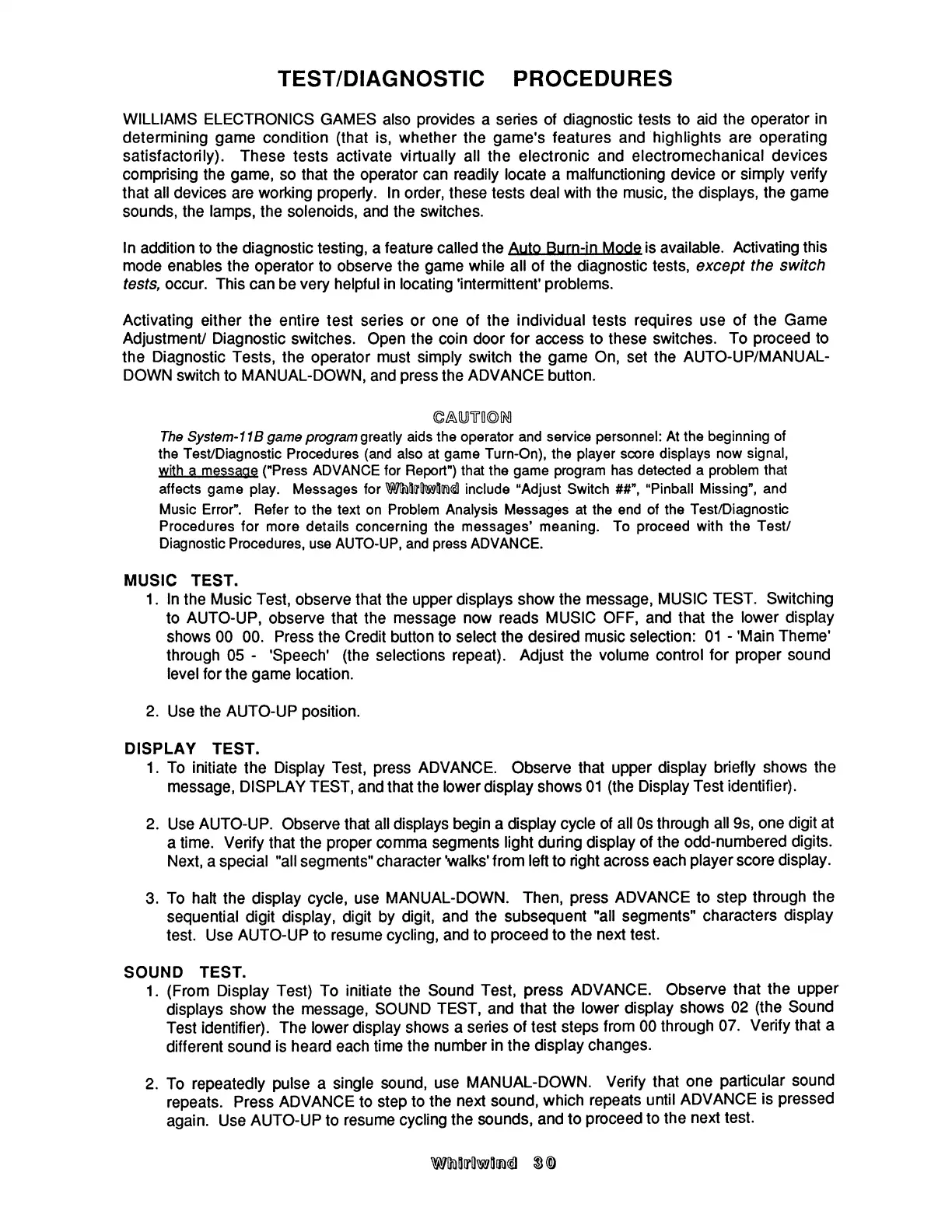

TEST/DIAGNOSTIC
PROCEDURES
WILLIAMS
ELECTRONICS
GAMES also
provides a
series of
diagnostic tests to aid
the operator
in
determining game
condition
(that
is,
whether the game's features
and highlights
are
operating
satisfactorily).
These
tests activate
virtually
all
the electronic
and
electromechanical
devices
comprising the game, so that the
operator
can
readily
locate
a
malfunctioning
device or
simply
verify
that all
devices
are
working properly. In
order,
these
tests deal
with
the
music, the displays,
the
game
sounds, the
lamps,
the solenoids, and the switches.
In
addition
to the diagnostic testing,
a feature
called
the is
available.
Activating
this
mode
enables
the
operator
to
observe the
game
while
all
of the diagnostic tests,
except
the
switch
tests, occur.
This
can
be
very
helpful
in
locating
‘intermittent’
problems.
Activating
either
the
entire test series or one
of the individual tests
requires use of
the Game
Adjustment/
Diagnostic
switches.
Open the
coin
door for access to these
switches. To
proceed
to
the
Diagnostic
Tests,
the operator
must
simply
switch
the game On,
set the
AUTO-UP/MANUAL-
DOWN
switch
to
MANUAL-DOWN,
and
press
the
ADVANCE button.
@AU‘lT'll©[Nl
The System-11B game program greatly aids the operator and service
personnel: At the
beginning
of
the Test/Diagnostic
Procedures (and also at game
Turn-On), the player score
displays
now signal,
mmimessagg ("Press ADVANCE for Report") that the game program
has detected a
problem that
affects game play.
Messages for Whirlwind include "Adjust
Switch ##”, “Pinball
Missing”,
and
Music Error”. Refer
to the text on Problem Analysis Messages at the
end of the Test/Diagnostic
Procedures
for more details concerning the messages’ meaning. To
proceed with
the Test/
Diagnostic Procedures,
use AUTO-UP, and press ADVANCE.
MUSIC
TEST.
1.
In the Music
Test,
observe that the upper
displays
show
the message,
MUSIC
TEST.
Switching
to
AUTO-UP,
observe that the
message now
reads
MUSIC
OFF,
and that
the
lower display
shows 00 00.
Press
the
Credit button
to select
the
desired
music
selection:
01
-
‘Main
Theme’
through 05
-
‘Speech’ (the selections
repeat).
Adjust
the
volume control
for proper
sound
level for
the
game
location.
2.
Use
the
AUTO-UP position.
DISPLAY TEST.
1. To initiate
the
Display
Test, press ADVANCE.
Observe
that upper
display
briefly shows
the
message,
DISPLAY TEST, and
that the
lower display
shows 01 (the
Display
Test
identifier).
2.
Use AUTO-UP. Observe that all
displays begin a display
cycle
of all Os
through
all 9s,
one
digit at
a
time.
Verify
that
the
proper
comma
segments
light during display
of the odd-numbered
digits.
Next,
a special
"all segments" character
‘walks’ from
left to right
across each
player
score
display.
3.
To halt
the
display cycle,
use
MANUAL-DOWN.
Then, press
ADVANCE to step
through
the
sequential
digit display, digit by digit,
and the
subsequent
"all
segments"
characters
display
test.
Use
AUTO-UP
to
resume
cycling,
and
to
proceed to
the
next
test.
SOUND
TEST.
1. (From
Display
Test) To
initiate
the Sound
Test,
press
ADVANCE.
Observe
that
the
upper
displays
show
the message, SOUND
TEST, and that the
lower
display
shows
02
(the
Sound
Test identifier).
The
lower
display shows
a
series
of
test
steps
from
00
through
07.
Verify
that
a
different
sound
is
heard
each
time
the
number
in
the display
changes.
2. To repeatedly
pulse
a
single sound,
use
MANUAL-DOWN.
Verify
that one
particular
sound
repeats.
Press
ADVANCE
to step
to
the
next
sound,
which
repeats
until
ADVANCE
is
pressed
again.
Use
AUTO-UP to
resume cycling
the sounds,
and
to proceed
to
the
next
test.
