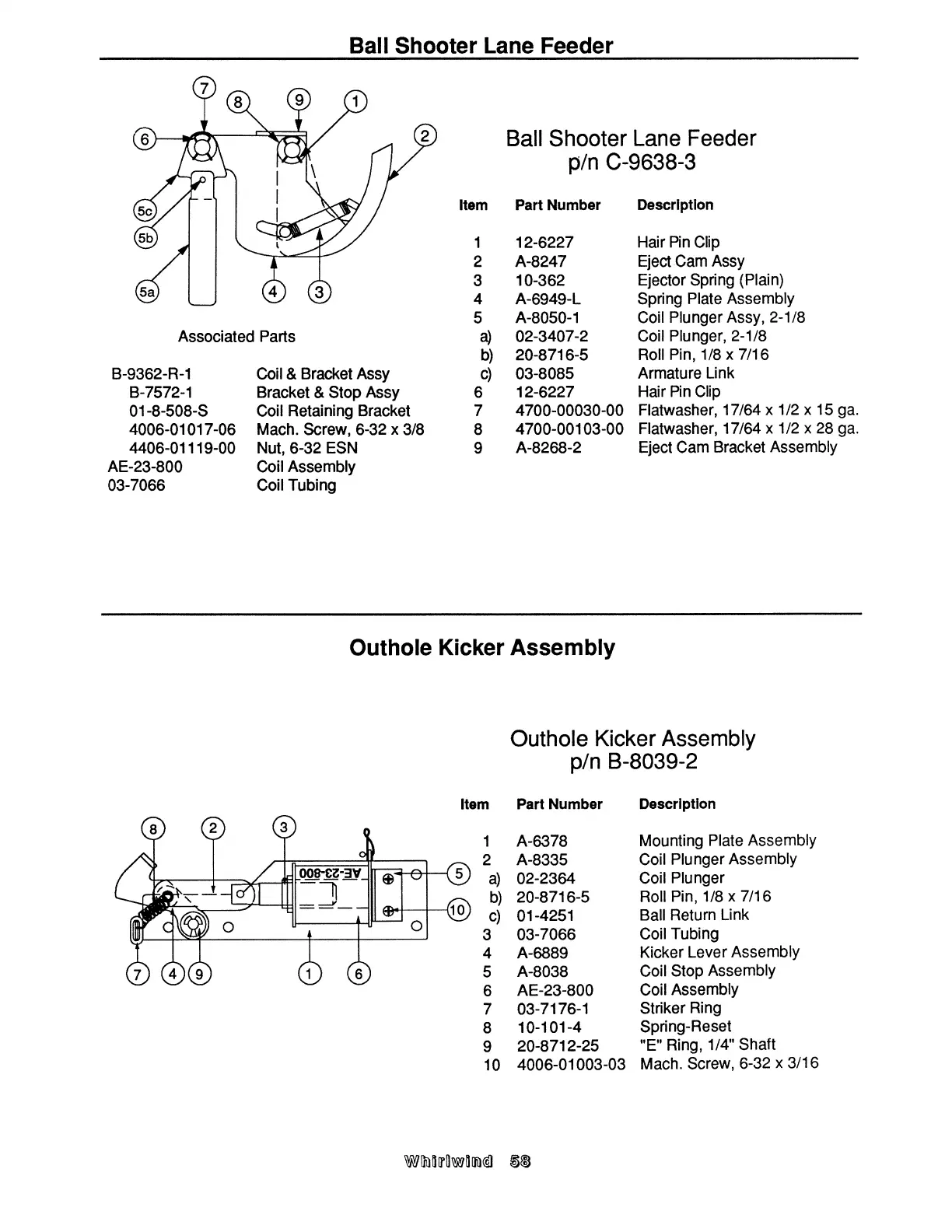

Williams Electronics WHIRLWIND - Ball Shooter Lane Feeder; Outhole Kicker Assembly

Ball
Shooter
Lane
Feeder
9
9
Ball
Shooter
Lane Feeder
p/n
C-9638-3
@
Item Part Number
Description
53 1
12-6227
Hair
Pin
Clip
2 A-8247 Eject
Cam
Assy
® 0
9
3
10-362 Ejector
Spring
(Plain)
K...)
4
A-6949-L
Spring
Plate Assembly
5
A—8050-1
Coil
Plunger
Assy, 2-1/8
Associated Parts
a)
02-3407-2
Coil
Plunger,
2-1/8
b)
20-8716-5
Roll
Pin, 1/8 x
7/16
B-9362-R-1 Coil & Bracket
Assy c) 03-8085
Armature Link
B-7572-1 Bracket
& Stop
Assy
6
12-6227
Hair
Pin Clip
01-8-508-S Coil
Retaining
Bracket 7
4700-00030-00
Flatwasher,
17/64
x 1/2
x 15
ga.
4006-01017-06
Mach. Screw, 6-32
x
3/8 8
4700-00103-00
Flatwasher,
17/64
x 1/2 x 28 ga.
4406-01119-00
Nut,
6-32
ESN
9
A-8268-2
Eject Cam
Bracket Assembly
AE-23-800
Coil
Assembly
03-7066 Coil
Tubing
Outhole
Kicker
Assembly
Outhole
Kicker
Assembly
p/n
B-8039-2
Item Part Number
Description
1 A-6378
Mounting
Plate
Assembly
2 A-8335 Coil
Plunger
Assembly
a)
02-2364
Coil
Plunger
b)
20-8716-5
Roll
Pin,
1/8 x
7/16
c) 01-4251
Ball
Return
Link
3
03-7066
Coil
Tubing
4
A-6889
Kicker
Lever
Assembly
5
A-8038
Coil
Stop
Assembly
6
AE-23-800
Coil
Assembly
7
03-7176-1
Striker
Ring
8
10-101-4
Spring-Reset
9
20-8712-25
"E"
Ring,
1/4"
Shaft
10 4006-01003-03
Mach.
Screw,
6-32
x 3/16
