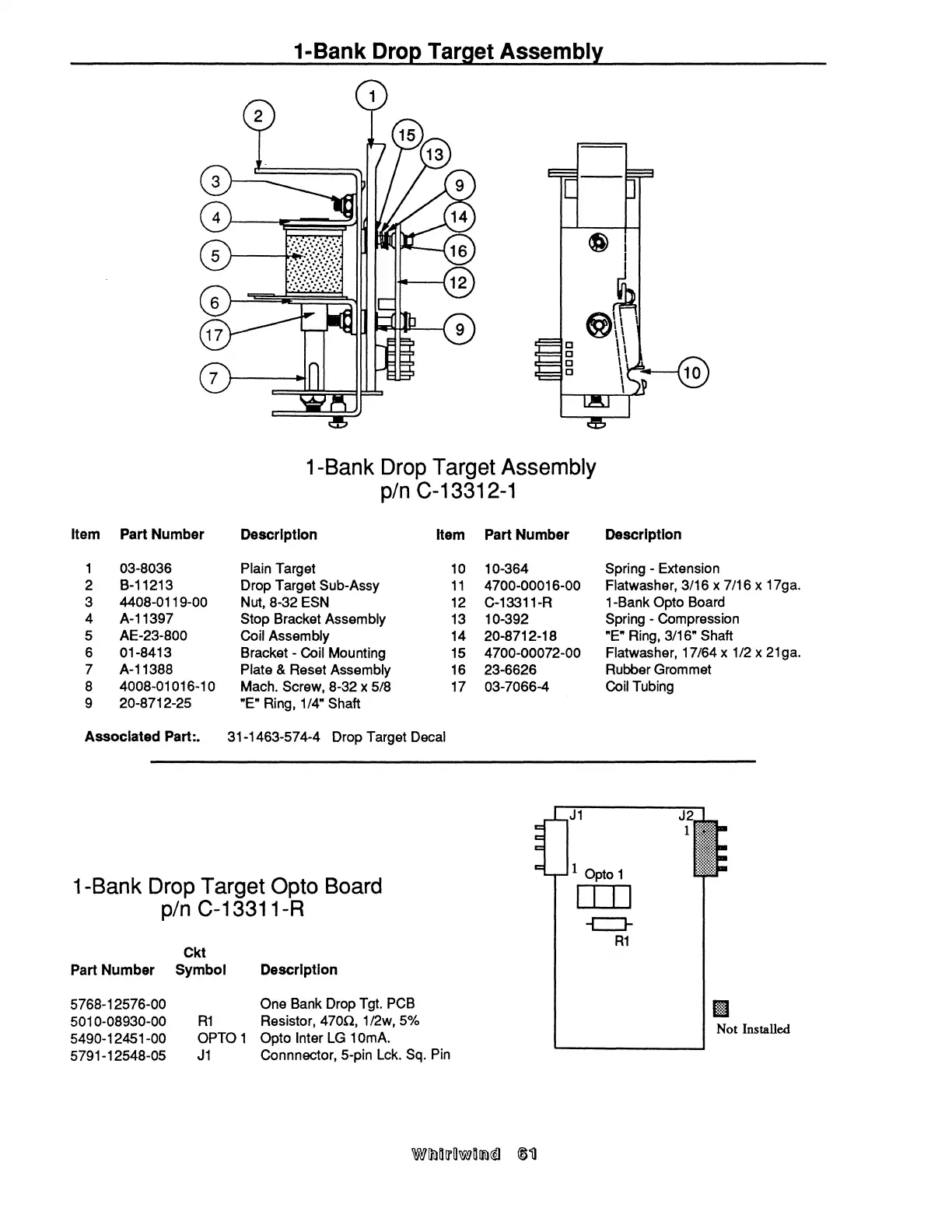

Williams Electronics WHIRLWIND - 1-Bank Drop Target Assembly; 1-Bank Drop Target Opto Board

1-Bank
Drop
Target
Assembly
1-Bank
Drop Target
Assembly
CIEICIU
p/n
C-13312-1
item Part Number
Description
item Part Number
Description
1 03-8036
Plain Target
10 10-364
Spring
-
Extension
2 B-11213
Drop Target Sub-Assy
11 4700-00016-00 Flatwasher,
3/16 x 7/16
x 17ga.
3 4408-0119-00
Nut,
8-32 ESN
12 C-13311-R
1-Bank
Opto Board
4
A-11397 Stop
Bracket Assembly
13 10-392
Spring
-
Compression
5 AE-23-800
Coil Assembly
14
20-8712-18 "E"
Ring,
3/16"
Shaft
6 01-8413 Bracket
-
Coil
Mounting 15 4700-00072-00
Flatwasher,
17/64
x 1/2
x 21ga.
7 A-11388 Plate
& Reset
Assembly 16 23-6626
Rubber
Grommet
8
4008-01016-10
Mach.
Screw, 8-32
x 5/8 17 03-7066-4
Coil Tubing
9
20-8712-25
"E" Ring, 1/4"
Shaft
Associated Part:.
31 -1463-574-4 Drop Target
Decal
J1
1
Opto
1
1 -Bank Drop
Target Opto Board
[ED
p/n
C-1331
1-R
R1
Part
Number
5768-12576-00
5010-08930-00
5490-12451
-00
5791-12548-05
ckt
Symbol
R1
OPTO 1
J1
Description
One
Bank Drop
Tgt. PCB
Resistor,
4709, 1/2w,
5%
Opto
inter LG 10mA.
Connnector,
5-pin
Lck. Sq.
Pin
Not Installed
Wlmtiirimvzmmcéi 611
