4.

PINBALL

GAME

ASSEMBLY

INSTRUCTIONS

Open

the

shipping

container;

remove

all

cartons,

parts,

and

other

items,

and

set

them

aside.

Place

the

cabinet

on

a

support

and

attach

rear

legs

(after

installing

the

rear

leg

spacers

on

the

shaft

of

the

leg

levellers),

using

leg

bolts.

Rear

leg

spacers,

leg

levellers

and

leg

bolts

are

provided

among

the

parts

in

the

cash

box.

Attach

the

front

legs

(after

installing

leg

levellers),

using

leg

bolts.

See

Figure

3

for

details.

DQQVQGS

>

Approx

psghie

Leg

Leveller

.

Shaﬂ

A"9'°'

Foot

Pad

6

-

7

Degrees

/

4422-01

1

17-00

Leg

Spacer

See

02_

4341

Detail

View-

Leg

Leveﬂer

Detail

View

‘*\.

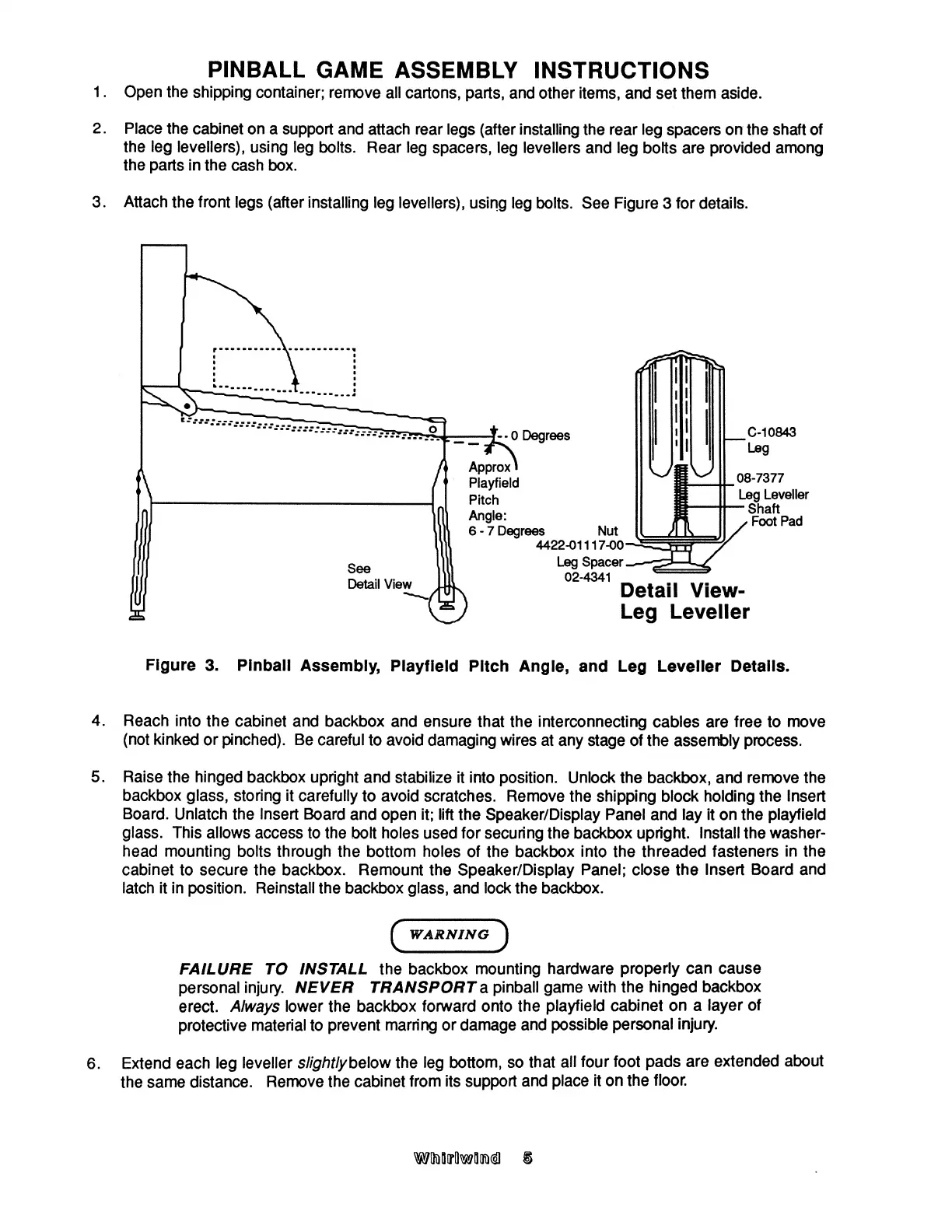

Figure

3.

Pinball

Assembly,

Playfield

Pitch

Angle,

and

Leg

Leveller

Details.

Reach

into

the

cabinet

and

backbox

and

ensure

that

the

interconnecting

cables

are

free

to

move

(not

kinked

or

pinched).

Be

careful

to

avoid

damaging

wires

at

any

stage

of

the

assembly

process.

Raise

the

hinged

backbox

upright

and

stabilize

it

into

position.

Unlock

the

backbox,

and

remove

the

backbox

glass,

storing

it

carefully

to

avoid

scratches.

Remove

the

shipping

block

holding

the

Insert

Board.

Unlatch

the

insert

Board

and

open

it;

lift

the

Speaker/Display

Panel

and

lay

it

on

the

playfield

glass.

This

allows

access

to

the

bolt

holes

used

for

securing

the

backbox

upright.

Install

the

washer-

head

mounting

bolts

through

the

bottom

holes

of

the

backbox

into

the

threaded

fasteners

in

the

cabinet

to

secure

the

backbox.

Remount

the

Speaker/Display

Panel;

close

the

Insert

Board

and

latch

it

in

position.

Reinstall

the

backbox

glass,

and

lock

the

backbox.

(

WARNING

D

FAILURE

TO

INSTALL

the

backbox

mounting

hardware

properly

can

cause

personal

injury.

NEVER

TRANSPORTa

pinball

game

with

the

hinged

backbox

erect.

Always

lower

the

backbox

fonivard

onto

the

playfield

cabinet

on

a

layer

of

protective

material

to

prevent

marring

or

damage

and

possible

personal

injury.

Extend

each

leg

leveller

slightlybelow

the

leg

bottom,

so

that

all

four

foot

pads

are

extended

about

the

same

distance.

Remove

the

cabinet

from

its

support

and

place

it

on

the

floor.

Wllnmrllwiltrncrél
