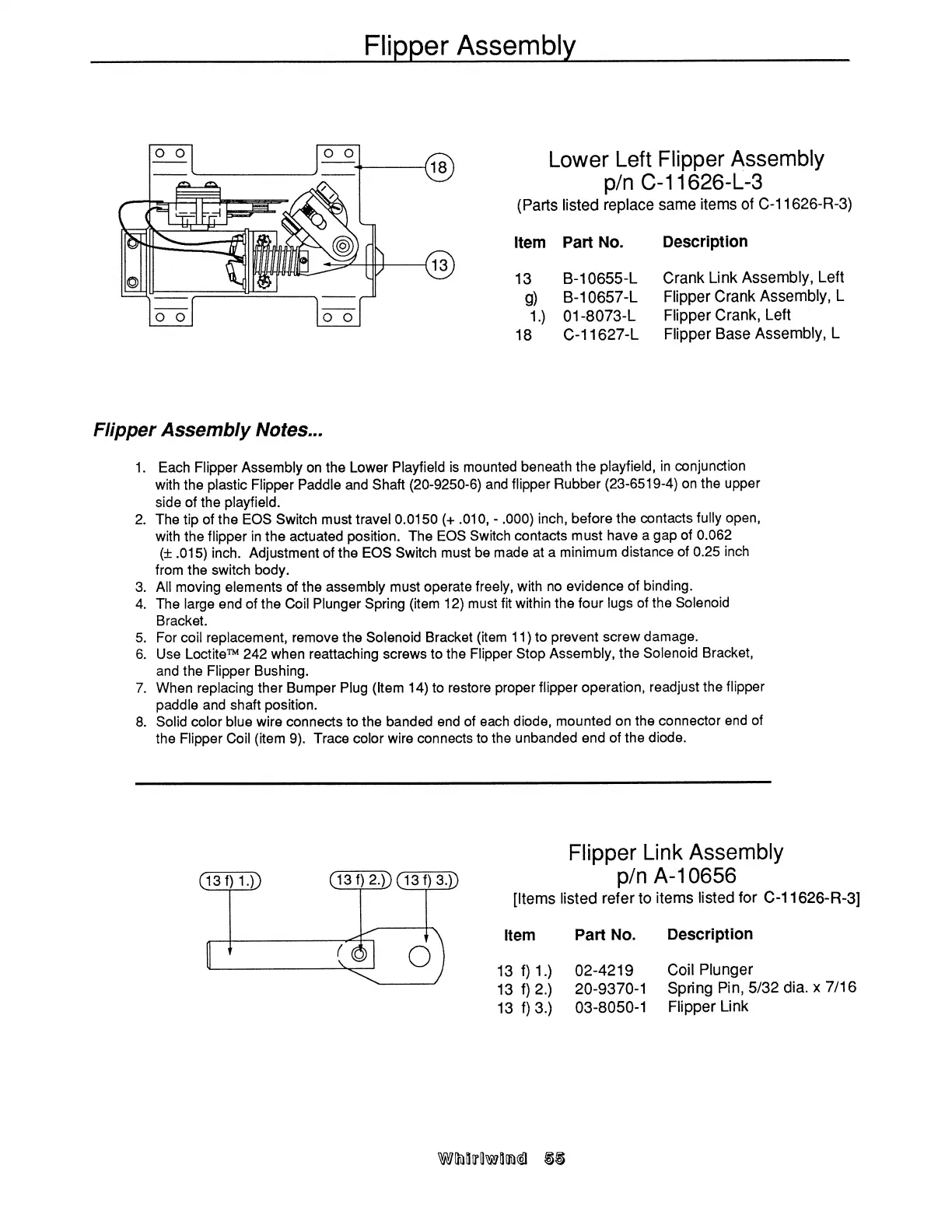

Williams Electronics WHIRLWIND - Lower Left Flipper Assembly; Flipper Link Assembly

Flipper
Assembly
Lower
Left
Flipper
Assembly
p/n
C—11626—L—3
(Parts listed
replace
same
items of
C—11626-R-3)
Item
Part
No.
Description
13 B-10655-L
Crank
Link
Assembly,
Left
g)
B-10657—L
Flipper
Crank
Assembly,
L
1.)
01-8073-L
Flipper
Crank,
Left
18
C-11627-L
Flipper
Base
Assembly,
L
Flipper Assembly
Notes...
1. Each Flipper Assembly on the Lower
Playfield
is mounted
beneath
the
playfield,
in
conjunction
with the plastic Flipper Paddle and
Shaft (20-9250-6)
and
flipper
Rubber
(23-6519-4)
on
the upper
side of the playfield.
The tip of the EOS Switch
must travel 0.0150
(+ .010,
-
.000)
inch,
before
the
contacts
fully
open,
with the flipper
in the actuated position.
The EOS
Switch
contacts
must
have
a gap
of 0.062
(1 .015) inch.
Adjustment of the
EOS Switch
must be
made at
a minimum
distance
of 0.25
inch
from the switch body.
All moving elements of the assembly
must operate
freely,
with no
evidence
of binding.
The large end of
the Coil Plunger Spring
(item 12) must
fit within
the four
lugs
of the
Solenoid
Bracket.
For coil replacement,
remove the Solenoid
Bracket (item
11) to prevent
screw
damage.
Use Loctitem 242 when reattaching
screws to
the Flipper Stop
Assembly,
the Solenoid
Bracket,
and the Flipper Bushing.
When replacing
ther Bumper Plug (item
14) to restore proper
flipper
operation,
readjust
the
flipper
paddle and
shaft position.
Solid color blue wire connects
to the banded
end of each
diode, mounted
on the
connector
end of
the Flipper Coil (item 9). Trace color
wire connects
to the unbanded
end
of the
diode.
Flipper
Link
Assembly
131)
1.)
(131) 2.9
(131) 3.3
p/n A-10656
[Items
listed
refer to
items
listed
for
C-11626-R-3]
,/
(
Item
Part
No.
Description
1
(
O
\
13
1)
1.) 02-4219
Coil
Plunger
13 1)
2.)
20-9370-1
Spring
Pin, 5/32
dia.
x
7/16
13 1) 3.)
03-8050-1
Flipper
Link
Wlmtrfl wmmcél
55
