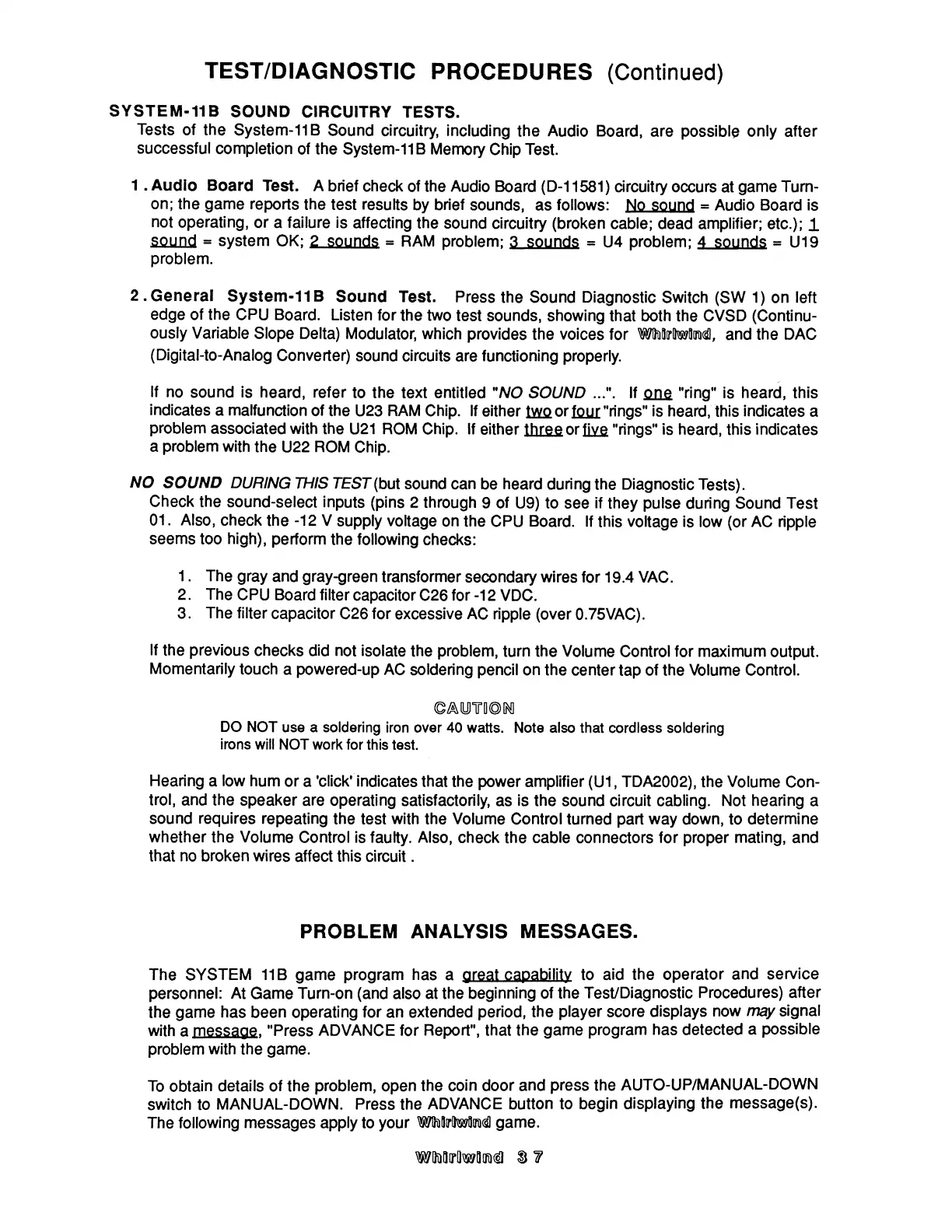

TEST/DIAGNOSTIC
PROCEDURES
(Continued)
SYSTEM-11B
SOUND
CIRCUITRY
TESTS.
Tests
of
the
System-11B
Sound
circuitry,
including
the
Audio
Board,
are
possible
only
after
successful
completion
of
the
System-11B
Memory
Chip
Test.
1
.Audlo
Board
Test.
A
brief
check
of
the
Audio
Board
(D-11581)
circuitry
occurs
at
game
Turn-
on; the
game
reports
the
test
results
by
brief
sounds,
as
follows:
_N9_sQ_und
=
Audio
Board
is
not
operating,
or
a
failure
is
affecting
the
sound
circuitry
(broken
cable;
dead
amplifier;
etc.);
_1_
sound
=
system
OK;
2_sQun_d_s
=
RAM
problem;
3_sQund§
=
U4
problem;
_§Q_|,1
=
U19
problem.
2
.General
System-11B
Sound
Test.
Press
the
Sound
Diagnostic
Switch
(SW
1)
on
left
edge
of
the
CPU
Board.
Listen
for
the
two
test
sounds,
showing
that
both
the
CVSD
(Continu-
ously
Variable
Slope
Delta)
Modulator,
which
provides
the
voices
for
Whirlwind,
and
the
DAC
(Digital—to—Analog
Converter)
sound
circuits
are
functioning
properly.
If
no
sound
is
heard,
refer
to
the
text
entitled
"NO
SOUND
indicates
a
malfunction
of
the
U23
RAM
Chip.
If
either
1ymor19_u1:"rings"
is
heard,’
this
indicates
a
problem
associated
with
the
U21
ROM
Chip.
If
either
mgeeor ye
"rings"
is
heard,
this
indicates
a
problem
with
the
U22
ROM
Chip.
N0
SOUND
DURING
THIS
TEST(but
sound
can
be
heard
during
the
Diagnostic
Tests).
Check
the
sound-select
inputs
(pins
2
through
9
of
U9)
to
see
if
they
pulse
during
Sound
Test
01.
Also,
check
the
-12
V
supply
voltage
on
the
CPU
Board.
If
this
voltage
is
low
(or
AC
ripple
seems
too
high),
perform
the
following
checks:
1
.
The
gray
and
gray-green
transformer
secondary
wires
for
19.4
VAC.
2.
The
CPU
Board
filter
capacitor
C26
for
-12
VDC.
3.
The
filter
capacitor
C26
for
excessive
AC
ripple
(over
0.75VAC).
If
the
previous
checks
did
not
isolate
the
problem,
turn
the
Volume
Control
for
maximum
output.
Momentarily
touch
a
powered-up
AC
soldering
pencil
on
the
center
tap
of the
Volume
Control.
@AU'iT|]©lNJ
DO
NOT
use
a
soldering
iron
over
40
watts.
Note
also
that
cordless
soldering
irons
will
NOT
work
for
this
test.
Hearing
a
low
hum
or
a
'click'iindicates
that
the
power
amplifier
(U1,
TDA2002),
the
Volume
Con-
trol,
and
the
speaker
are
operating
satisfactorily,
as
is
the
sound
circuit
cabling.
Not
hearing
a
sound
requires
repeating
the
test
with
the
Volume
Control
turned
part
way
down,
to
determine
whether
the
Volume
Control
is
faulty.
Also,
check
the
cable
connectors
for
proper
mating,
and
that
no
broken
wires
affect
this
circuit
.
PROBLEM
ANALYSIS
MESSAGES.
The
SYSTEM
11B
game
program
has
a
gr_e_a1_gaQa_b1lj1y
to
aid
the
operator
and
service
personnel:
At
Game
Turn-on
(and
also
at
the
beginning
of
the
Test/Diagnostic
Procedures)
after
the
game
has
been
operating
for
an
extended
period,
the
player
score
displays
now
may
signal
with
a
message.
"Press
ADVANCE
for
Report",
that
the
game
program
has
detected
a
possible
problem
with
the
game.
To
obtain
details
of
the
problem,
open
the
coin
door
and
press
the
AUTO-UP/MANUAL-DOWN
switch
to
MANUAL-DOWN.
Press
the
ADVANCE
button
to
begin
displaying
the
message(s).
The
following
messages
apply
to
your
Wh rllwllnd
game.
W[in lf'[l\w[iltDCél
$3
7
