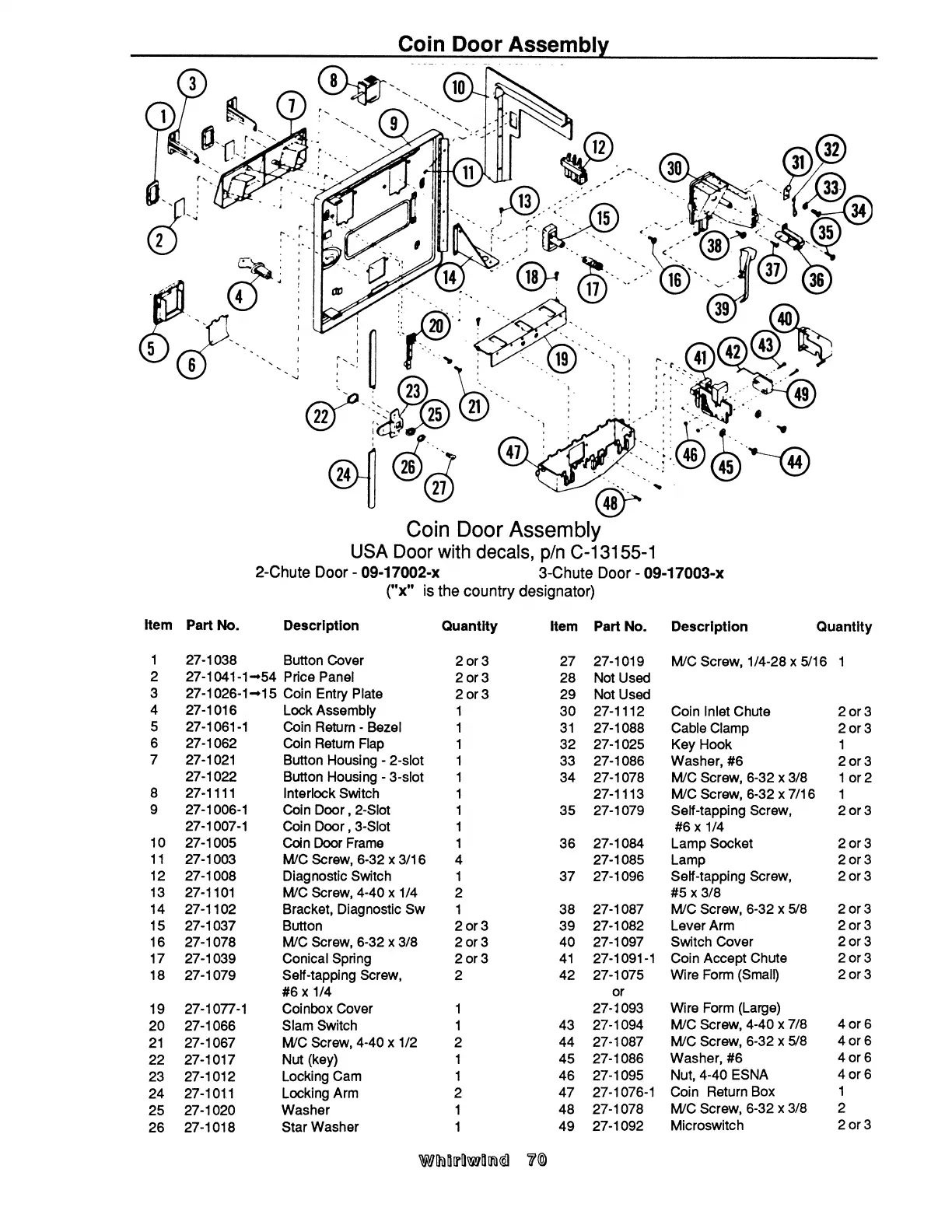

Williams Electronics WHIRLWIND - Coin Door Assembly

Coin
Door
Assembly
Coin
Door Assembly
USA
Door with
decals,
p/n
C-13155-1
2-Chute Door
-
09-17002-x
3-Chute
Door
-
09-17003-x
("x"
is
the
country designator)
Item
Part
No.
Description
Quantity
Item Part No.
Description
Quantity
1 27-1038
Button Cover
2 or 3
27 27-1019
M/C Screw, 1/4-28 x 5/16 1
2
27-1041-1-54
Price Panel
2 or3
28 Not Used
3 27-1026-1-15
Coin Entry
Plate
2 or 3
29
Not Used
4 27-1016
Lock
Assembly
1
30 27-1112
Coin Inlet
Chute 2 or 3
5
27-1061-1
Coin
Return
-
Bezel
1
31 27-1088
Cable Clamp 2
or 3
6
27-1062
Coin Return
Flap
1
32 27-1025
Key Hook 1
7
27-1021
Button
Housing
-
2-slot 1
33 27-1086
Washer, #6
2 or 3
27-1022
Button Housing
-
3-slot
1
34
27-1078 M/C
Screw, 6-32 x 3/8 1 or 2
8
27-1111
Interlock Switch
1
27-1113 M/C Screw, 6-32 x 7/16 1
9
27-1006-1
Coin Door,
2-Slot
1
35 27-1079 Self-tapping Screw, 2 or 3
27-1007-1
Coin Door, 3-Slot
1
#6 x
1/4
10
27-1005
Coin Door Frame
1
36 27-1084 Lamp Socket
2 or 3
11 27-1003
M/C Screw,
6-32 x 3/16 4
27-1085 Lamp
2 or 3
12
27-1008
Diagnostic Switch
1 37 27-1096
Self-tapping Screw, 2
or 3
13 27-1101
M/C Screw, 4-40 x 1/4
2
#5 x 3/8
14 27-1102 Bracket,
Diagnostic Sw 1 38 27-1087
M/C Screw,
6-32 x 5/8
2 or 3
15
27-1037 Button 2 or 3 39
27-1082
Lever Arm
2 or
3
16 27-1078
M/C
Screw, 6-32 x 3/8 2 or 3 40
27-1097 Switch
Cover
2 or
3
17 27-1039 Conical
Spring 2 or 3 41 27-1091-1
Coin Accept
Chute
2 or
3
18 27-1079
Self-tapping Screw, 2
42 27-1075
Wire Form (Small)
2 or 3
#6 x 1/4
or
19 27-1077-1
Coinbox
Cover 1
27-1093
Wire Form
(Large)
20
27-1066
Slam Switch
1
43
27-1094
M/C
Screw,
4-40
x 7/8
4
or 6
21
27-1067
M/C
Screw, 4-40 x 1/2
2
44 27-1087
M/C
Screw,
6-32
x 5/8
4
or 6
22 27-1017
Nut (key)
1
45 27-1086
Washer,
#6
4 or 6
23
27-1012
Locking
Cam
1
46
27-1095
Nut,
4-40
ESNA
4 or
6
24 27-101.1
Locking
Arm
2
47
27-1076-1
Coin
Return
Box
1
25 27-1020
Washer
1
48
27-1078
M/C
Screw,
6-32
x 3/8
2
26 27-1018
Star Washer
1
49
27-1092
Microswitch
2 or 3
Wliuillrllxmilimrril
70
