Installation, Operating and Maintenance
Instructions blueMatic EAV
13
1

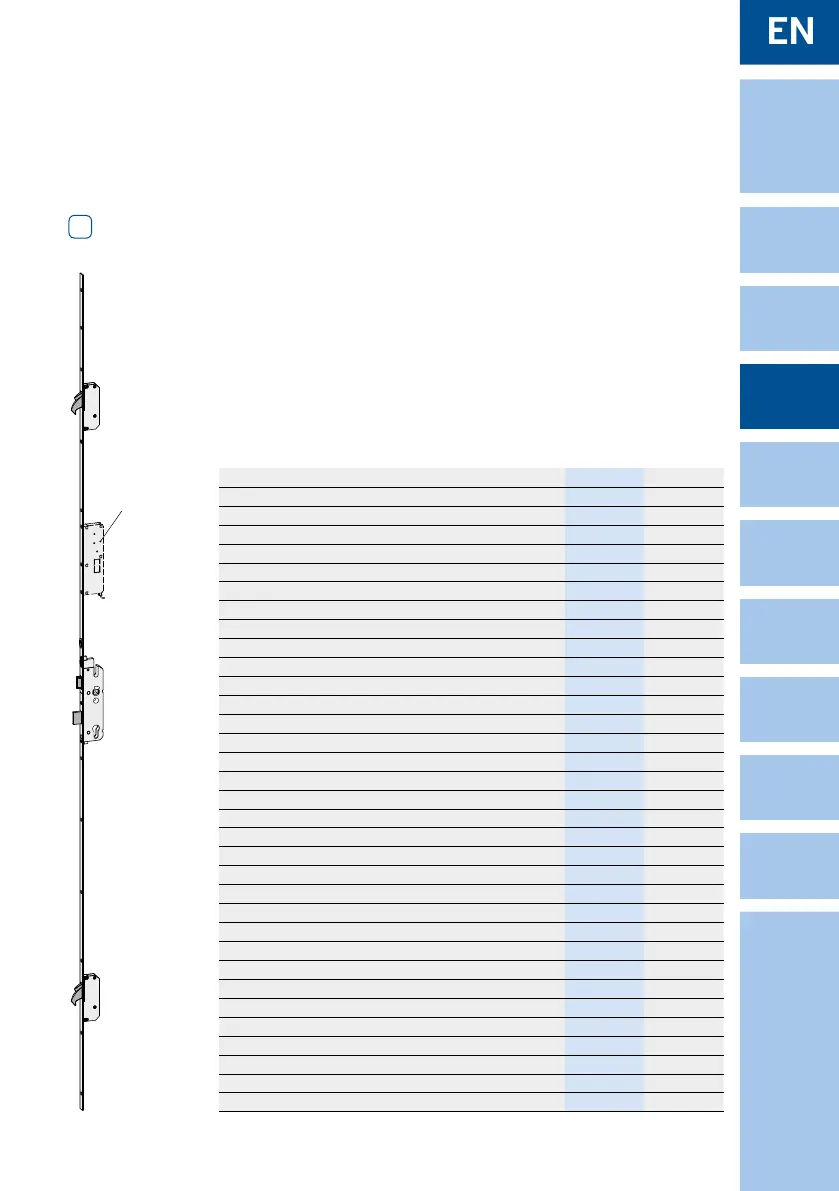

autoLock AV3 Automatic locking system
The autoLock AV3 from Winkhaus is an automatic multipoint lo-
cking system with independently acting hooks for claw action and
sealing elements for a dynamic contact pressure.
This is prepared for installation of the prole cylinder correspon-
ding to EN 1303 (corrosion class 3) with closed position of ± 45°,
in each case with smooth-running free-to-turn function or rigid
closed position.
Part Description DIN right DIN left
STV-AV3-F1660 L79/35 A9 92/8 M2 RS/LS MC 5005446 5005445
STV-AV3-F1660 L79/35 A9 92/8 M2 RS/LS PAL MC 5005448 5005447
STV-AV3-F1660 L79/35 A9 94/8 KABA M2 RS/LS MC 5022444 5022445
STV-AV3-F1660 L79/40 A9 92/8 M2 RS/LS MC 5005466 5005465
STV-AV3-F1660 L79/40 A9 92/8 M4 RS/LS MC 5042994 5042995
STV-AV3-F1660 L79/45 A9 92/8 M2 RS/LS MC 5005472 5005471
STV-AV3-F1660 L79/45 A9 92/8 M2 RS/LS GR 5014286 5014285
STV-AV3-F1660 L79/45 A9 92/8 M2K RS/LS MC 5018716 5018715
STV-AV3-F1660 L79/45 A9 92/10 M2 RS/LS MC 5005470 5005469
STV-AV3-F1660 L79/45 A9 94/8 KABA M2 RS/LS MC 5008864 5008863
STV-AV3-F1660 L79/50 A9 92/8 M2 RS/LS MC 5010013 5010014
STV-AV3-F1660 L79/50 A9 92/10 M2 RS/LS MC 5007837 5007836
STV-AV3-F1660 L79/50 A9 94/8 KABA M2 RS/LS MC 5016748 5016749
STV-AV3-F1660 L79/50 A9 94/10 KABA M2 RS/LS MC 5014960 5014961
STV-AV3-F1660 L79/55 A9 92/8 M2 RS/LS MC 5005474 5005473
STV-AV3-F1660 L79/55 A9 92/10 M2 RS/LS MC 5014875 5014874
STV-AV3-F1660 L79/55 A9 94/8 KABA M2 RS/LS MC 5022448 5022450
STV-AV3-F1660 L79/65 A9 92/8 M2 RS/LS MC 5005477 5005476
STV-AV3-F1660 L79/65 A9 92/10 M2 RS/LS MC 5007835 5007833
STV-AV3-F1660 L79/65 A9 92/10 M2 RS/LS GR 5038675 5038676
STV-AV3-F1660 L79/65 A9 94/8 KABA M2 RS/LS MC 5009371 5009370
STV-AV3-F1660 L79/80 A9 94/8 KABA M2 RS/LS MC 5009373 5009372
STV-AV3-F16162 L79/35 A9 92/8 M2 RS/LS MC 5031843 5031844
STV-AV3-F16162 L79/40 A9 92/8 M2 RS/LS MC 5025840 5025842
STV-AV3-F16162 L79/45 A9 92/8 M2 RS/LS MC 5010689 5010688
STV-AV3-F1662 L79/35 A9 92/8 M2 RS/LS MC 5014935 5014936
STV-AV3-F1662 L79/35 A9 92/8 M2 RS/LS PAL MC 5006068 5006067
STV-AV3-F1662 L79/35 A9 94/8 KABA M2 RS/LS MC 5022446 5022447
STV-AV3-F1662 L79/40 A9 92/10 M2 RS/LS MC 5014870 5014871
STV-AV3-F1662 L79/40 A9 92/8 M2 RS/LS MC 5014806 5014807
STV-AV3-F1662 L79/40 A9 92/8 M2 RS/LS GR 5017263 5017264
STV-AV3-F1662 L79/45 A9 92/8 M2 RS/LS MC 5007906 5007905
STV-AV3-F1662 L79/45 A9 94/8 KABA M2 RS/LS MC 5011749 5011748
Optional elec-
trical motor
housing
(for electronic
latch & hook
retraction)
