EN
Print-no. 504 474 4
01/2017
Installation, Operating and Maintenance
Instructions blueMatic EAV
18
Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de
Subject to technical changes
2

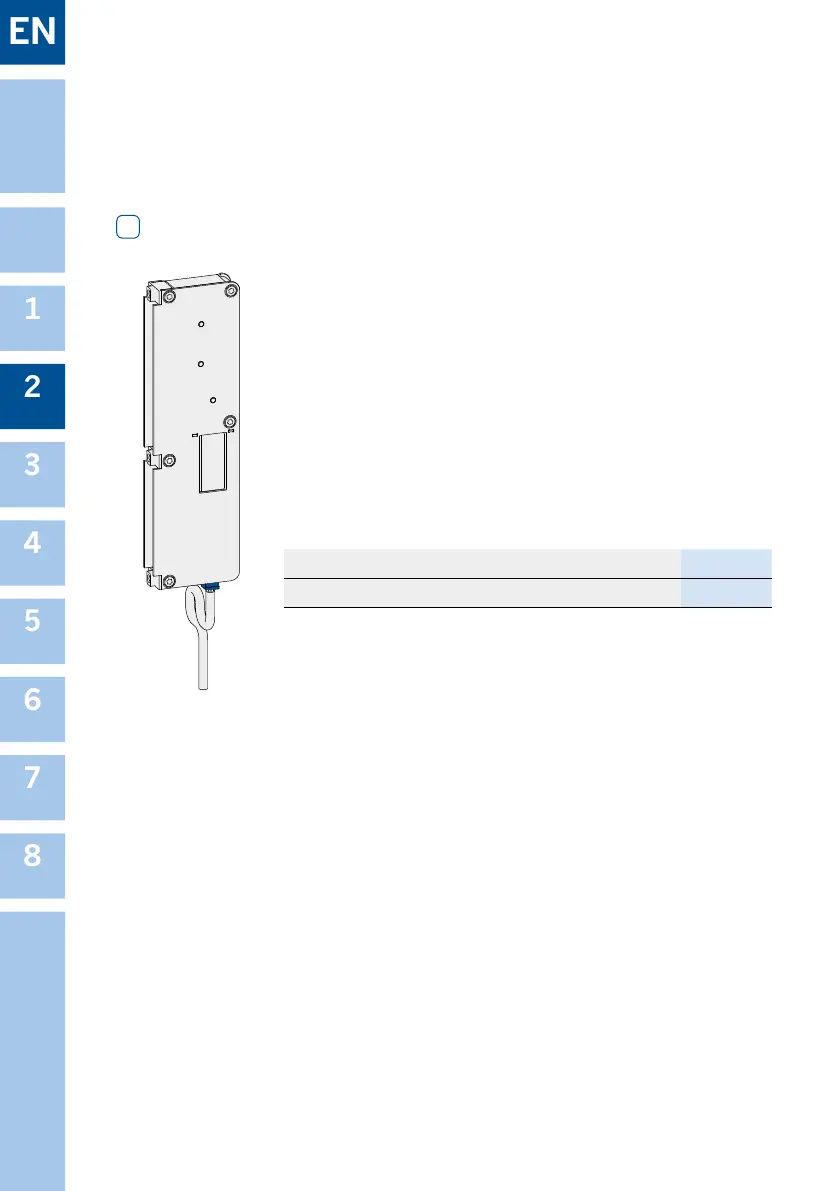

Motor housing
Motor housing for powered unlocking, including control, but wi-
thout cable
• for transponder or wireless remote control
• switching unit for swing door opener via oating contact
• available separate (for retrotting mechanical locks autoLock
AV3 and autoLock AV2)
Motor housings are suitable for motor extension of the autoLock
AV3 (also for autoLock AV2) up to blueMatic EAV3 (blueMatic
EAV2).
STV-MOTOR HOUSING EAV3 BL
1)
5009320
STV-MOTOR HOUSING EAV3 DREHTÜR BL
1) 2)
5009324
1)
to retrot simply screw to the autoLock AV... (automatic lo-
cking system)
CAUTION! Pay attention to left-handed thread!
2)
incl. signal (oating contact) for swing door opener
NOTICE!
Please observe the following instructions when using a swing door opener:
• Ensure that the motor can open the closing leaf at any time.
• After unlocking, the control unit sends a signal to the swing door opener which
must them open out immediately.
• If the automatic door drive is triggered at another point of time, malfunctions can
be caused.
• If the main hook is unlocked manually, the door may not be actuated electrically.
