Caution! Release the second retaining screw (e.g. during the
installation of the door frame into the reveal) when unhinge the
door sash! Insulate the wires not used!
Caution! Provide cable reserve of
about 3 - 5 cm for the spring tension
behind the sash part
of the cable
transition!
504474440
3
EN
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.de ∙ Subject to technical changes
blueMatic EAV Installation, Operating and
Maintenance Instructions

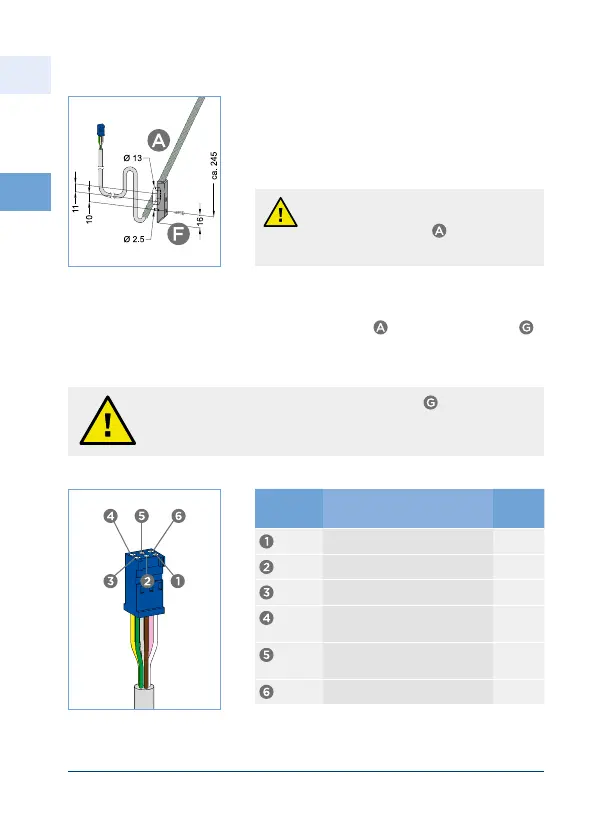

Figure 3.2-3: Detail
T-KÜ-T1 FT without
cover plate
• Complete the plug-in connection after
putting the door on its hinges
• Fix the sash part
with the fitting screw
Ø 3 x 20 mm (Figure 3.2-1)
• Install the cable for example within the
glazing chamber towards the motor housing;
install the rest of the cable for example within
the hollow section.
Figure 3.2-4: Cable assignment when used with blueMatic EAV
Wire
Cable assignment when
used with blueMatic EAV
Neces-
sary
white V DC yes
brown V (ground) yes
green Release signal yes
yellow optional for swing door
opener
yes
grey optional for swing door
opener
yes
pink not assigned no
