Cover plate for T-KÜ-T1 FT

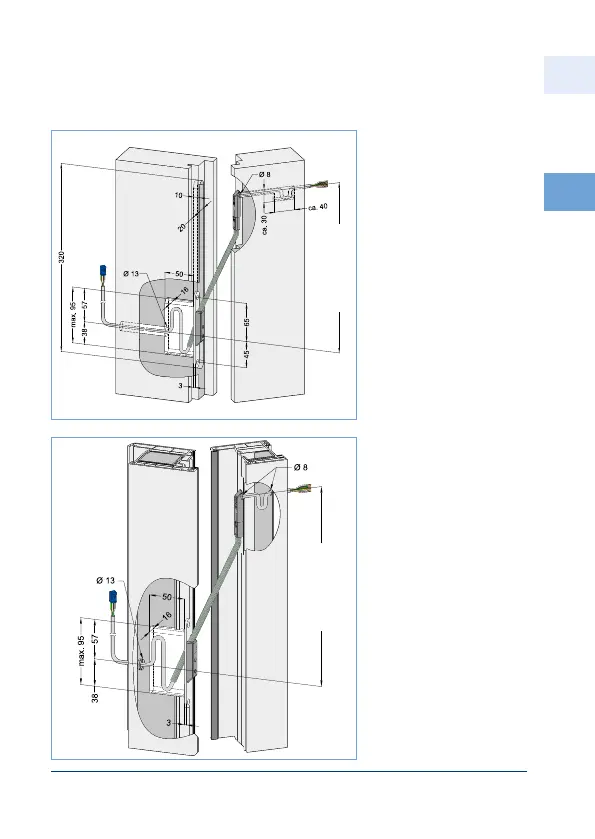

Figure 3.2-5:
Routing dimensions
T-KÜ-T1 FT + RT and
cover plate F20 in
Timber
Figure 3.2-6:
Routing dimensions
T-KÜ-T1 FT + RT and
cover plate F16 in plastic
Distance approx. 245Distance approx. 245
Under pre-tension!Under pre-tension!
Distance approx. 245Distance approx. 245
Under pre-tension!Under pre-tension!
