Winkhaus blueMatic EAV - Page 49

504474449
3
EN
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.de ∙ Subject to technical changes
blueMatic EAV Installation, Operating and
Maintenance Instructions

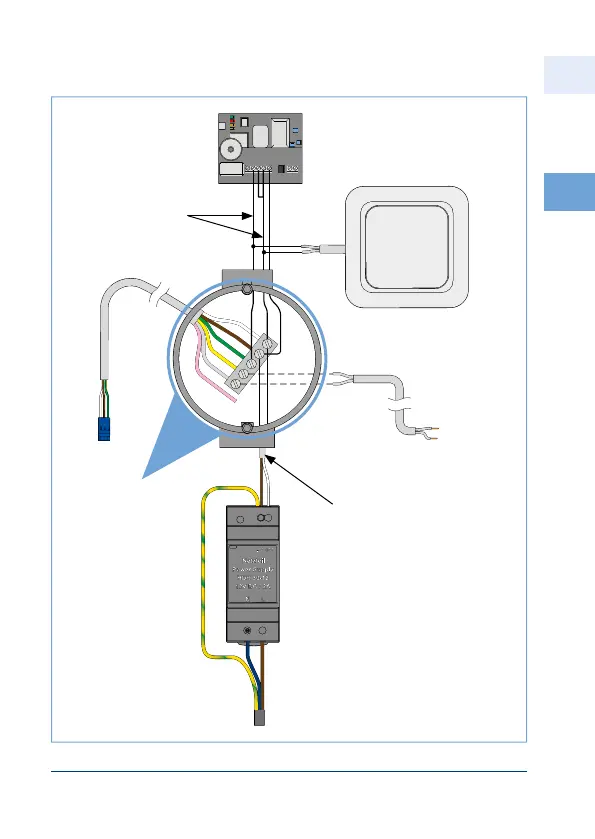

Figure 3.5.1-2: Installing the wireless receiver
"Open"
button
Release signal for
swing door opener
(optional), length
and cross section:
specification by
the manufacturer
of swing door
opener
to/from the
motor housing
**cable of 2 x 0.8 mm,
length of max. 40 m
e.g.
Connector
block
(via electrical
contractor)
**cable of 2 x 0.8 mm,
max. 100 m
(up to the last access
control system/up to
the last open button)
Recommendation:
flush-type box or
junction box for
cable connection
230 V AC
N L
- +
PE
** no necessary screened
cable
Wireless receiver
