blueMatic EAV Installation, Operating and
Maintenance Instructions

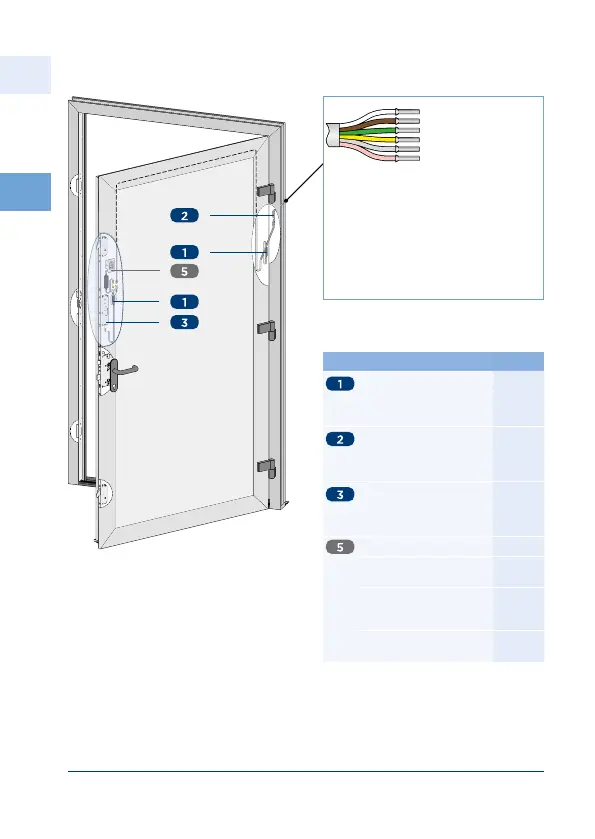

Figure 3.6.2-7: Installation blueMatic EAV with Fingerprint IDENCOM BioKey
INSIDE (sash side)
white   V DC
brown  V
green external opening signal
yellow
grey
pink (unscript)
}
signal swing door
opener
yellowgrey  output signal swing door
opener (optional) only by
motor housing swing door
greenwhite  input for external
potential-free contact
(eg unlocking via
intercom open button)
Notice! max  m extendable
(min  mm

)
Description Part-no.
Sash part cable transition
T-SET KÜ-T FT ZK-EAV
  Y  M including
Y-KABEL ZK FLÜGEL-EAV

Frame part cable transition
T-KÜ-T RT Kabel M for
external power supply
mounting on DIN rail

Motor housing EAV for
retrofitting mechanical
locking system AV
standard

Access control systems
ekey WH-EAV Set
Integra micro with App
ekey

Fingerprint IDENCOM
BioKey INSIDE Basic
without App
IDENCOM
 
Fingerprint IDENCOM
BioKey INSIDE with App
IDENCOM
 
