Wittenborg ES 7100 PLUS - Machine Cabinet

Product presentation
10.2011 ES 7100 PLUS 7
1
2
3
4
5
6
7
8
10
11
21
20
19
18
27
26 25
24 23 22
12
13 14
15
16 17
9

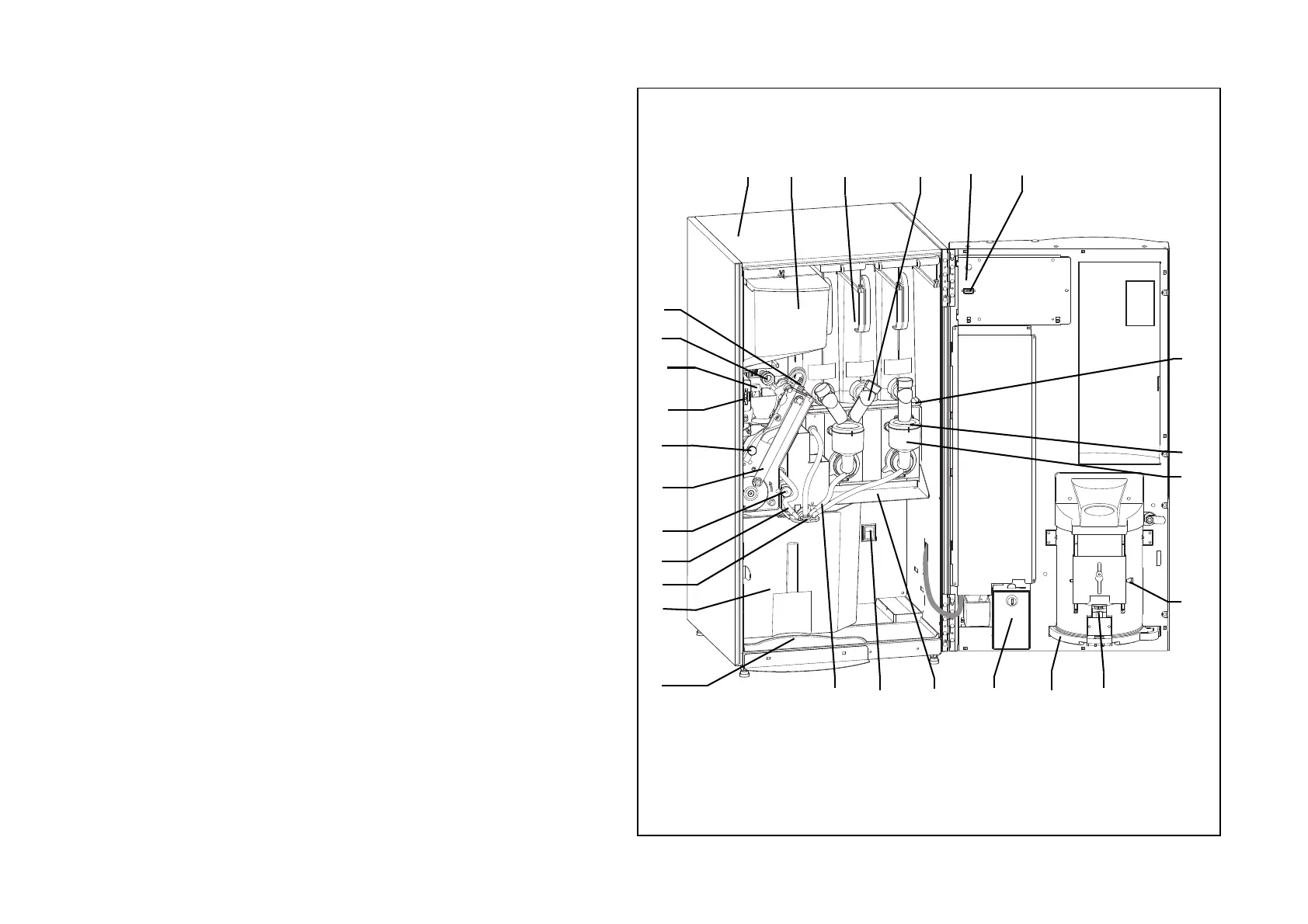

Machine cabinet (fig. 3):
1 Brewer inlet hose / brewer
piston hose
2 Adjusting knob for grinder
3 Coffee grinder
4 Door switch
5 Securing bolt for brewer
6Brewer
7 Securing bolt for bracket
for dispense head
8 Brewer outlet hose
9 Dispense head
10 Coffee waste containers
11 Base tray
12 Outlet hoses
13 Main switch
14 Ingredient waste shelf
15 Cash box (option)
16 Drip tray
17 Lock for drip tray
18 Retaining pin for cup
carrier
19 Mixing funnel with whipper
housing / powder trap
(behind)
20 Mixing funnel hood
21 Ingredient waste tray
22 RS232 connector
23 Up-key connector plug
connection (on CPU board
behind cover plate)
24 Outlet spout
25 Instant ingredient canister
26 Coffee bean canister
27 Cabinet
