Deep cleaning
40 ES 7100 PLUS 10.2011

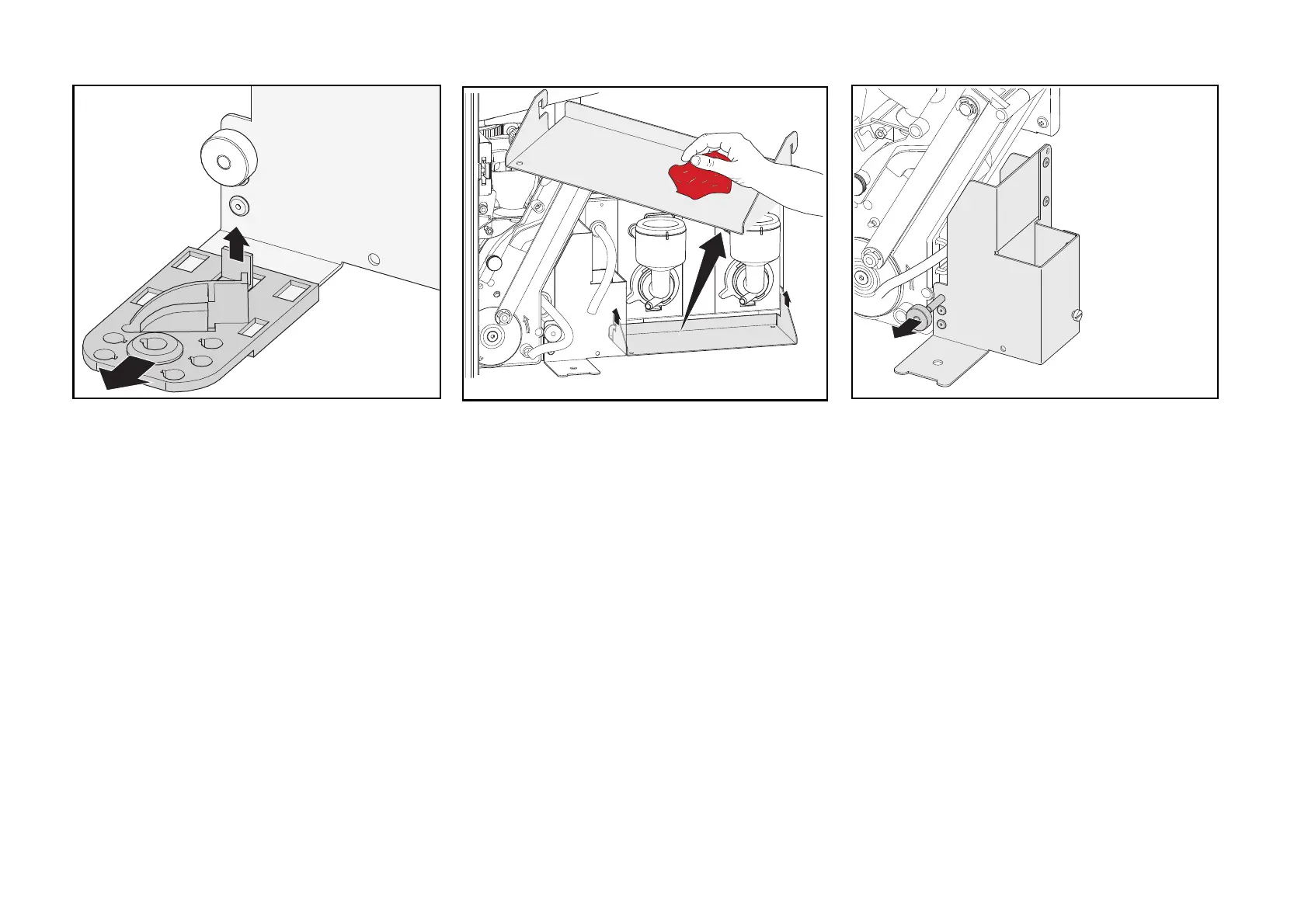

• Remove the dispense head by pulling it
forwards.
(fig. 32).
Cleaning the ingredient waste shelf
below instant ingredient mixers
• Lift off and wipe clean the ingredient
waste shelf with a moist cloth (fig. 33).
Removing the bracket for dispense
head
• Remove the bracket for dispense head by
loosening the securing bolt (fig. 34).
• Clean the bracket and wipe it dry.
32 33 34
