Wittenborg ES 7100 PLUS - Removing the Lower Filter

Adjustment and maintenance
76 ES 7100 PLUS 10.2011
Removing the lower filter

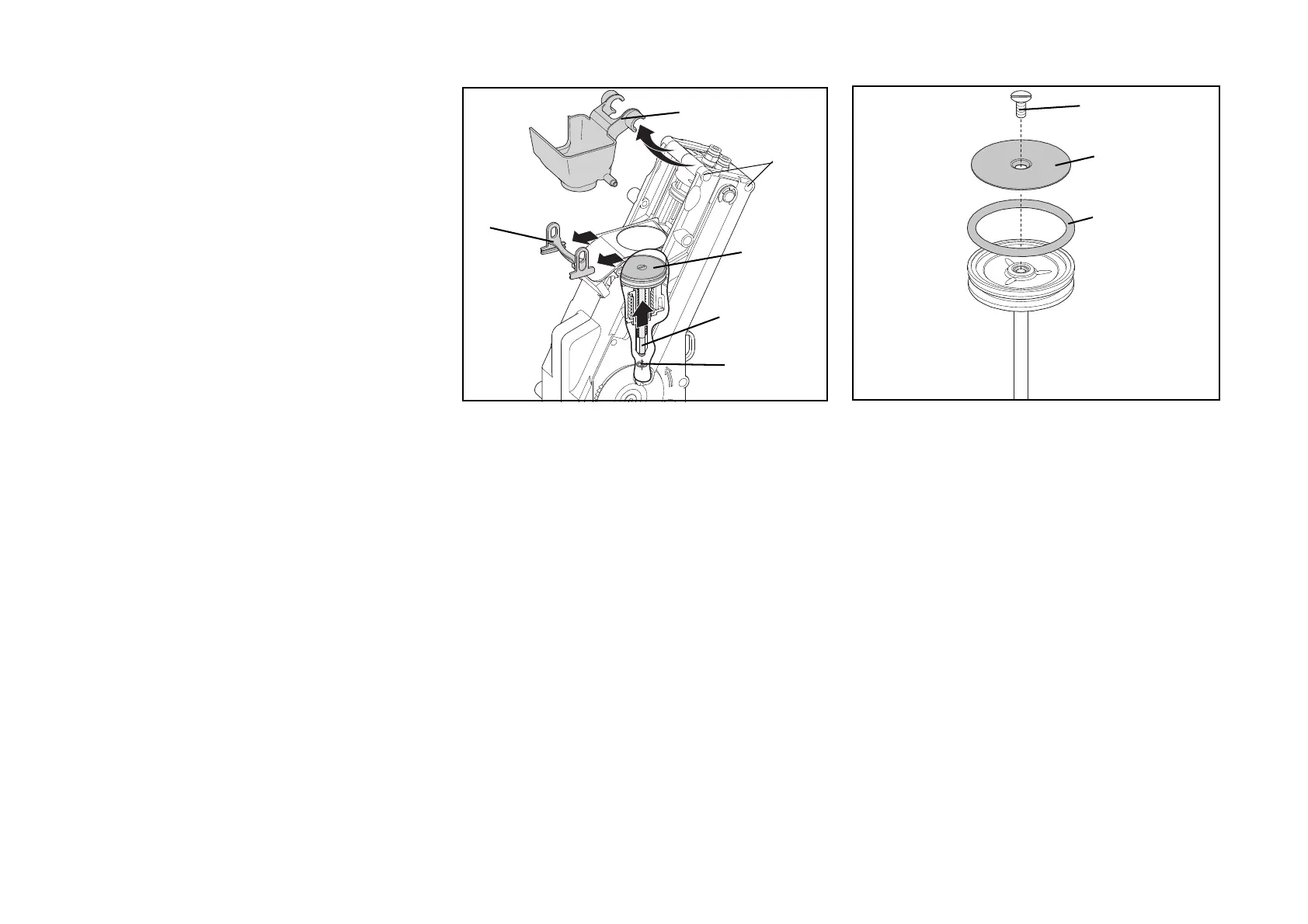

• Loosen the screws (a, fig. 65), enough to
release the coffee funnel.
• Remove the coffee funnel (b, fig. 65) by
snapping it off the frontmost spacer bar of
the brewer side parts and releasing the
side tabs from the brewer side parts.
• Remove the scraper (c, fig. 65) by sliding
it off the tracks at top of the brewing
chamber.
• Remove the lower piston snap ring (d, fig.
65) (retaining ring).
• Take the lower piston (e, fig. 65) out of
brewing chamber by pressing the lower
piston guide (f, fig. 65) from below of
brewing chamber.
• Disassemble the filter (g, fig. 66) and the
piston seal (h, fig. 66) by removing the
screw (i, fig. 66).
b
c
d
e
f
a
g
h
i
65 66
