Wittenborg ES 7100 PLUS - Cleaning the Instant Ingredient Dispensing System Components; Cleaning the Powder Trap

Deep cleaning
42 ES 7100 PLUS 10.2011
Cleaning the instant ingredient dis-
pensing system components

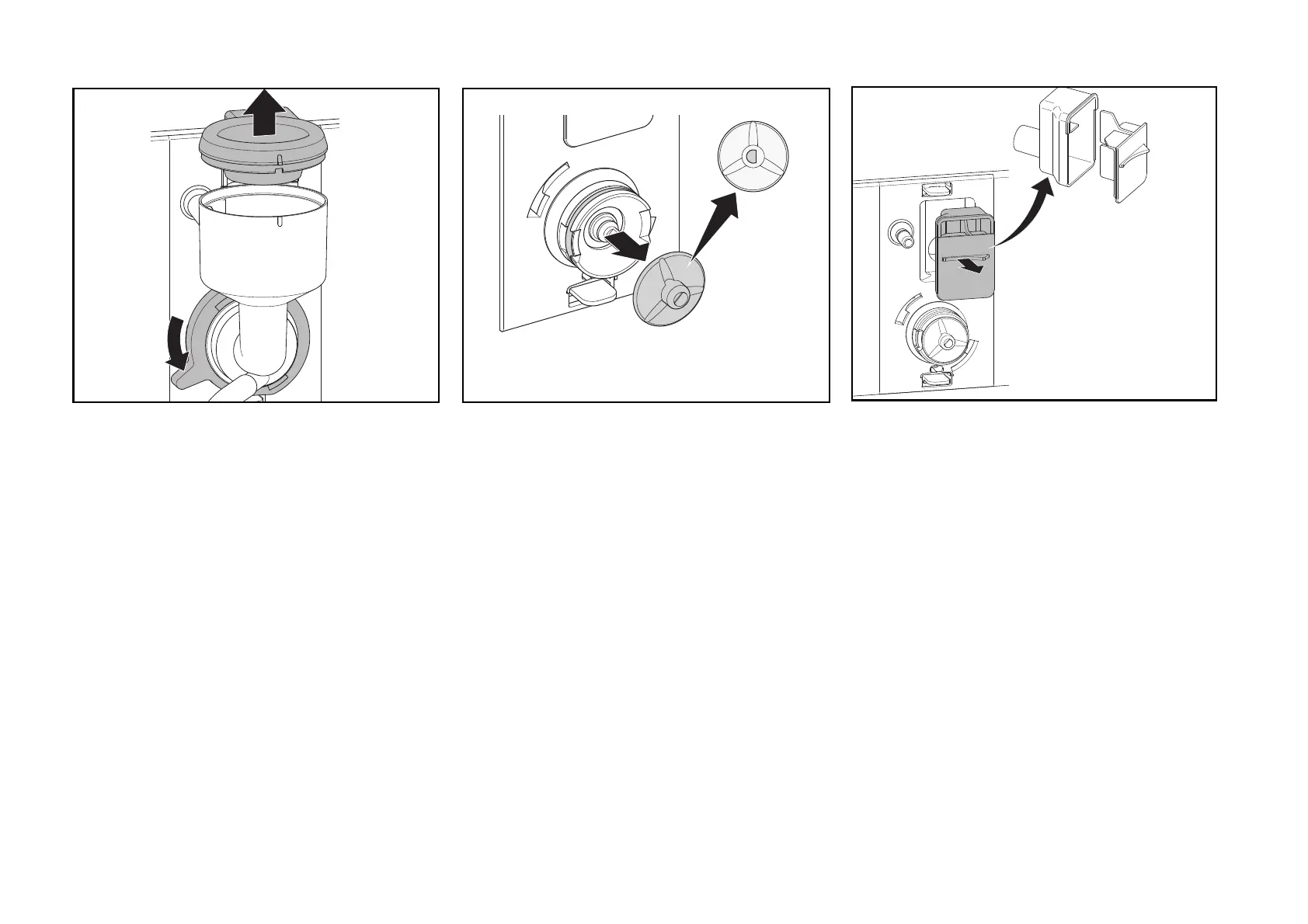

• Remove the mixing hood by lifting off
(fig. 38).
• Loosen locking ring of mixing funnel by
pressing release lever anti-clockwise and
pull out mixing funnel leaving hose back
on (fig. 38).
• Remove sealing ring (fig. 39).
• Pull off the whipper wheel (fig. 39).
• Repeat procedure until all mixing funnels
have been removed.
Cleaning the powder trap
• Take hold of the small handle on the
powder trap and pull out (fig. 40).
• Separate front and rear parts.
• Soak both powder trap components in hot
water with cleaning agent.
• Rinse parts in clean hot water, dry and
relocate items in reverse order.
38 39 40
