Wolf 2 Series - Page 16

Electric Cooktop -2
Installation Information
2-8
*Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18” (457mm) above counter
top.
**Minimum dimension, but may be exceeded by up to 1/8” (3).
NOTE: Unit dimensions may vary to ±1/8” (3mm).
Counter top Cut-out Dimensions (CT36EU )
NOTE: For complete installation information, please refer to
the Installation Guide provided with the unit.
The CT36EU is designed to fi t a 39” (914mm) width base
cabinet with a 25” (635mm) deep counter top. Before
making the counter top cut-out, verify that the cooktop
will clear the side walls of the base cabinet below. A Wolf
36” (762mm) built-in single oven may be installed below
Model CT36EU. For this installation, unless the cabinets
are deeper than 24” (610mm), it is recommended that the
electrical supply be placed in the base cabinet to the right
of the oven. (See Figure 2-11 & 2-12)
NOTE: Locate the junction box within reach of the 48”
(1219 mm) conduit, and accessible when the cooktop unit
is installed.
NOTE: Do not block the cooling fan located at the bottom
of the cooktop. Minimum 6 1/4” (159mm) clearance is
required between countertop and any combustible surface
directly below the cooktop.
NOTE: International units must also take the extra space
required for the Terminal Box into consideration.

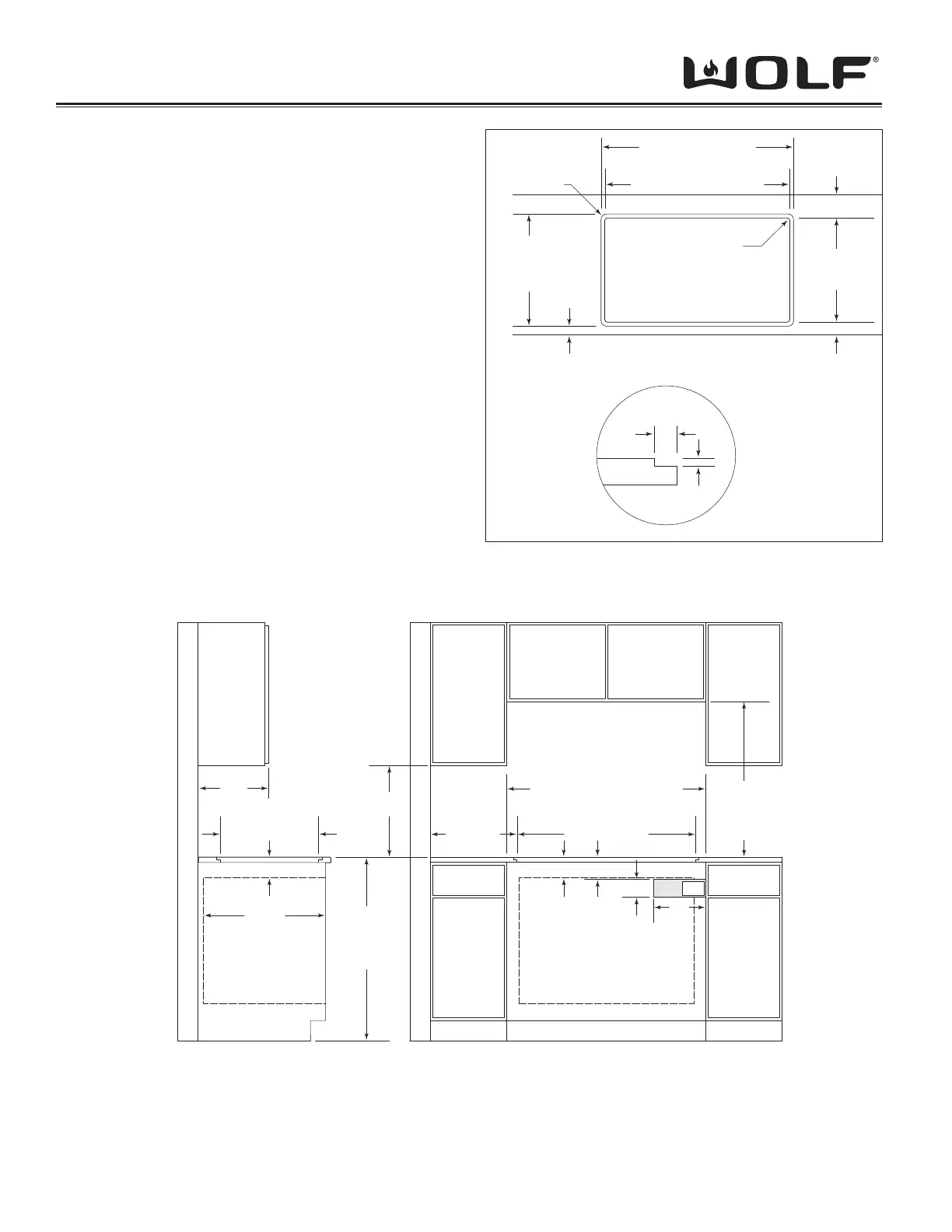

Figure 2-11 CT36EU Counter top Cut-Out Top View
Figure 2-12 CT36EU Counter top Cut-Out
18"
(457)
36-INCH OVEN OPENING
13" max
(330)
24" min
(610)
4" min (102)
E
10"
(254)
4" min (102)
TO OVEN
OPENING
3
1
/2" (89)
4
1
/2" (114)
SEE COUNTERTOP
CUT-OUT ABOVE
36” (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
2”* min (51)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
30” (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
39” (991)
RECOMMENDEDCABINET WIDTH
36” MIN (914)
SEE COUNTERTOP
CUT-OUT ABOVE
NOTE: For fl ush mount application, it is recommended to measure the glass before cutting the countertop to ensure a
proper fi t. Small variances may exist between the template and the cooktop.
1
5
/16 " (33)
RADIUS
2
7
/16 " (62)
1
9
/16 " (40)
7
/16 " (11) RADIUS
5
/16 "
(
8
)
7
/8"
(22) max
2"* (51)
36 1/8” ** (918)
RECESSED AREA FOR
FLUSH MOUNT INSTALLATION ONLY
34 3/8” (873)
COOKTOPCUT-OUT WIDTH
FRONT OF COUNTERTOP
21 1/8” ** (537)
RECESSED AREA
FOR FLUSH MOUNT
INSTALLATION ONLY
19 3/8” (492)
COOKTOP
CUT-OUT DEPTH
RECESSED AREA FOR
FLUSH MOUNT INSTALLATION ONLY
COUNTERTOP
PROFILE
