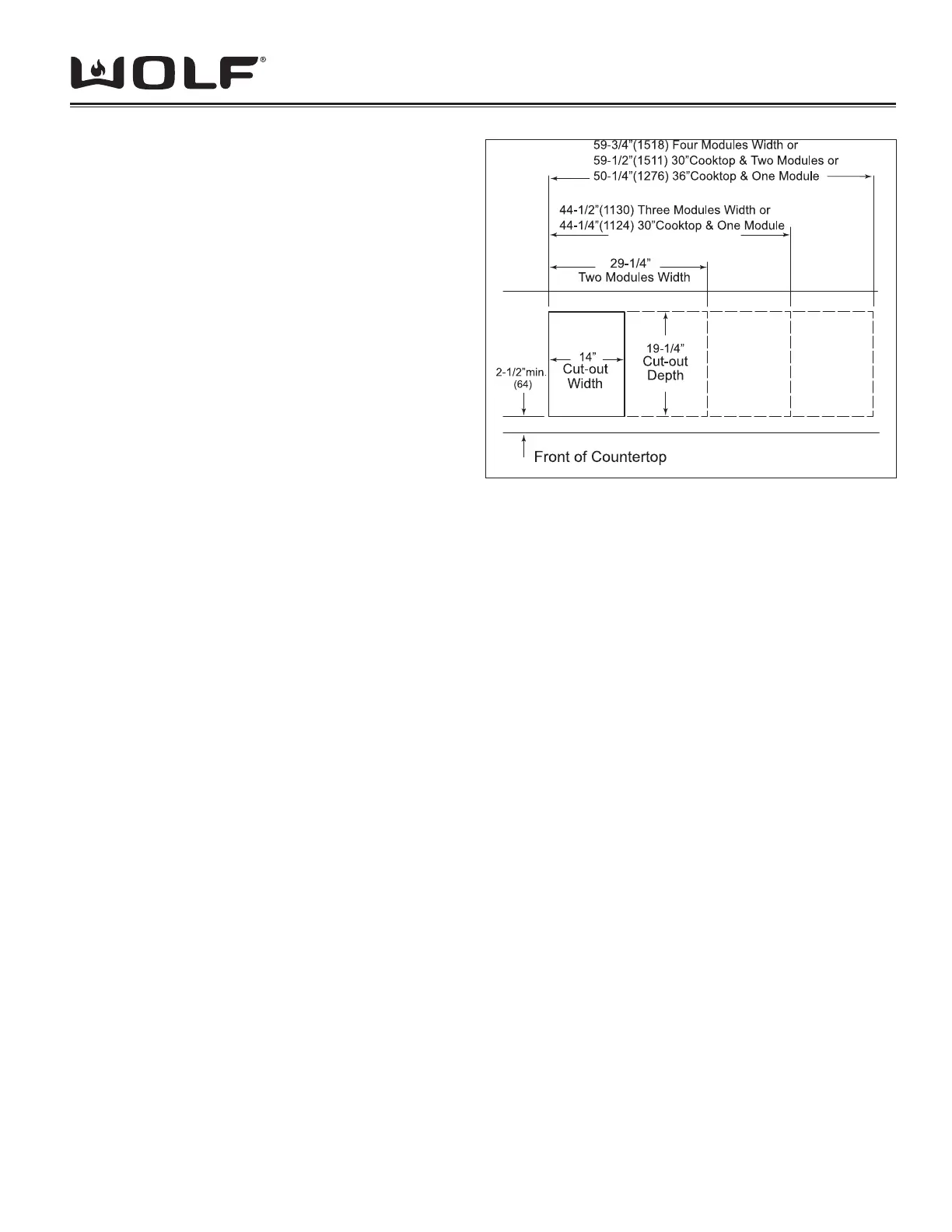

Figure 2-13 Multiple Cooktop Arrangements
Multiple Cooktop Installations
If the Framed Electric cooktop is to be used with any
combination of additional cooktop units or modules with
a fi ller strip, the cut-out width is calculated by adding
the corresponding units’ cut-out dimensions plus 1-1/4”
(32mm) for each additional unit. (See Figure 2-13)
NOTE: For Model CT15E, the cut-out width should be
increased from 13-3/8” (340mm) to 14” (356mm) when
installed with multiple units.
NOTE: When multiple units are installed side by side,
each unit must have its own separate recommended
electrical circuit.
NOTE: It is recommended that you operate the Wolf
Electric cooktop with either a Wolf cooktop ventilation
hood, downdraft system or Pro ventilation hood.
When two or more modules are installed together,
an integrated module fi ller strip (IFILLER/S) is
recommended. If a 30” (762mm) downdraft ventilation
system is also installed, an integrated module support
for downdraft ventilation (ISUPPORT) is also required.
Contact your Wolf dealer for information on these
accessory components.
NOTE: Unframed electric cooktops Models CT30EU and
CT36EU are not designed to be installed in combination
with other cooktop units.
Ventilation Options
NOTE: It is recommended that you operate the Wolf Electric cooktop with either a Wolf cooktop ventilation hood,
downdraft system or Pro ventilation hood. Contact your Wolf dealer for details.
The following is a list of ventilation units that can be used with the Electric cooktops.
Cooktop Wall Hood – 30” (762) or 36” (914) widths in classic stainless steel.
Cooktop Island Hood – 42” (1067) width in classic stainless steel.
Downdraft Ventilation System – 30” (762), 36” (914) or 45” (1143) widths, with top cover and control panel in classic,
platinum and carbon stainless steel fi nishes. 45” (1143) downdraft available in classic fi nish only. NOT for use with
Model CT30EU or Model CT36EU.
Pro Wall Hood – 22” (559), 24” (610) or 27” (686) depths and 30” (762) to 66” (1676) widths in classic stainless steel.
Pro Island Hood – 36” (914) to 66” (1676) widths in classic stainless steel.
Pro Hood Liner – available in widths to accommodate 36” (914) to 60” (1524) hoods.
NOTE: When installing a ventilation hood, refer to the specifi c requirements of the hood for the minimum dimension to
counter top.
