Electric Cooktop -2
Installation Information
2-10

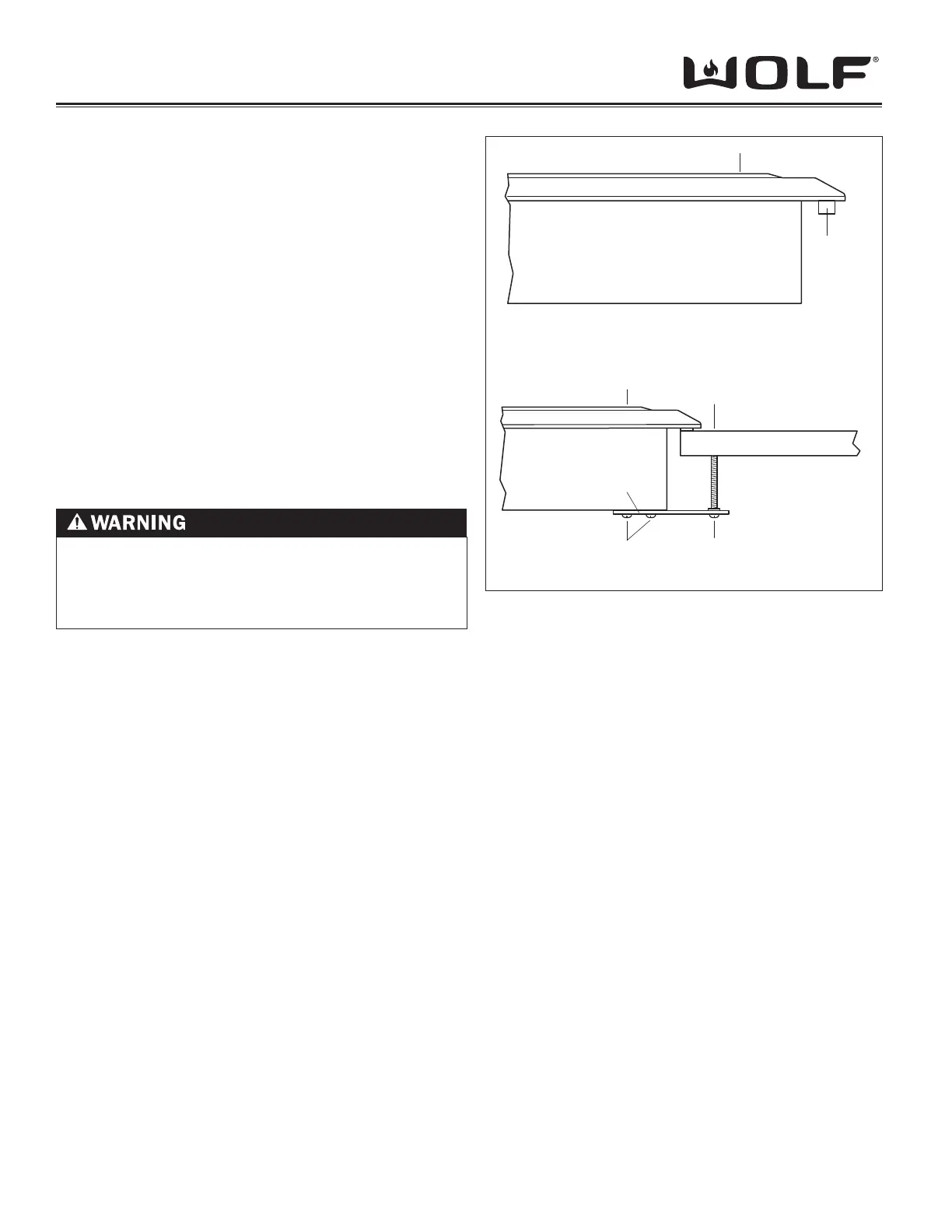

Figure 2-14 Cooktop Installation
Cooktop Installation
NOTE: For frameless installation, adhere the foam strip to
the outer edge of the glass, not the support frame.
NOTE: The materials required for a fl ush mount installation
are provided with the unit.
Attach the foam strip to the underside of the cooktop
frame. Gently lower the cooktop into the cut-out area in
the counter top and center. Check that the front edge of
the cooktop is parallel to the front edge of the counter top.
Check that all required clearances are met.
Attach the brackets to the bottom of the unit, as shown in
the illustration below. Install the clamping screws into the
bracket and tighten until the screws contact the underside
of the counter top. Do not overtighten the screws. (See
Figure 2-14)
NOTE: Do not seal the cooktop to the counter top. The
cooktop must be removable if service is necessary.
If the ceramic glass top of the cooktop is
broken, turn off power to the unit. Do not
operate until glass has been replaced by a
Wolf authorized service center.
Cooktop
Foam
Strip
Cooktop
Countertop
Bracket
Bracket
Screws
4” (102)
Clamping
Screw
