Wolf 30 - Cavity Component Removal and Installation; EXHAUST DUCT REMOVAL; EXHAUST DUCT INSTALLATION; HINGE REMOVAL

6 Remove the cover collar from the unit.
COVER COLLAR INSTALLATION
After installing the cover collar, install:
1
Skirt
2 Oven door
Install the Cover Collar
1 Thread the lower part of the cover collar over the hinges.
2 Push the top of the cover collar back.
3 Use a
3
/
16
" Allen wrench to install the door bumper over the
door switch.
4 Use a T-15 Torx bit to install the door bumper on the right
side.
5 Use a T-20 Torx bit to install the lower screws.
EXHAUST DUCT REMOVAL
To remove the exhaust duct, first remove:
1
Oven door
2 Skirt
3 Cover collar

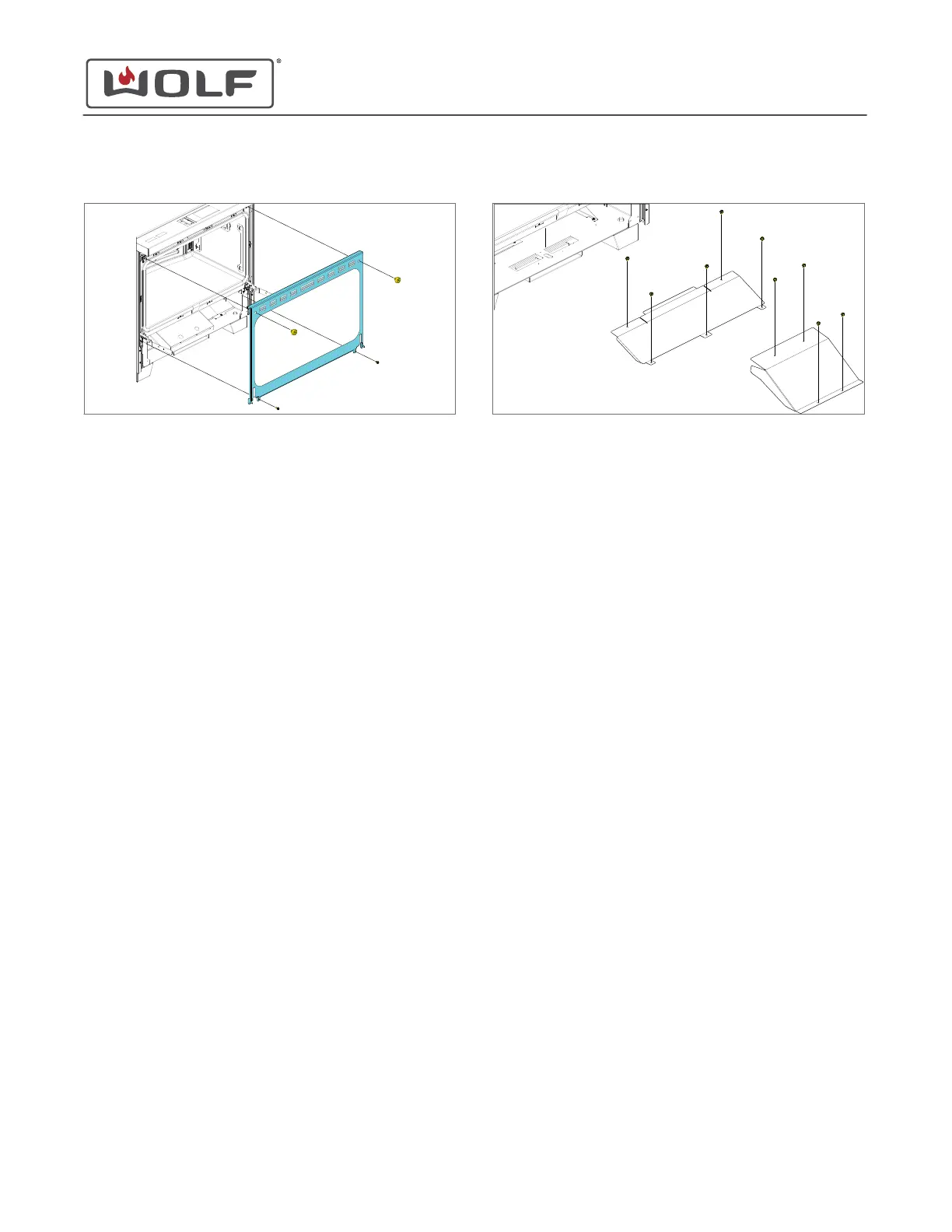

Remove the Exhaust Duct
1 Use a T-20 Torx bit to remove the front duct screws.
2 Remove the front duct from the unit.
3 Use a T-20 Torx bit to remove the bottom access cover
screws.
4
Remove the bottom access cover from the unit.
EXHAUST DUCT INSTALLATION
After installing the exhaust duct, install:
1
Cover collar
2 Skirt
3 Oven door
Install the Exhaust Duct
1 Place the bottom access cover into the unit.
2 Use a T-20 Torx bit to install the bottom access cover
screws.
3 Place the front duct into the unit.
4 Use a T-20 Torx bit to install the front duct screws.
HINGE REMOVAL
To remove the hinge, first remove:
1
Oven door
2 Skirt
3 Cover collar
Remove the Hinge
1 Use a T-15 Torx bit to remove the hinge screw.
30" and 36" Induction Range
Cavity Component Removal and Installation
REMOVE THE COVER COLLAR (continued)
