Wolf 30 - Diagnostics; GENERAL DIAGNOSTICS

DIAGNOSTICS
Diagnostics gives the service technician the ability to inspect and
test the unit.
DIAGNOSTIC TABS
Name Function
General
• Start self-test
• Reposition screen
• Change model
• Test screen
Faults
• Fault code
• Fault name
• Odometer - time that error occurred
• Clear faults
Statistics
• Power cycles
• Power-on time (in minutes)
• Standby time (in minutes)
• Oven cooking time (in minutes)
Control
• Relay status
• Bake
• Broil
• Lamp
• Conv. left element and fan
• Conv. right element and fan
• Door lock
• Conv. left fan
• Conv. right fan
• Cooling fan with RPM
Sensors Two screens.
• PCM temp
• PCM voltage
• PCM frequency
• RTD temp
• Probe temp
• Oven door
• Door lock
GENERAL DIAGNOSTICS

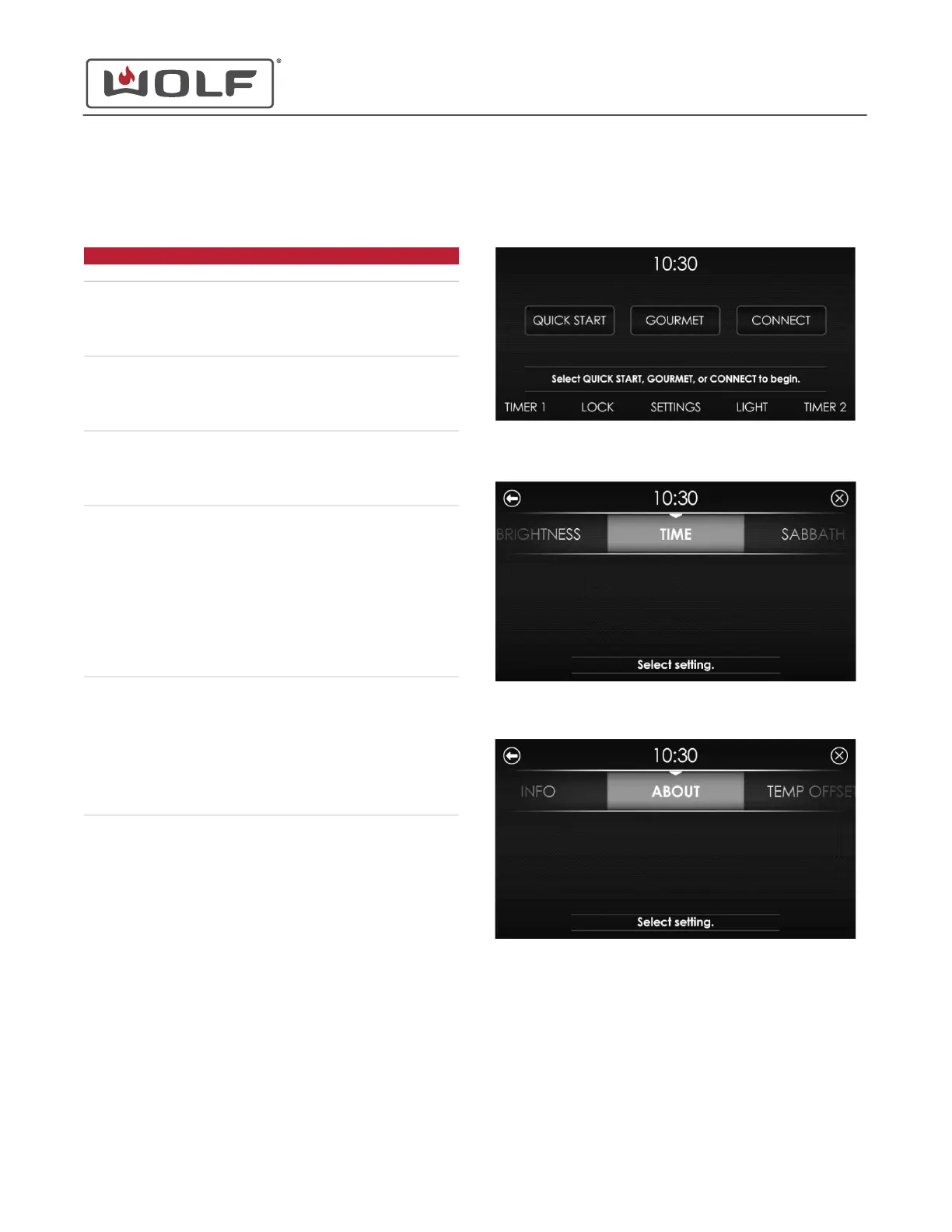

1 Touch the time on the display. The Home screen appears.
2 Touch Settings. The Settings screen appears.
3 Scroll to About on the UIM. Touch About. The About screen
appears.
