2 Remove the two-burner generator assembly from the
generator mounting support.
GENERATOR ASSEMBLY INSTALLATION
After installing the generator assembly, install:
1
Generator plate
2
Coil assembly
3
Glass assembly
4
Cooktop
Then
install the unit
.
Install the Three-Burner or Four-Burner Generator Assembly
1 Connect the power wire connectors. Use a T-20 Torx bit or
flat-blade screwdriver to tighten the terminal block screws.
2 Turn the three-burner or four-burner generator assembly
over.
3 Place the three-burner or four-burner generator assembly
into the generator support.
4 If there is a two-burner generator assembly, connect the
wire connectors and wire harnesses to the three-burner or
four-burner generator assembly.
5 Install the wire harness connector into the generator
support.
Install the Two-Burner Generator Assembly
1 Place the two-burner generator assembly into the generator
mounting support.
2 Connect the wire connectors and wire harnesses to the
two-burner generator assembly.
BULLNOSE REMOVAL
WARNING
Disconnect the product from the power source
before starting this procedure.
To remove the bullnose, first
uninstall the unit
. Then remove:
1
Cooktop
2
Oven door
3
Skirt
4
Cover collar

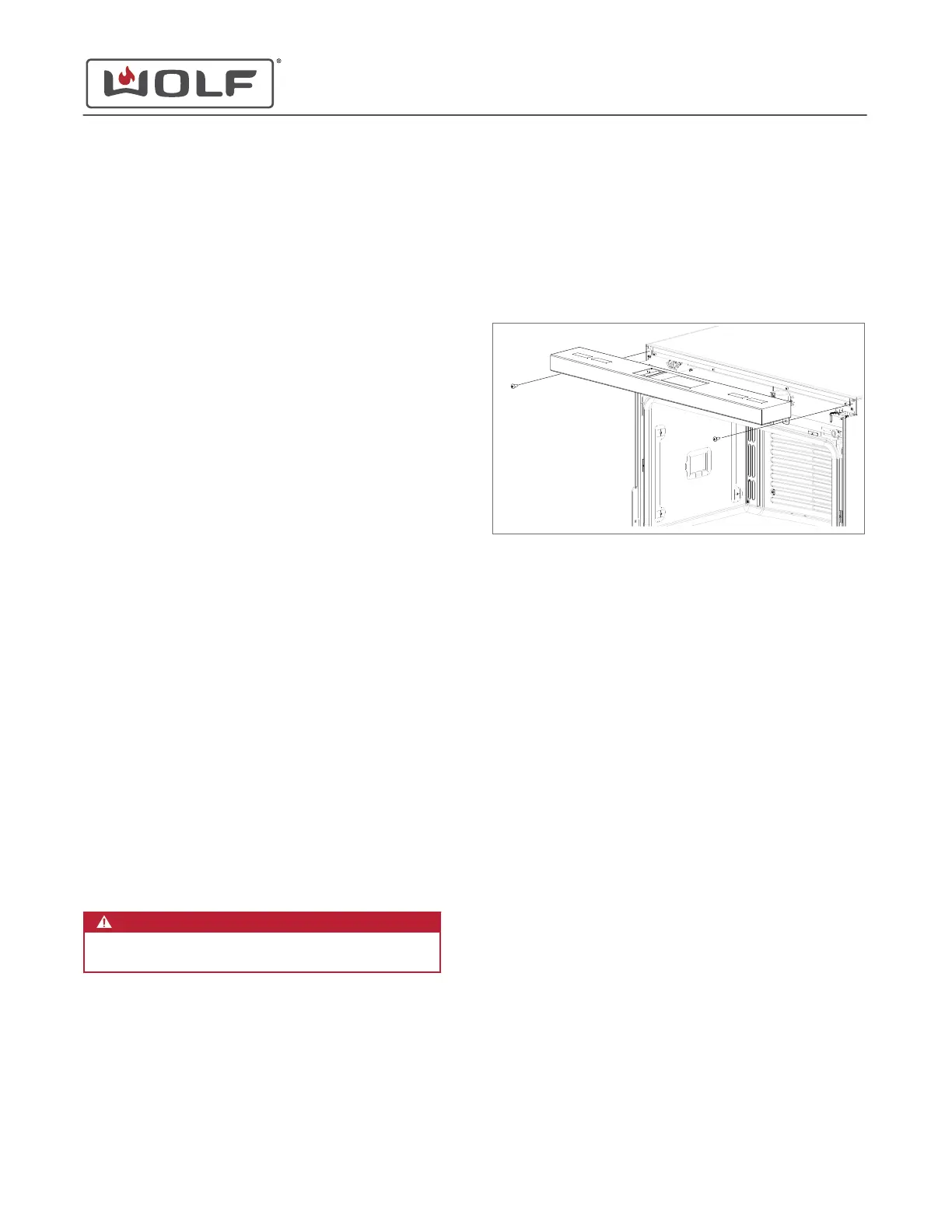

Remove the Bullnose
1 Disconnect the wire harness from the UIM wire harness.
2 Use a T-20 Torx bit to remove the bullnose mounting
screws.
3 Lift the bullnose up off of the shoulder screws.
4 Remove the bullnose from the unit.
BULLNOSE INSTALLATION
After installing the bullnose, install:
1
Cooktop
2
Cover collar
3
Skirt
4
Oven door
Then
install the unit
.
Install the Bullnose
1 Place the bullnose onto the shoulder screws, then press
down.
2 Use a T-20 Torx bit to install the bullnose mounting screws.
3 Connect the wire harness to the UIM wire harness.
30" and 36" Induction Range
Cooktop Component Removal and Installation
REMOVE THE TWO-BURNER GENERATOR ASSEMBLY (continued)
